Detailed Specifications

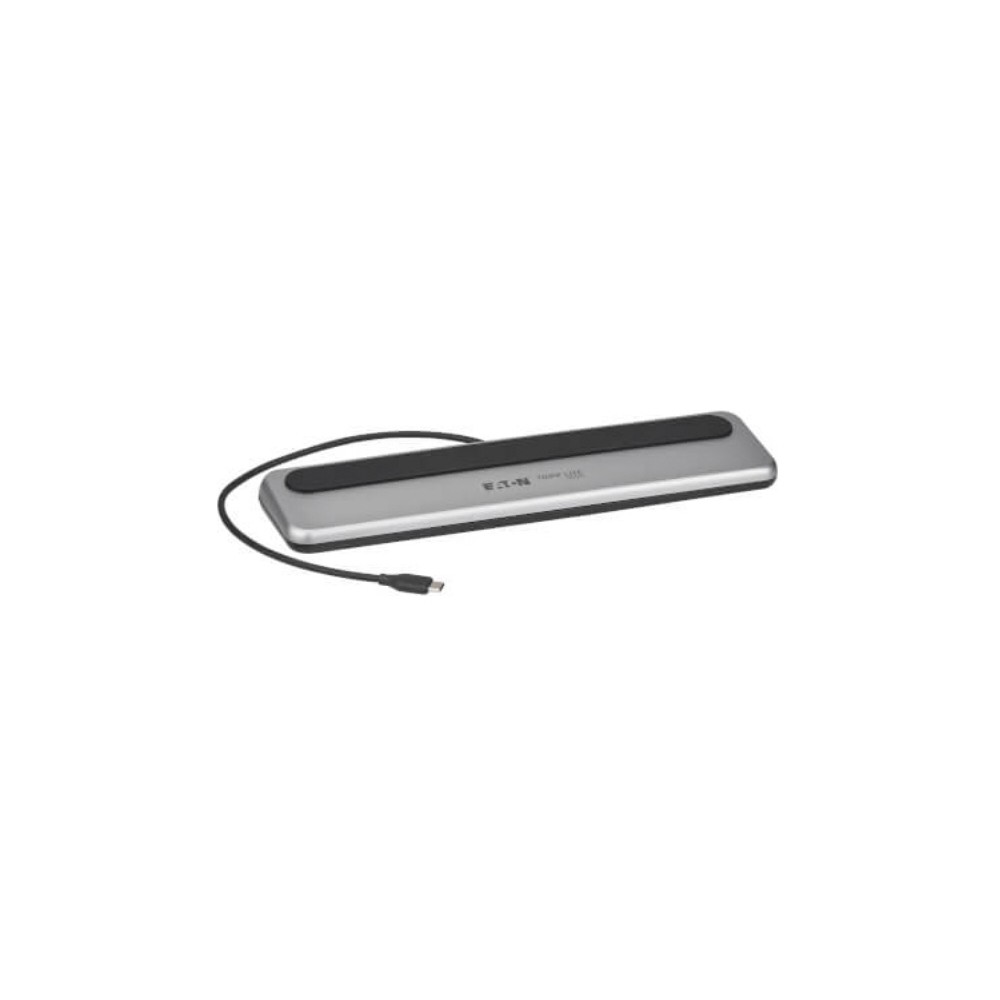

Eaton U442-DOCK7D-2 USB-C Triple-Display Docking Station compatible Tripp Lite
Overview :
The Eaton U442-DOCK7D-2 is a Tripp Lite by Eaton USB-C docking station designed to expand a compatible laptop or computer into a multi-display workstation. It supports up to three external monitors, using two HDMI outputs and one DisplayPort output. The dock supports up to 4K at 60 Hz over HDMI and up to 8K at 30 Hz over DisplayPort, with HDR and HDCP 2.3 support.
The docking station combines display connectivity, USB data ports, Gigabit Ethernet, audio and SD/microSD card connectivity in a single USB-C connection. Its USB ports support data rates up to 10 Gbps, while the USB-C Power Delivery input provides up to 100W, with up to 85W available for charging the connected host device and 15W allocated to powering the dock.
The U442-DOCK7D-2 is suitable for business workstations, home offices, education environments, remote workstations and other deployments requiring multiple displays and expanded peripheral connectivity from a USB-C laptop.
Key Features :
- USB-C docking station with triple-display support
- Supports up to 3 external monitors
- Two HDMI outputs and one DisplayPort output
- Supports HDMI up to 4K at 60 Hz
- Supports DisplayPort up to 8K at 30 Hz
- HDR and HDCP 2.3 support
- USB-A and USB-C data ports
- USB 3.2 Gen 2 data transfer up to 10 Gbps
- Gigabit Ethernet connectivity
- SD and microSD card slots
- 3.5 mm audio connectivity
- Up to 100W USB-C Power Delivery
- Up to 85W host charging
- DisplayPort Alt Mode support
- Mirror and extended display modes
- Built-in cable management
- Compatible with Windows laptops, Chromebooks and other USB-C devices
- 3-year limited worldwide warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | U442-DOCK7D-2 |
| Product Type | USB-C Docking Station |
| Host Connection | USB-C |
| Number of Monitors Supported | 3 |
| Video Outputs | 2 x HDMI, 1 x DisplayPort |
| DisplayPort Specification | DisplayPort 1.4 |
| Maximum DisplayPort Resolution | 7680 × 4320 @ 30 Hz |
| Maximum HDMI Resolution | 4096 × 2160 @ 60 Hz |
| Supported Resolutions | 720p, 1080p, 4K, 8K |
| HDR Support | Yes |
| HDCP | HDCP 1.4 / HDCP 2.3 |
| USB Data Ports | USB-A and USB-C |
| USB 3.2 Gen 1 | Up to 5 Gbps |
| USB 3.2 Gen 2 | Up to 10 Gbps |
| USB Power Delivery | PD 3.0 |
| Maximum PD Input | 100W |
| Host Charging | Up to 85W |
| Dock Power Allocation | 15W |
| USB-A Charging | 5V / 1.5A (7.5W) |
| USB-C Charging | 5V / 1.5A (7.5W) |
| Ethernet | RJ45 Gigabit Ethernet |
| Network Speeds | 10/100/1000 Mbps |
| Audio | 3.5 mm |
| Memory Card Slots | SD and microSD |
| Display Technology | DisplayPort Alt Mode, DSC, MST |
| Color Depth | Up to 48-bit Deep Color |
| Chroma Subsampling | 4:2:0, 4:2:2, 4:4:4 |
| Power Source | USB / Bus Powered |
| Cable Length | Up to 4 ft (1 m) |
| Material | ABS + PC + TPE |
| Color | Black / Gray |
