Detailed Specifications

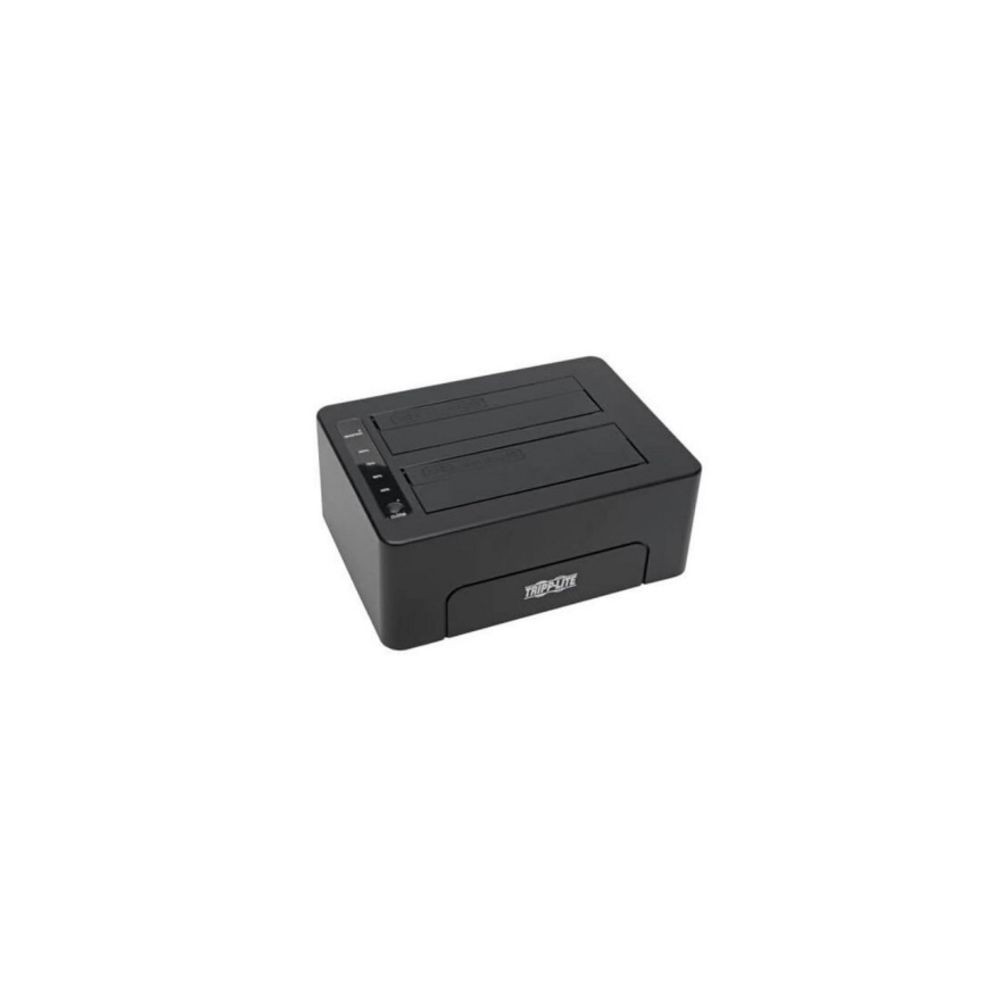

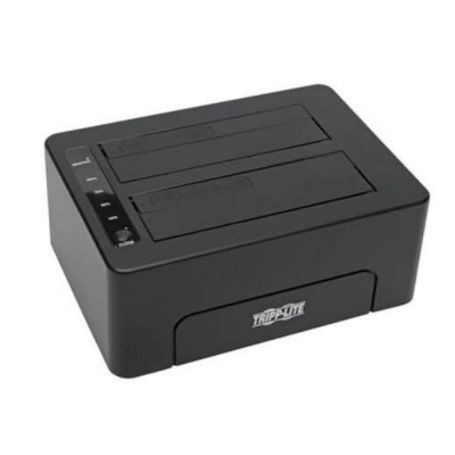

Eaton U339-002 Tripp Lite USB 3.0 Dual SATA Hard Drive Docking Station with Cloning
Overview
The Eaton U339-002 is a Tripp Lite by Eaton USB 3.0 SuperSpeed to dual SATA external hard drive docking and cloning station. It allows two 2.5-inch or 3.5-inch SATA HDDs or SSDs to be connected simultaneously to a computer through USB. The docking station supports SATA III drives up to 6TB according to the model-specific documentation.
The Tripp Lite U339-002 also provides offline drive cloning, allowing data to be duplicated from one SATA drive to another without connecting the docking station to a host computer. USB 3.0 provides transfer rates up to 5 Gbps, with backward compatibility with USB 2.0 and USB 1.1.
The docking functionality is compatible with Windows, Mac, and Linux systems. The package includes a 2.5-ft USB 3.0 device cable and an external 12V/3A power supply.
Key Features
- Tripp Lite by Eaton dual-bay USB 3.0 SATA docking and cloning station
- Supports two 2.5-inch or 3.5-inch SATA HDDs/SSDs simultaneously
- USB 3.0 SuperSpeed supports transfer rates up to 5 Gbps
- Offline cloning duplicates one SATA drive to another without a host computer
- Compatible with Windows, Mac, and Linux operating systems
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | U339-002 |
| Product Type | Tripp Lite USB 3.0 Dual SATA Docking/Cloning Station |
| Drive Bays | 2 |
| Supported Drive Size | 2.5 in. / 3.5 in. |
| Drive Type | SATA HDD / SSD |
| SATA Interface | SATA I / II / III |
| Maximum Drive Capacity | Up to 6TB per supported drive |
| Host Interface | USB 3.0 |
| Maximum USB Transfer Rate | 5 Gbps |
| USB Backward Compatibility | USB 2.0 / USB 1.1 |
| Cloning | Offline drive-to-drive cloning |
| Simultaneous Drive Access | Read/write to two drives |
| Operating Systems | Windows, Mac, Linux |
| Included USB Cable | 2.5 ft. USB 3.0 cable |
| External Power Supply | 12V DC, 3A |
| AC Input | 100-240V, 50/60Hz, 1.5A |
| Housing Material | ABS |
| Color | Black |
| Compliance | RoHS |
| Warranty | Not verified from current model-specific documentation |
