Detailed Specifications

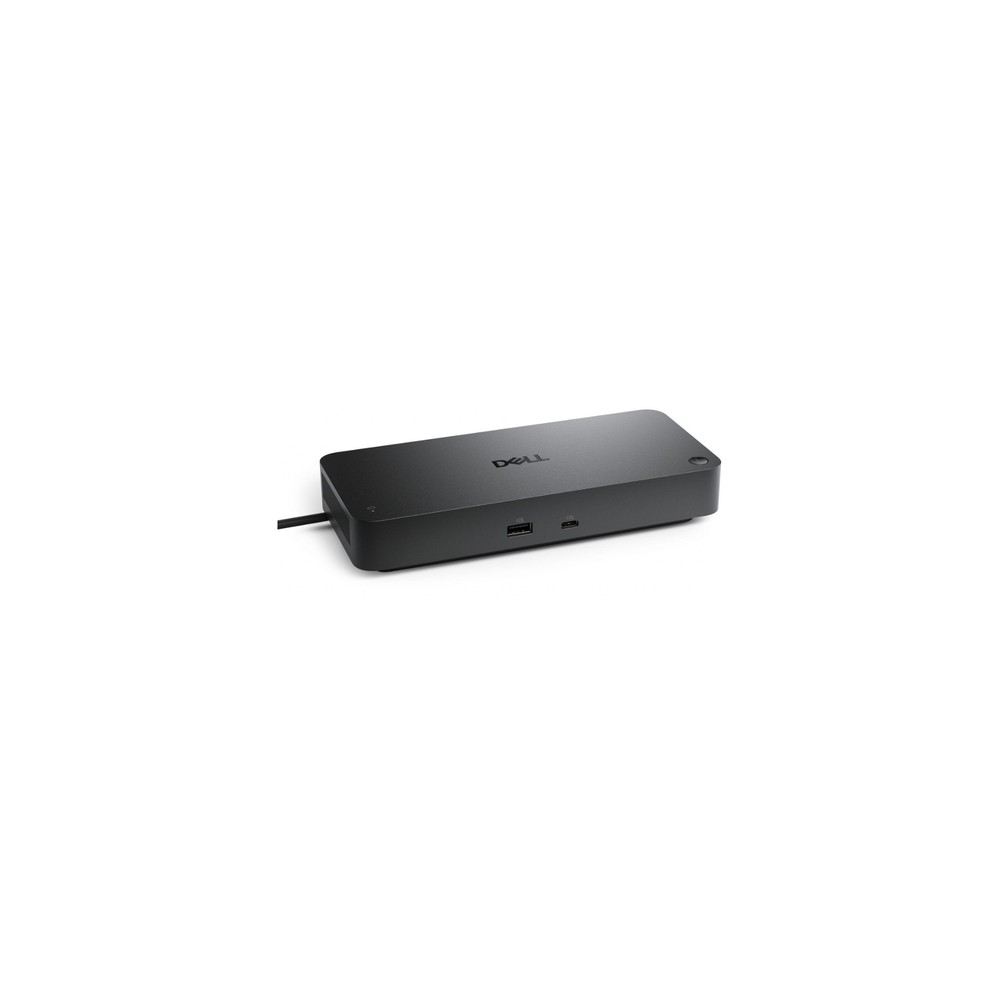

Dell DELL-SD25TB5 Pro Thunderbolt 5 Smart Dock with 300W Power Delivery
Overview :
The Dell SD25TB5 (Pro Thunderbolt 5 Smart Dock) is a high-performance, enterprise-grade docking station designed to maximize the productivity of AI PCs and high-end workstations. As the industry's first Thunderbolt 5 smart dock, it provides up to 80Gbps of bi-directional bandwidth (and up to 120Gbps for video-intensive tasks), enabling it to drive up to four 4K 120Hz displays simultaneously. It is primarily utilized by IT administrators and creative professionals who require elite multi-monitor support and centralized remote management without a host PC connection.
Technical capability is anchored by its massive 300W Power Delivery to Dell systems (up to 240W for non-Dell systems), making it one of the few docks capable of powering high-performance gaming laptops and mobile workstations through a single cable. The "Smart" designation refers to its integrated Dell Device Management Console (DDMC) compatibility, which allows IT departments to update firmware and manage docks over Wi-Fi, regardless of whether a laptop is connected. It features a modern port array, including DisplayPort 2.1 and HDMI 2.1, alongside a 2.5GbE RJ45 port for high-speed networking.
Deployment is optimized for the hybrid and secure enterprise environment, featuring WPA-3 192-bit encryption for management communication and tamper-resistant hardware-based encryption. The dock includes an ambidextrous 32-inch cable that can be routed from either side of the unit to fit any desk layout. While it is the ultimate choice for high-bandwidth AI-ready workstations, users with standard productivity laptops may find the Dell WD22TB4 or SD25TB4 more suitable for their performance requirements.
Key Features :
Thunderbolt 5 Technology: Provides bi-directional speeds up to 80Gbps for data and video.
Massive 300W Power Delivery: Sufficient for high-performance Dell AI PCs and workstations.
Quad 4K 120Hz Support: Drive up to four high-resolution displays at high refresh rates.
Smart Remote Management: Manage and update firmware over Wi-Fi via DDMC without a PC.
Enterprise Security: Features WPA-3 192-bit encryption and 2.5GbE wired networking.
Specifications :
| Specification | Details |
| Brand | Dell |
| Model Number | SD25TB5 |
| Product Type | Thunderbolt 5 Smart Docking Station |
| Host Interface | Thunderbolt 5 (USB-C) |
| Max Power Delivery | 300W (Dell Systems) / 240W (Non-Dell) |
| Max Resolution | Up to 8K @ 60Hz (Single) / 4x 4K @ 120Hz |
| Video Interfaces | 2x DP 2.1, 1x HDMI 2.1, 1x USB-C MFDP 2.1, 2x TBT 5 |
| USB Ports | 4x USB-A 3.2 Gen 2 (10Gbps), 1x USB-C 3.2 Gen 2 |
| Networking | 2.5 Gigabit Ethernet (RJ45) |
| Management | Dell Device Management Console (Wi-Fi), Intel vPro AMT |
| Security | Kensington Slot, Noble Wedge Slot, WPA-3 Encryption |
| Power Adapter | 330W AC Adapter |
