Detailed Specifications

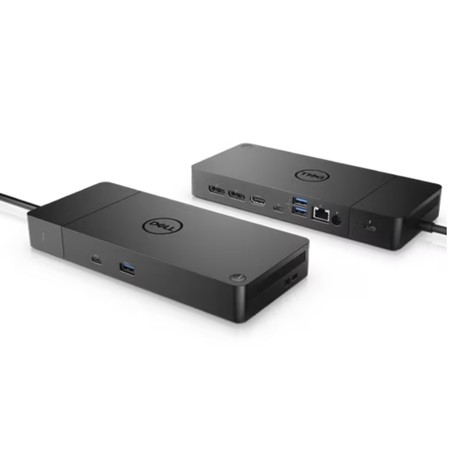

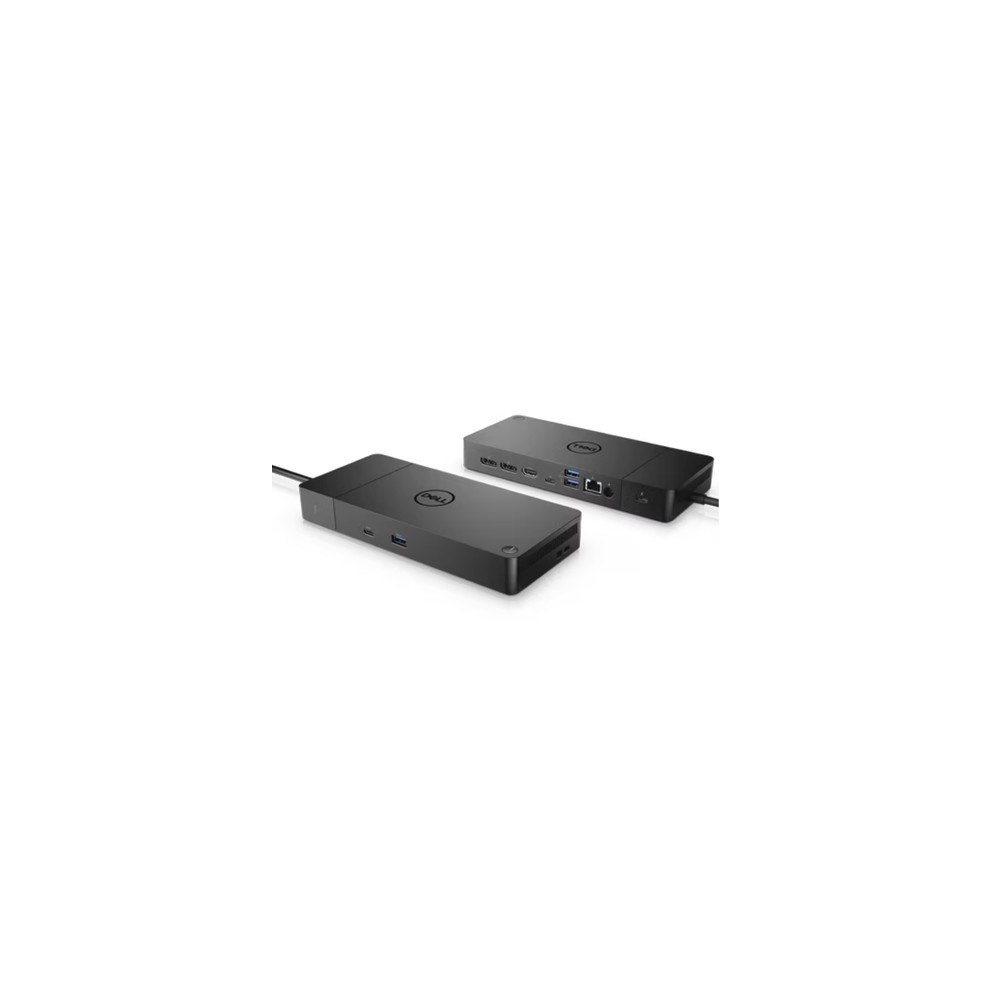

Dell DELL-WD19DCS High Performance Dual USB C Docking Station
Overview
The Dell WD19DCS is a dual USB-C enterprise docking station designed for high-power workstation and laptop environments. It is part of Dell's modular WD19 dock family and is optimized for Precision mobile workstations and compatible Latitude systems requiring high-bandwidth display and power delivery.
It supports up to 210W power delivery (via 240W adapter) and uses a dual USB-C connection to split power and data/video bandwidth for high-performance laptops. The dock enables multi-display setups including up to 3× 4K @ 60Hz or 1× 5K @ 60Hz, depending on system capability.
Connectivity includes DisplayPort 1.4, HDMI 2.0, multiple USB-A and USB-C ports, and Gigabit Ethernet. It also supports enterprise features such as PXE boot, MAC address pass-through, and Wake-on-LAN, making it suitable for managed IT deployments.
Deployment is ideal for engineering workstations, trading desks, and enterprise users running multi-monitor productivity setups. It is not intended for consumer plug-and-play simplicity, and requires compatible Dell systems for full dual-cable functionality and maximum power delivery.
Key Features
- Dual USB-C architecture enables high-bandwidth docking
- Up to 210W power delivery for workstation laptops
- Supports up to 3× 4K or 1× 5K display configurations
- Enterprise networking with PXE boot and MAC pass-through
- Modular design for VESA mount and flexible deployment
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number | WD19DCS |
| Product Type | Performance Docking Station |
| Power Delivery | Up to 210W (240W adapter) |
| Docking Interface | Dual USB-C |
| Video Output | DP 1.4, HDMI 2.0 |
| Max Resolution | 5120 × 2880 @ 60Hz |
| USB Ports | USB-A 3.2 Gen1, USB-C Gen2 |
| Ethernet | RJ-45 Gigabit LAN |
| OS Support | Windows 10/11, Ubuntu, RHEL |
| Enterprise Features | PXE Boot, MAC Pass-through, Wake-on-LAN |
| Security | Kensington / Noble Wedge lock slot |
| Cable Length | ~0.8 m dual USB-C cable |
| Form Factor | Desktop dock (modular design) |
