Detailed Specifications

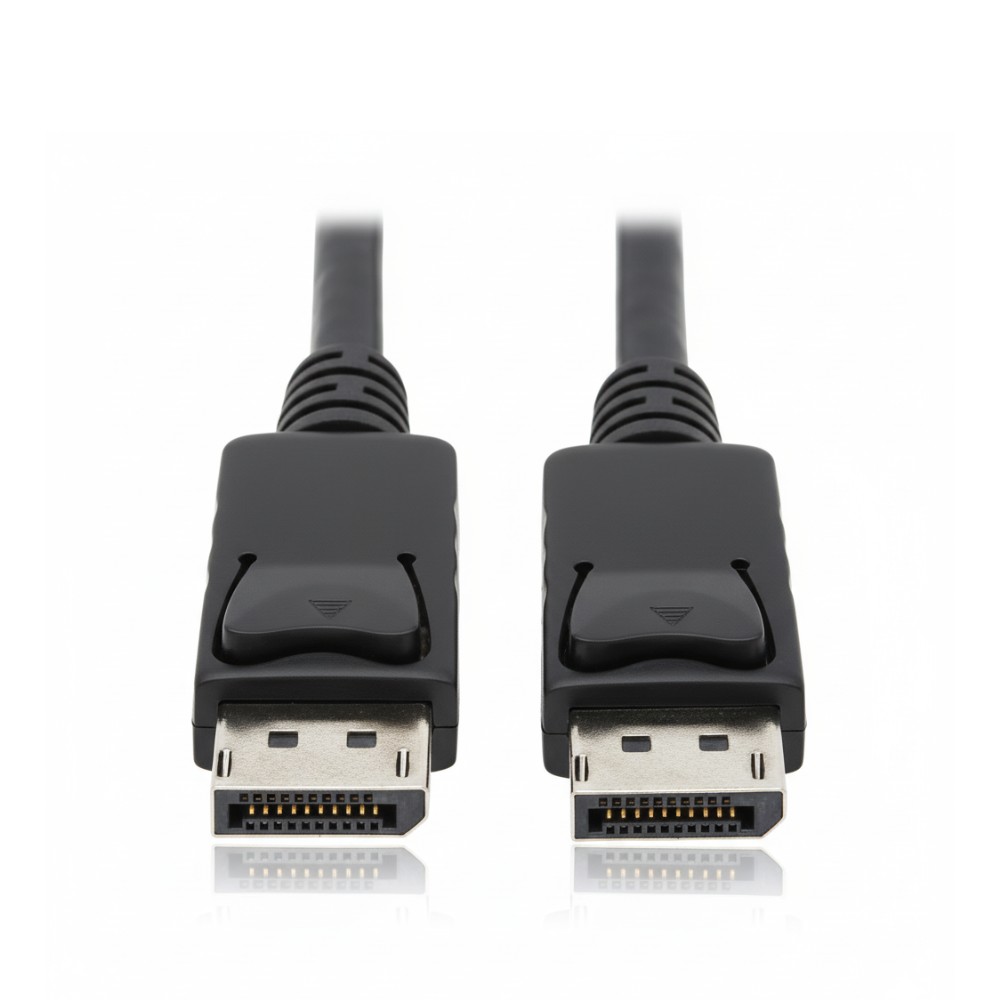

Eaton P580-006 - DisplayPort Cable 4K 60 Hz M/M
Overview
The Eaton P580-006 is a passive DisplayPort video/audio cable with latching male-to-male connectors designed to connect DisplayPort-capable sources (PCs, graphics cards, media players) to DisplayPort displays and monitors. It is deployed by AV engineers and IT infrastructure teams to ensure secure, high-definition digital video transmission in both workstation and digital signage installations.
This cable supports the DisplayPort 1.2 standard, enabling Ultra High Definition (UHD) 3840 × 2160 @ 60 Hz video as well as standard 1080p and legacy resolutions with integrated digital audio. The passive design means no signal conditioning or active amplification is present × it strictly conducts DisplayPort signals end-to-end.
The latching connector mechanism helps prevent inadvertent disconnection in structured AV racks, media cabinets, and workstation environments. The cable's 6 ft (1.83 m) length is suitable for typical rack or desktop routing without excess slack that could obstruct airflow or complicate cable management.
Physically configured with a PVC jacket and gold-plated contacts, this cable is intended for indoor use in controlled environments × offices, technical workspaces, AV racks, and classroom media installs. The black OCT-rated jacket fits standard cable management pathways in 19-inch racks and AV conduits.
A practical deployment scenario includes connecting a DisplayPort output on a desktop workstation to a DisplayPort input on a high-resolution monitor in a meeting room or control room display wall. This model is not suitable where extended distances beyond 6 ft are required without active signal conditioning or where unshielded runs pass through industrial EMI environments.
Key Features
Supports 4K UHD 3840 × 2160 @ 60 Hz resolution
DisplayPort 1.2 passive cable with latching connectors
Gold-plated contacts for improved conductivity
Ø ~6 mm PVC jacket for standard AV routing
6 ft (1.83 m) length for rack/desktop installations
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | P580-006 |
| Product Type | DisplayPort Cable (M/M) |
| Cable Standard | DisplayPort 1.2 |
| Connector A | DisplayPort (Male) |
| Connector B | DisplayPort (Male) |
| Max Resolution | 3840 × 2160 @ 60 Hz (4K) |
| Color Depth | 24-bit True Color |
| Contact Plating | Gold |
| Cable Length | 6 ft (1.83 m) |
| Cable Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Outer Diameter | 6.0 mm |
| Operating Temp | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temp | −40 °C to 70 °C |
| Compliance | RoHS, WEEE, REACH |
