Detailed Specifications

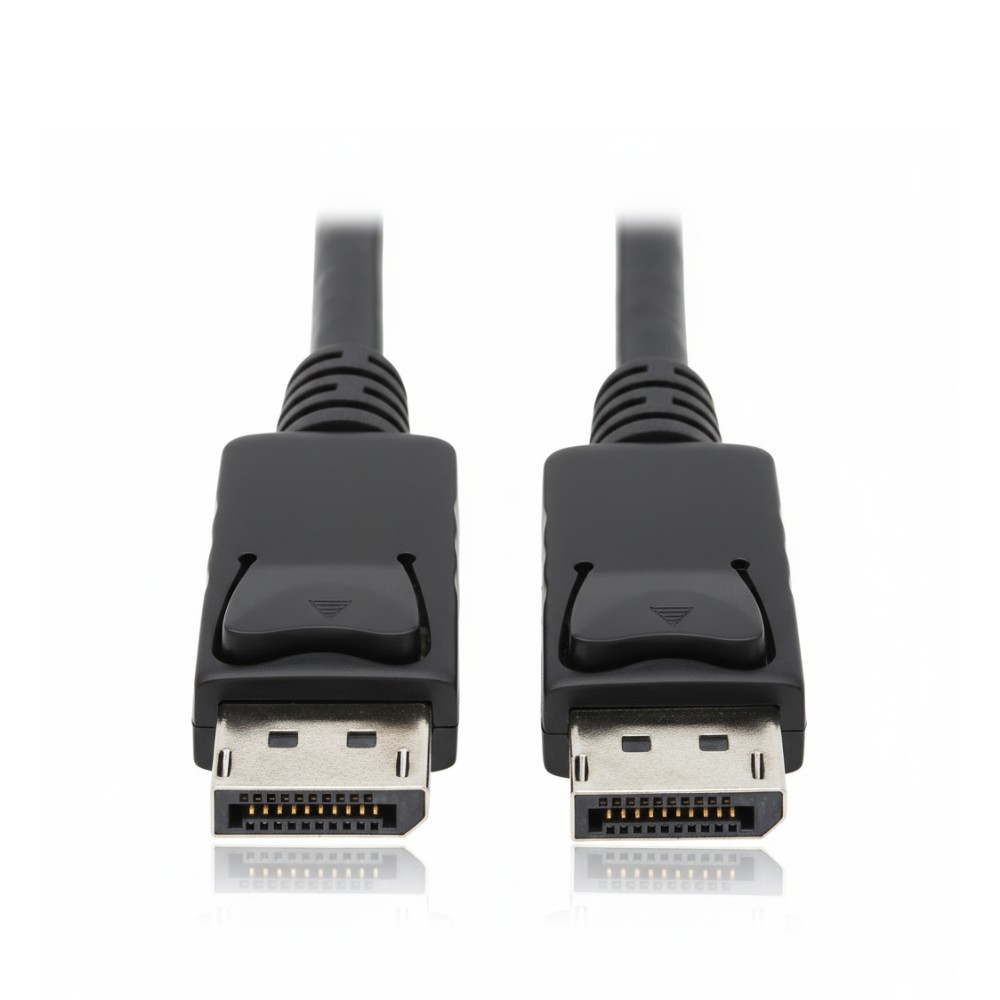

Eaton P580-010 - DisplayPort Digital Video Audio Cable
Overview
The Eaton P580-010 is a 10-foot DisplayPort to DisplayPort digital video/audio cable used to connect DisplayPort-equipped sources (like servers, workstations, or graphics cards) to DisplayPort monitors or display interfaces. It is typically deployed in rack or desk-mounted IT systems where high-resolution digital display signals are required without additional converters or adapters. This is a passive cable assembly × it does not include signal conversion or active electronics.
The cable adheres to the DisplayPort v1.2 standard, carrying both video and audio signals over a single link. With shielded conductors and molded latching connector housings, it maintains signal integrity and physical retention in environments with vibration or cable movement.
This cable is best suited for connecting servers, workstations, kiosks, and digital signage to native DisplayPort displays in data centers, control rooms, or engineering labs. It can be routed within racks or cable trays along with other structured cabling.
It integrates into typical AV and video distribution paths without requiring power or complex management; its design focuses on reliable point-to-point signal transmission. This product should not be used where signal extension beyond 10 ft without active buffering is required or across incompatible interface types (e.g., HDMI/DVI without adapters).
Key Features
- 10 ft DisplayPort Male to DisplayPort Male cable
- Supports DisplayPort v1.2 digital audio/video signals
- Shielded round cable with latching connectors
- Up to UHD 4K×2K @ 60 Hz video support
- Black jacket, flexible routing for racks and desks
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | P580-010 |
| Product Type | DisplayPort Cable (Passive) |
| Connector Type (End A) | DisplayPort Male |
| Connector Type (End B) | DisplayPort Male |
| DisplayPort Standard Supported | v1.2 |
| Maximum Resolution | Up to 3840 × 2160 @ 60 Hz (4K) |
| Bandwidth | ~10.8 Gbps |
| Cable Length | 10 ft (3.05 m) |
| Jacket Color | Black |
| Shielding | Shielded |
| Housing | Molded PVC with latches |
| Product Weight | ~0.5 lb |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Compliance / Certifications | RoHS, REACH, CE |
| Warranty | Limited / Lifetime (varies by region) |
