Detailed Specifications

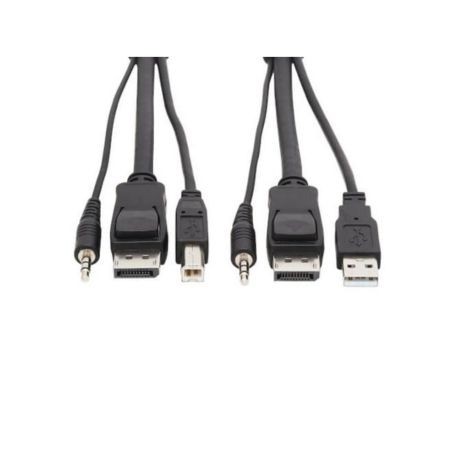

Eaton P783-006 Tripp Lite DisplayPort KVM Cable Kit
Overview:

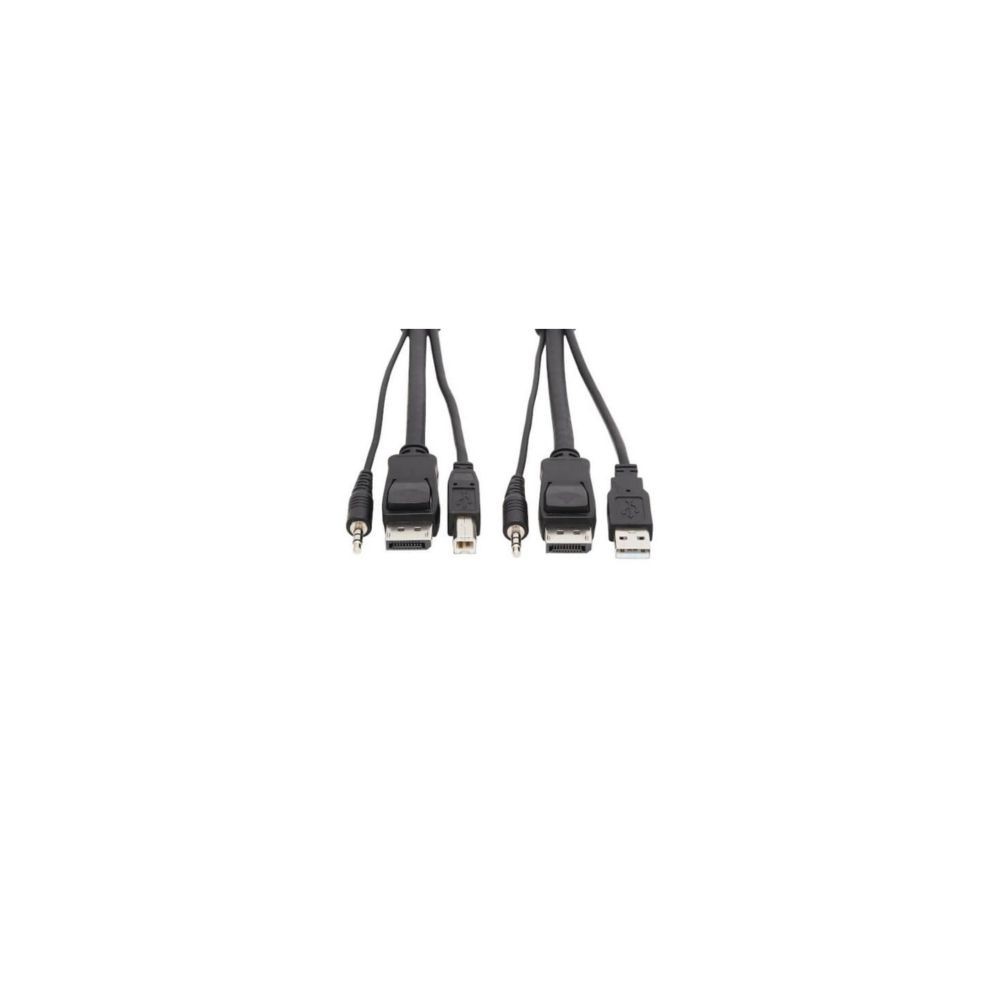

The Eaton P783-006 / Tripp Lite is a 3-in-1 DisplayPort KVM cable kit designed to connect a computer to compatible Tripp Lite KVM switches using DisplayPort video, USB and 3.5 mm audio connections. It combines multiple required connections into one cable kit to reduce cable clutter in KVM installations.
The kit supports DisplayPort 1.2 video, resolutions up to 3840 × 2160 (4K) at 60 Hz, and 4:4:4 chroma subsampling. The primary 3-in-1 KVM cable provides DisplayPort, USB and 3.5 mm audio connections with male connectors on both ends.
The 6-ft / 1.83 m kit includes the P783-006 3-in-1 cable, a P580-006 6-ft DisplayPort monitor cable and a U022-006 6-ft USB A-to-B cable. Eaton positions the kit for compatible KVM applications where a computer needs to connect to a Tripp Lite KVM switch and associated peripherals.
Key Features :
- 3-in-1 DisplayPort KVM cable kit combines DisplayPort, USB and 3.5 mm stereo audio connections for compatible KVM installations.
- 4K UHD support up to 3840 × 2160 at 60 Hz provides high-resolution DisplayPort connectivity for compatible systems.
- 4:4:4 chroma subsampling supports full-color-detail video output for compatible displays and KVM equipment.
- 6-ft / 1.83 m cable length provides practical reach between a computer and KVM switch in workstation and rack environments.
- Includes P580-006 DisplayPort and U022-006 USB A/B cables to provide the additional connections required for compatible KVM configurations.
Specifications :
| SpecificationDetails | |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite by Eaton |
| Model | P783-006 |
| Product Type | DisplayPort KVM Cable Kit |
| Cable Type | 3-in-1 KVM Cable Kit |
| Technology | DisplayPort |
| DisplayPort Specification | DisplayPort 1.2 |
| Video Resolution | Up to 3840 × 2160 @ 60 Hz |
| Chroma Subsampling | 4:4:4 |
| USB Specification | USB 2.0 |
| USB Data Rate | Up to 480 Mbps |
| Audio Connector | 3.5 mm Male |
| DisplayPort Connector | Male / Male |
| USB Connector | USB A Male / USB B Male |
| Cable Length | 6 ft / 1.83 m |
| Cable Color | Black |
| Included DisplayPort Cable | P580-006, 6 ft |
| Included USB Cable | U022-006, 6 ft |
| HDCP | 2.2 |
| Package Contents | 3-in-1 KVM Cable + DP Cable + USB Cable |
| Operating Temperature | 14° to 122°F / -10° to 50°C |
| Storage Temperature | 5° to 140°F / -15° to 60°C |
| Relative Humidity | 0–90%, Non-Condensing |
| Compliance | RoHS |
| Warranty | Limited Lifetime |
| UPC | 037332241610 |
