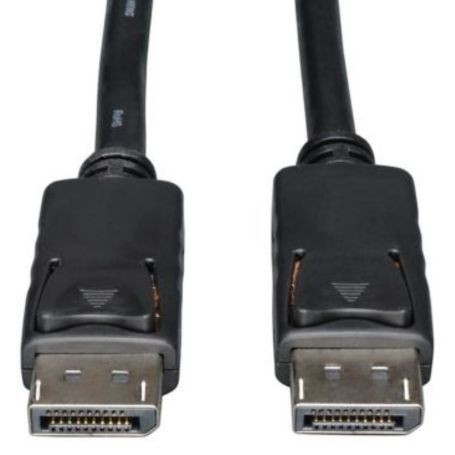

Eaton P580-015 Tripp Lite DisplayPort 1 2 Cable 15 ft 4K 60Hz M M
The Eaton P580-015 is a 15 ft DisplayPort 1.2 male-to-male cable for connecting compatible computers, monitors, projectors, and other DisplayPort-equipped A/V equipment. Its passive, bidirectional design carries digital video and audio through a single DisplayPort connection.
4K 60Hz DisplayPort Video
The P580-015 supports Ultra HD resolution up to 3840 x 2160 at 60 Hz, including 1080p. The cable supports HDCP 2.2 and 24-bit True Color, with 4:2:0 and 4:2:2 chroma subsampling supported according to the manufacturer's specifications.
15-Foot Reach
The 15 ft (4.57 m) length provides additional routing distance between a DisplayPort source and display without requiring a separate extension. This makes the cable useful for installations where the display is positioned farther from the computer or other source equipment.

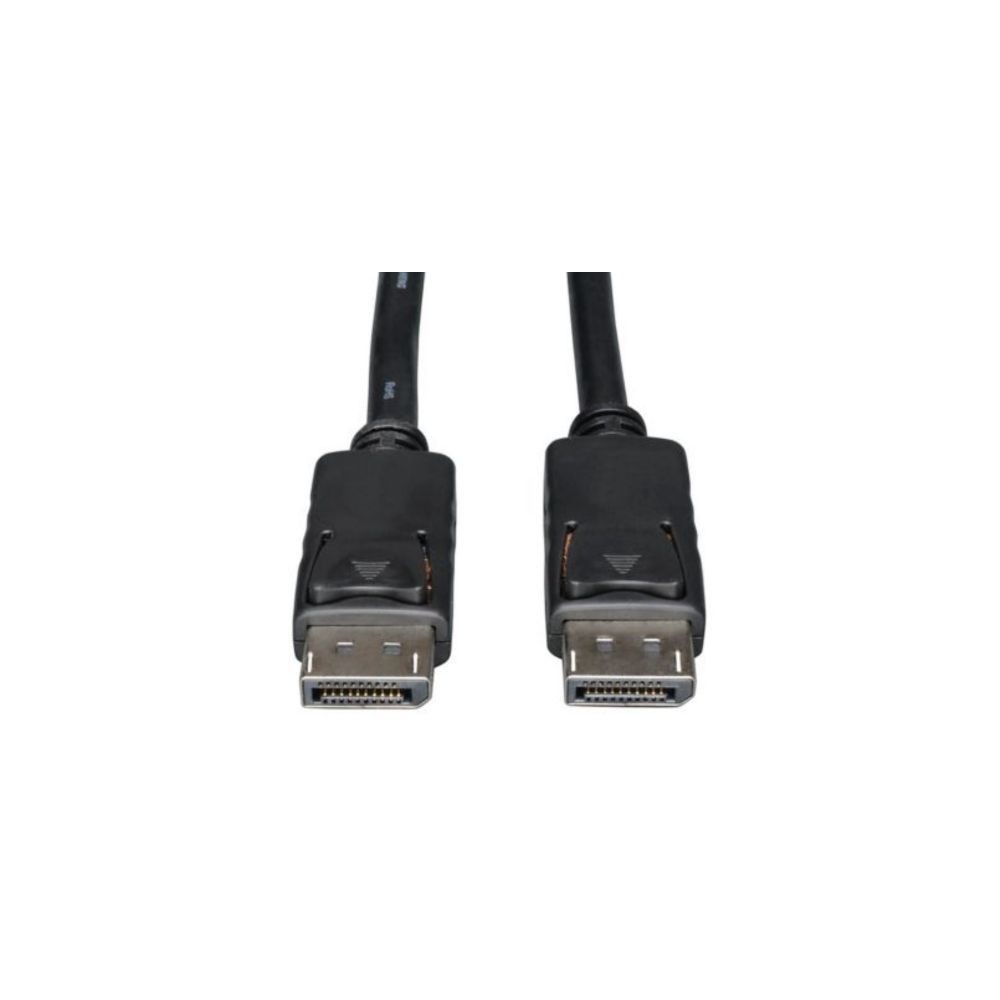

Latching Connectors
Both DisplayPort male connectors feature latching or gripping mechanisms to help keep the cable connected during normal installation and use. The cable has a shielded, round construction with a black PVC jacket.
Key Features
- 15 ft (4.57 m) DisplayPort 1.2 cable
- Passive and bidirectional signal transmission
- Supports 3840 x 2160 (4K) at 60 Hz
- Latching DisplayPort male-to-male connectors
- HDCP 2.2, 3D video, EDID, and MST support
DC Supplies Product Note
The P580-015 provides 15 ft of reach while retaining passive DisplayPort 1.2 operation, making it a practical longer-run option when 4K at 60 Hz is required but the 8K capabilities of newer DisplayPort 1.4 models are not needed.
Typical Applications
- Computer-to-monitor connections
- Conference-room displays
- Classroom and presentation systems
- Digital signage
- Desktop and workstation installations
- Home theater and multimedia systems
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-015 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.2 |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Cable Length | 15 ft (4.57 m) |
| Maximum Resolution | 3840 x 2160 (4K) @ 60 Hz |
| HDCP | 2.2 |
| Color Depth | 24-bit True Color |
| Chroma Subsampling | 4:2:0 / 4:2:2 |
| 3D Video | Supported |
| EDID Compatible | Yes |
| MST Support | Yes |
| Connector Style | Straight, latching/gripping |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Shielding | Shielded |
| Cable Outer Diameter | 7.3 mm |
| Minimum Bend Radius | 73 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Compliance | RoHS, REACH, WEEE |
| UPC | 037332145949 |
| Warranty | Lifetime limited warranty |
Package Contents
1 x Eaton Tripp Lite P580-015 DisplayPort monitor cable, 15 ft (4.57 m).
Frequently Asked Questions
What resolution does the P580-015 support?
The P580-015 supports up to 3840 x 2160 (4K) at 60 Hz, including 1080p.
Is the P580-015 an active cable?
No. The P580-015 is a passive, bidirectional DisplayPort cable.
Does the P580-015 support HDCP?
Yes. Eaton specifies HDCP 2.2 support.
Does the P580-015 have latching connectors?
Yes. Both DisplayPort male connectors use latching or gripping mechanisms.
How long is the P580-015?
The cable is 15 ft (4.57 m) long.
Is the P580-015 the same as the P580-015-V4?
No. The P580-015 is the DisplayPort 1.2 model rated for 4K at 60 Hz. The P580-015-V4 is a separate DisplayPort 1.4 model specified for 8K at 30 Hz.
