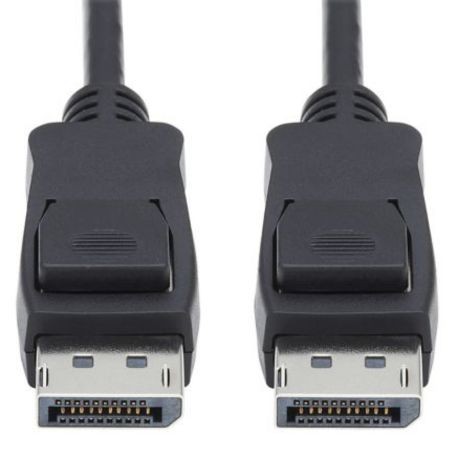

Eaton P580-003-V4 Tripp Lite DisplayPort 1 4 Cable 3 ft 8K 30Hz M M
The Eaton P580-003-V4 is a 3 ft DisplayPort 1.4 male-to-male cable for connecting compatible computers, monitors, projectors, televisions, and other digital A/V equipment. Its passive, bidirectional design supports DisplayPort 1.4 signals, while latching connectors help maintain a secure physical connection.
8K UHD Video with HDR
The P580-003-V4 supports UHD resolutions up to 7680 x 4320 (8K) at 30 Hz using 4:2:0 chroma subsampling. It also supports High Dynamic Range (HDR), HDCP 2.2, and 24-bit True Color for compatible source, display, and content combinations.
DisplayPort 1.4 Connectivity
Both ends feature full-size DisplayPort male connectors. The cable provides bidirectional signal transmission and supports digital audio and video over a single connection. It is plug-and-play and does not require software or drivers.

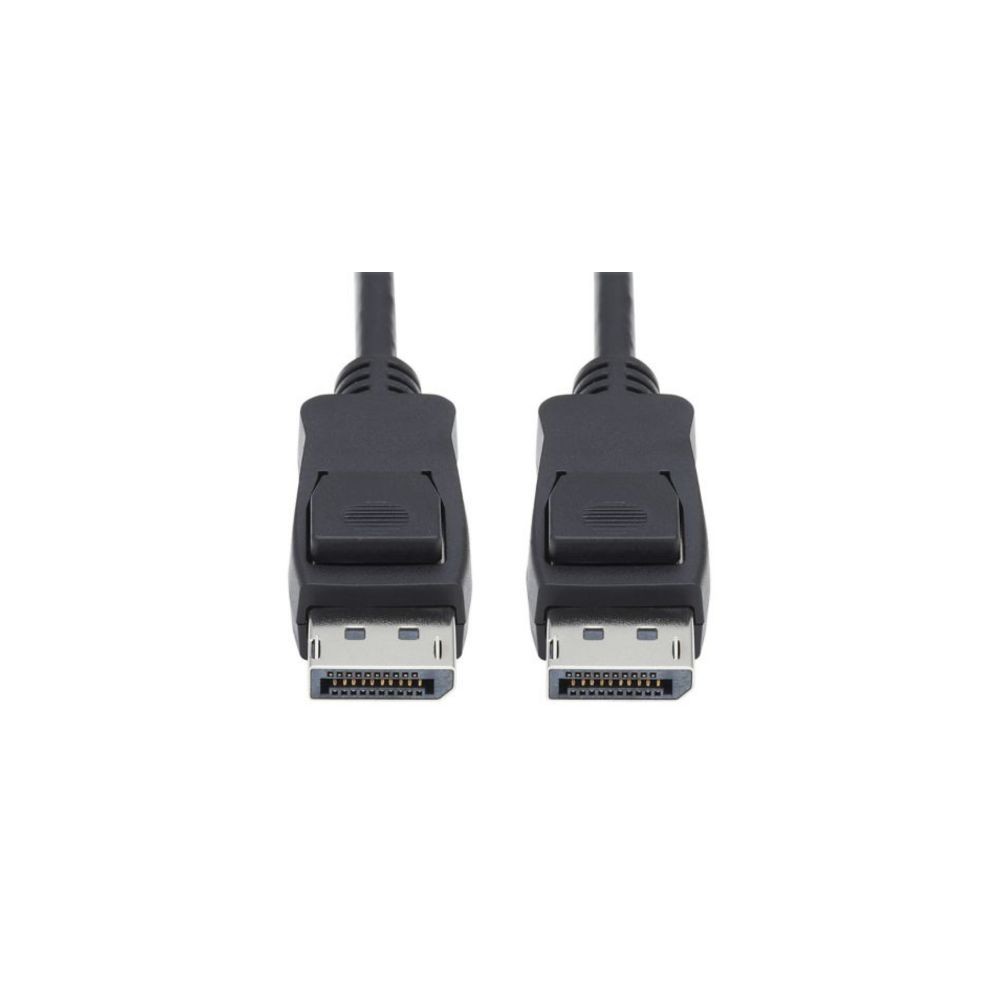

Latching Connectors
The DisplayPort connectors include latching mechanisms that help prevent accidental disconnection. This is useful for desktop, rack, conference-room, digital-signage, and other installations where maintaining the cable connection is important.
Key Features
- 3 ft (0.91 m) passive DisplayPort 1.4 cable
- Supports up to 8K (7680 x 4320) at 30 Hz with 4:2:0 chroma
- HDR and HDCP 2.2 support
- Latching DisplayPort male-to-male connectors
- Bidirectional digital audio and video transmission
DC Supplies Product Note
The 3 ft length is well suited to short source-to-display connections where keeping excess cable off a desk, conference table, or equipment rack is preferable; for 8K at 60 Hz with 4:4:4 chroma, Eaton offers the separate P580-003-8K6 model.
Typical Applications
- Computer-to-monitor DisplayPort connections
- 4K and 8K-capable display systems
- Conference-room A/V equipment
- Digital signage
- Home theater and media systems
- Gaming and workstation displays
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-003-V4 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.4 |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Cable Length | 3 ft (0.91 m) |
| Maximum Resolution | 7680 x 4320 (8K) @ 30 Hz |
| Chroma Subsampling | 4:2:0 |
| HDR Support | Yes |
| HDCP | 2.2 |
| Color Depth | 24-bit True Color |
| 3D Video | Supported |
| EDID Support | Yes |
| CEC Support | Yes |
| Connector Style | Straight, latching |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Outer Diameter | 6.8 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | 14° to 158°F (-10° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Compliance | RoHS, CE, REACH |
| Warranty | Lifetime limited warranty |
Package Contents
1 x Eaton Tripp Lite P580-003-V4 DisplayPort 1.4 cable, 3 ft (0.91 m).
Frequently Asked Questions
What resolution does the P580-003-V4 support?
The P580-003-V4 supports up to 7680 x 4320 (8K) at 30 Hz with 4:2:0 chroma subsampling.
Is the P580-003-V4 an active cable?
No. It is a passive, bidirectional DisplayPort cable.
Does the P580-003-V4 support HDR?
Yes. The cable supports HDR with compatible DisplayPort 1.4 source and display equipment.
Does it have locking or latching connectors?
Yes. Both DisplayPort male connectors have latching mechanisms to help prevent accidental disconnection.
How long is the P580-003-V4?
The cable is 3 ft (0.91 m) long.
What is the difference between P580-003-V4 and P580-003-8K6?
The P580-003-V4 is specified for 8K at 30 Hz with 4:2:0 chroma, while the P580-003-8K6 is the newer DisplayPort 1.4 model specified for 8K at 60 Hz with 4:4:4 chroma.
