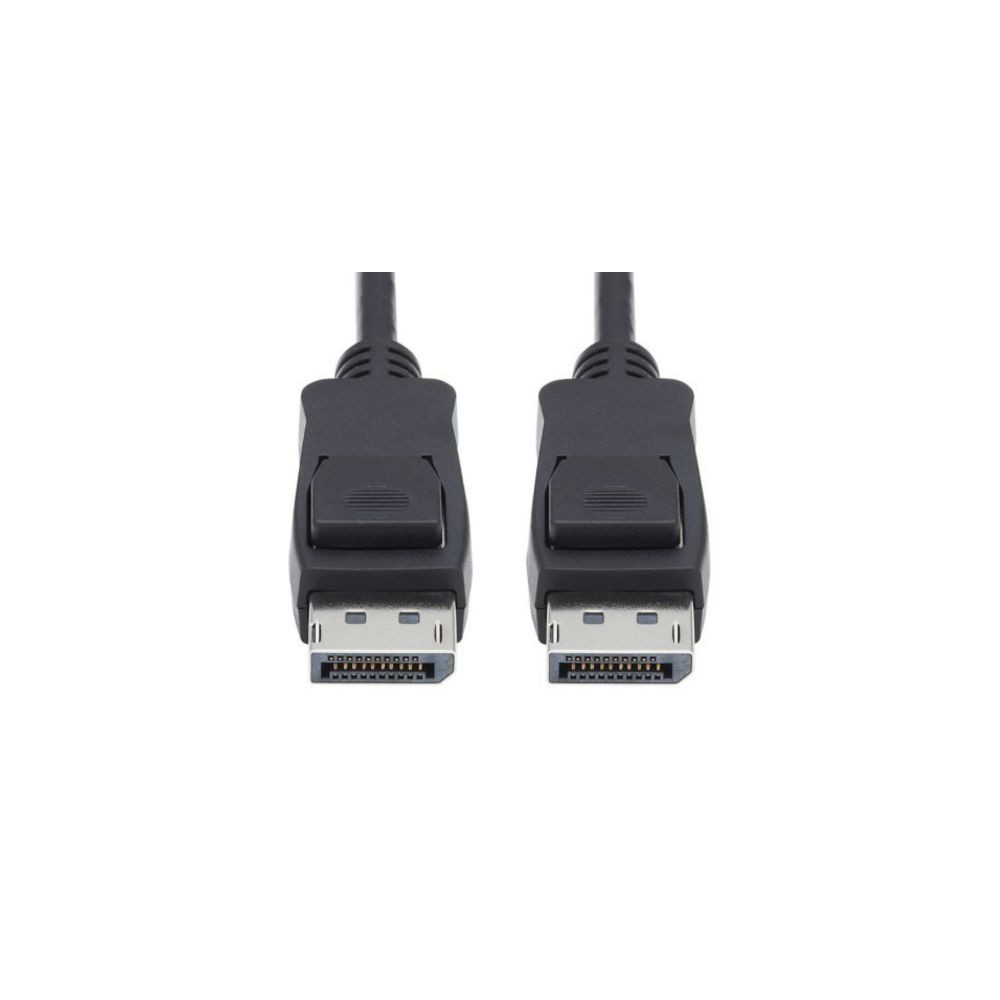

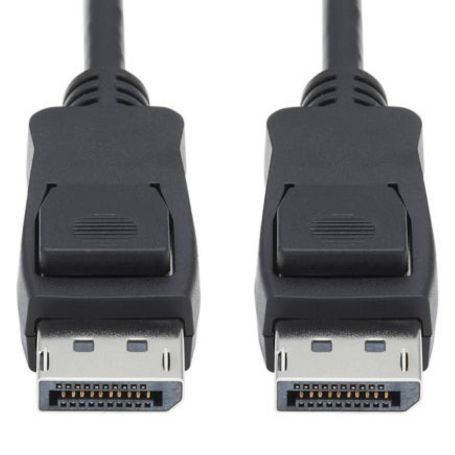

Eaton P580-010-V4 Tripp Lite DisplayPort 1 4 Cable 10 ft 8K 30Hz M M
The Eaton P580-010-V4 is a 10 ft DisplayPort 1.4 male-to-male cable designed for high-resolution digital video and audio connections. Its passive, bidirectional design supports DisplayPort 1.4 sources and displays while latching connectors help maintain a secure physical connection.
8K Video and HDR Support
The P580-010-V4 supports UHD resolutions up to 7680 x 4320 (8K) at 30 Hz with 4:2:0 chroma subsampling. It also supports High Dynamic Range (HDR), HDCP 2.2, 36-bit Deep Color, and 3D video for compatible equipment and content.
DisplayPort 1.4 Connectivity
Both ends use full-size DisplayPort male connectors. The cable provides bidirectional signal transmission and supports DisplayPort features including MST and EDID compatibility. No software or drivers are required for normal plug-and-play operation.
Latching Connectors for Secure Installation
Each DisplayPort connector uses a latching or gripping mechanism designed to help prevent accidental cable disconnection. This can be particularly useful in workstation, rack, conference-room, and digital-signage installations where equipment or cables may be moved.
Key Features
- 10 ft (3.05 m) passive DisplayPort 1.4 cable
- Supports up to 8K (7680 x 4320) at 30 Hz with 4:2:0 chroma
- HDR, HDCP 2.2, MST, EDID, and 3D video support
- Latching DisplayPort male-to-male connectors
- 36-bit Deep Color and bidirectional signal transmission
DC Supplies Product Note
The P580-010-V4 is the 10 ft member of Eaton's DisplayPort 1.4 V4 cable family, making it a useful choice when a longer passive connection is needed without stepping down to the older 4K-focused P580-010 model.
Typical Applications
- 8K-capable computer and monitor connections
- High-resolution workstation displays
- Conference-room AV systems
- Digital signage
- Home theater and media systems
- Multi-display DisplayPort installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-010-V4 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.4 |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Cable Length | 10 ft (3.05 m) |
| Maximum Resolution | 7680 x 4320 (8K) @ 30 Hz |
| Chroma Subsampling | 4:2:0 |
| HDR Support | Yes |
| HDCP | 2.2 |
| Color Depth | 36-bit Deep Color |
| 3D Video | Supported |
| MST Support | Yes |
| EDID Compatible | Yes |
| Connector Style | Straight, latching/gripping |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Outer Diameter | 7.3 mm |
| Minimum Bend Radius | 73 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| UPC | 037332255136 |
Package Contents
1 x Eaton Tripp Lite P580-010-V4 DisplayPort 1.4 cable, 10 ft (3.05 m).
Frequently Asked Questions
What resolution does the P580-010-V4 support?
The P580-010-V4 supports up to 7680 x 4320 (8K) at 30 Hz using 4:2:0 chroma subsampling.
Is the P580-010-V4 an active cable?
No. The P580-010-V4 is a passive, bidirectional DisplayPort cable.
Does the P580-010-V4 support HDR?
Yes. Eaton specifies HDR support for compatible DisplayPort 1.4 equipment and content.
Does this cable have locking DisplayPort connectors?
Yes. Both DisplayPort male connectors feature latching or gripping mechanisms to help prevent accidental disconnection.
How long is the Eaton P580-010-V4?
The cable is 10 ft (3.05 m) long.
How is the P580-010-V4 different from the P580-010?
The P580-010-V4 is the newer DisplayPort 1.4 model supporting up to 8K at 30 Hz, while the P580-010 is a DisplayPort 1.2 cable specified for up to 4K at 60 Hz.
