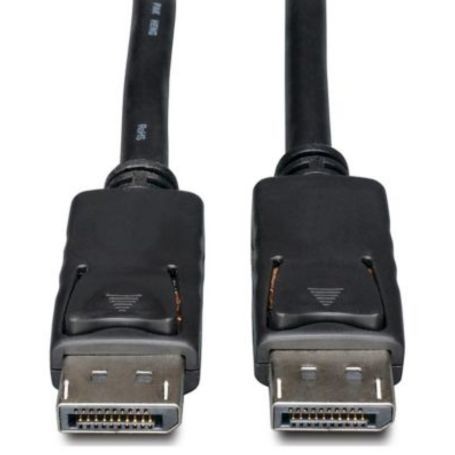

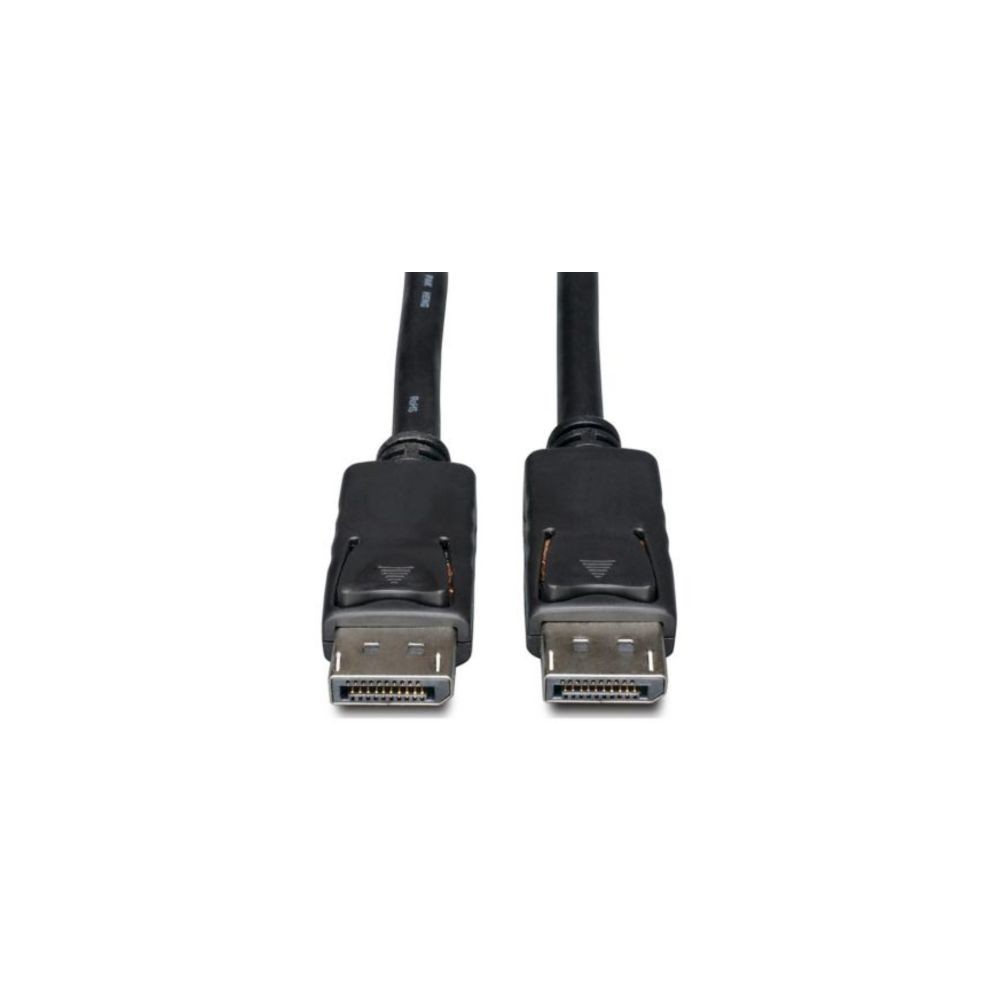

Eaton P580-020 Tripp Lite DisplayPort Cable 20 ft 4K 60Hz M M
The Eaton P580-020 is a 20 ft DisplayPort male-to-male cable designed for connecting DisplayPort-equipped computers, monitors, and other compatible audio/video equipment. Its passive construction supports bidirectional DisplayPort connections, while latching connectors help keep the cable securely connected during installation and use.
4K DisplayPort Video and Digital Audio
The P580-020 supports Ultra HD resolutions up to 3840 x 2160 and is specified for 4K video at up to 60 Hz in the manufacturer's technical specifications. It also supports 1080p and other common DisplayPort resolutions, along with HDCP-protected content and digital audio.
20-Foot Cable for Longer Display Connections
The 20 ft (6.09 m) length provides additional reach between a DisplayPort source and display without adding a separate extension cable. The cable has a black PVC jacket and shielded construction for use in desktop, conference-room, digital signage, and other AV installations.
Latching Male-to-Male Connectors
Both ends use DisplayPort male connectors with latching mechanisms. The latches help maintain the physical connection at the source and display, which can be useful for longer cable runs where accidental connector movement is a concern.
Key Features
- 20 ft (6.09 m) DisplayPort male-to-male cable
- Passive, bidirectional DisplayPort connection
- Supports up to 3840 x 2160 4K resolution
- Latching DisplayPort connectors for secure connections
- Shielded black PVC cable construction
DC Supplies Product Note
The 20 ft length makes the P580-020 useful when the display cannot be positioned close to the computer or AV source; measure the intended cable route before installation because the passive cable is designed as a direct source-to-display connection rather than an active optical extension.
Typical Applications
- Computer-to-monitor DisplayPort connections
- Conference-room displays
- Digital signage installations
- Desktop workstation video connections
- DisplayPort-equipped AV systems
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-020 |
| Product Type | DisplayPort Cable |
| Cable Type | Passive |
| Technology | DisplayPort |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Cable Length | 20 ft (6.09 m) |
| Maximum Resolution | 3840 x 2160 |
| 4K Support | Yes |
| DisplayPort Version | DisplayPort 1.1 / 1.2-class cable specification |
| HDCP | Supported |
| HDR | No |
| 3D Video | Supported |
| Color Depth | 24-bit True Color |
| Chroma Subsampling | 4:2:0 / 4:2:2 |
| Connector Type | Latching / gripping |
| Shielding | Shielded |
| Cable Shape | Round |
| Jacket Material | PVC |
| Color | Black |
| UPC | 037332176561 |
| Warranty | Lifetime limited warranty |
Package Contents
1 x Eaton Tripp Lite P580-020 DisplayPort monitor cable, 20 ft (6.09 m).
Frequently Asked Questions
What type of cable is the Eaton P580-020?
The P580-020 is a passive, bidirectional DisplayPort male-to-male cable with latching connectors.
What resolution does the P580-020 support?
The cable supports resolutions up to 3840 x 2160 and is specified for 4K video. The manufacturer's documentation also lists support for 2560 x 1600 and 1920 x 1200 resolutions.
How long is the P580-020?
The cable is 20 ft (6.09 m) long.
Does the P580-020 have locking connectors?
Yes. Both DisplayPort connectors have latching mechanisms designed to help maintain the connection.
Is the P580-020 an active optical DisplayPort cable?
No. The P580-020 is a passive DisplayPort cable. It should not be confused with Eaton Tripp Lite active optical DisplayPort models or the newer P580-020-8K6.
