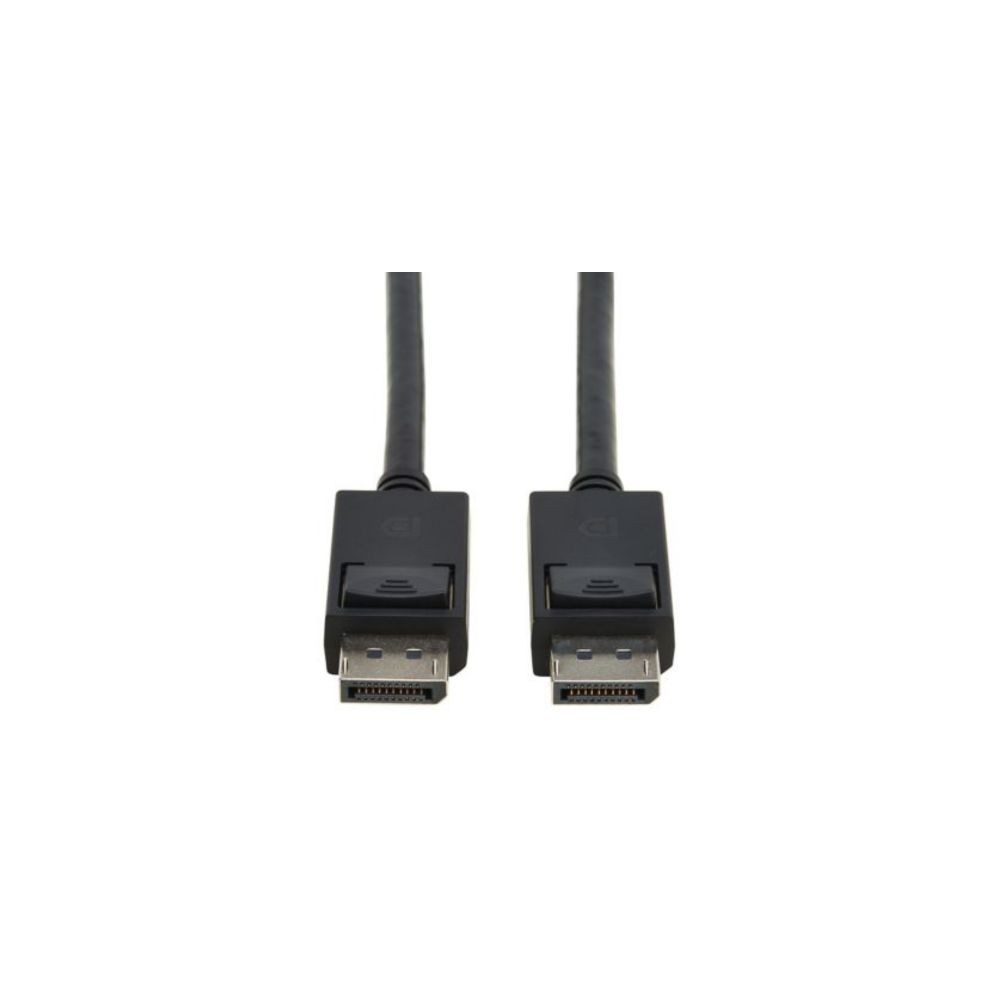

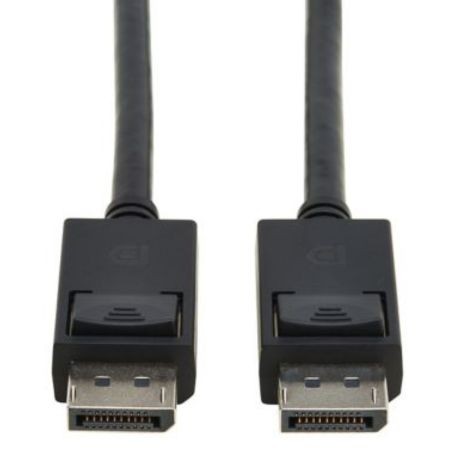

Eaton P580-003-8K6-2 Tripp Lite DisplayPort 2 1 Cable 3 ft 8K 60Hz 40Gbps
The Eaton Tripp Lite P580-003-8K6-2 is a 3 ft passive DisplayPort 2.1 cable designed for high-bandwidth digital video and audio connections between compatible DisplayPort source and display equipment. It supports up to 8K resolution at 60Hz, 40Gbps bandwidth, HDR, HBR3, and 4:4:4 chroma.
The cable also supports Multi-Stream Transport (MST) and HDCP 2.2. Both ends use male DisplayPort connectors with latching mechanisms for a secure connection. The manufacturer specifies bidirectional operation and plug-and-play use without software.
Key Features
- DisplayPort 2.1 male-to-male cable, 3 ft (0.91 m)
- Supports up to 8K at 60Hz with 4:4:4 chroma
- Up to 40Gbps bandwidth with HBR3 support
- Supports HDR, HDCP 2.2, and DisplayPort MST
- Latching DisplayPort connectors with bidirectional signal transmission
High-Bandwidth DisplayPort Connectivity
The P580-003-8K6-2 is intended for high-resolution workstations, gaming systems, professional monitors, digital signage, home theater equipment, and other DisplayPort installations that require substantial video bandwidth. Both the source and display must support the applicable 8K capabilities for 8K video operation.
Video and Audio Support
The cable carries digital video and audio through the DisplayPort connection. Manufacturer documentation specifies 8K at 60Hz, 4:4:4 chroma, HDR, HBR3, and HDCP 2.2 support. MST support enables compatible DisplayPort systems to use Multi-Stream Transport configurations.
Connector Design
Both ends use male DisplayPort connectors with latching mechanisms. The 3 ft length is suited to short connections between nearby computers, graphics cards, docking equipment, monitors, and other DisplayPort devices. The cable is black with a round construction.
Applications
- 8K desktop and workstation displays
- High-resolution professional monitors
- Gaming PCs and compatible graphics systems
- Digital signage and professional AV installations
- DisplayPort MST configurations
- Short computer-to-monitor DisplayPort connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-003-8K6-2 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 2.1 |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Cable Length | 3 ft (0.91 m) |
| Maximum Resolution | 7680 x 4320 (8K) @ 60Hz |
| Maximum Bandwidth | 40Gbps |
| Chroma Subsampling | 4:4:4 |
| HDR | Yes |
| HBR3 | Yes |
| HDCP | 2.2 |
| MST | Yes |
| EDID | Yes |
| CEC | Yes |
| Color Depth | 24-bit True Color |
| Connector Style | Latching |
| Cable Construction | Round |
| Color | Black |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Compliance | RoHS, CE, REACH |
Package Contents
1 x Eaton Tripp Lite P580-003-8K6-2 DisplayPort 2.1 cable, 3 ft.
Frequently Asked Questions
What resolution does the P580-003-8K6-2 support?
The cable supports up to 7680 x 4320 (8K) at 60Hz when the connected source and display support the required 8K capabilities.
What is the bandwidth of this DisplayPort cable?
The P580-003-8K6-2 supports up to 40Gbps bandwidth and HBR3.
Does it support HDR?
Yes. HDR support is specified for the P580-003-8K6-2.
Does the cable support DisplayPort MST?
Yes. MST support is specified for compatible DisplayPort systems.
What connectors does it use?
It has male DisplayPort 2.1 connectors on both ends, with latching mechanisms.
Is the P580-003-8K6-2 passive?
Yes. It is a passive, bidirectional DisplayPort cable and does not require software for operation.
