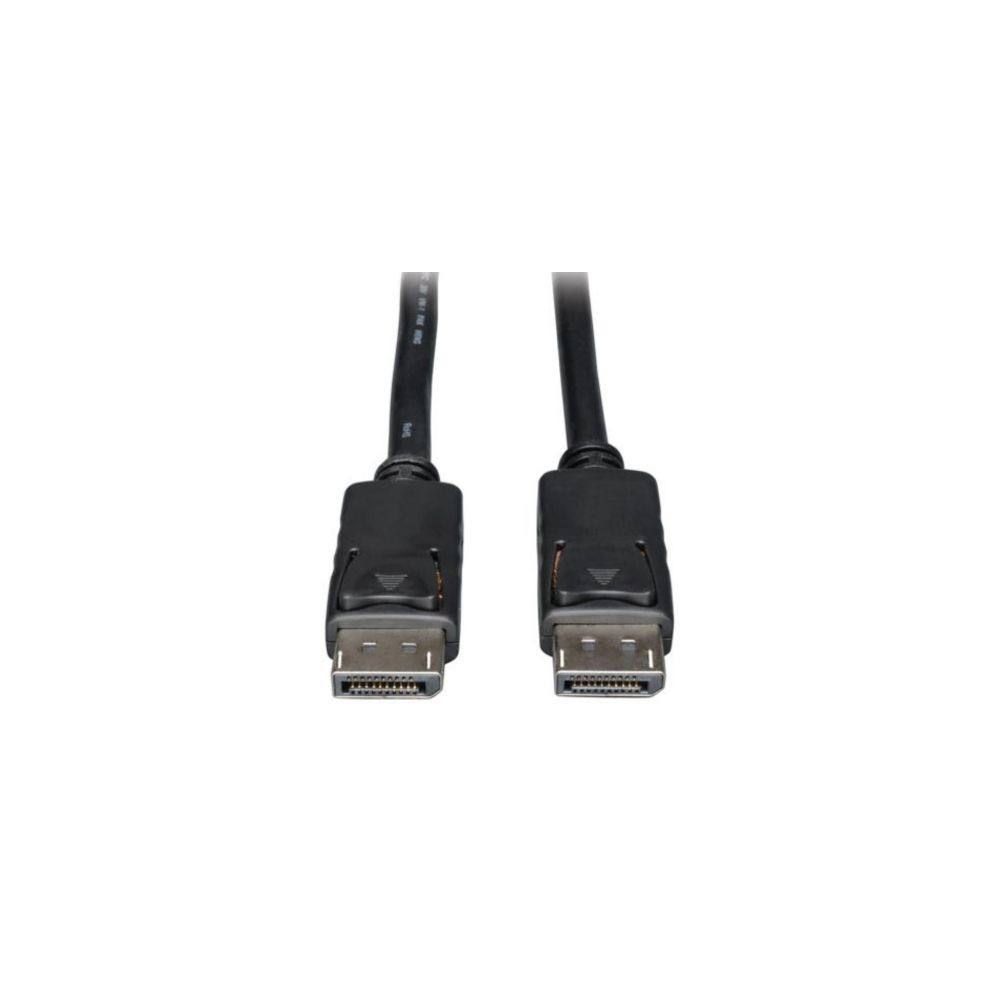

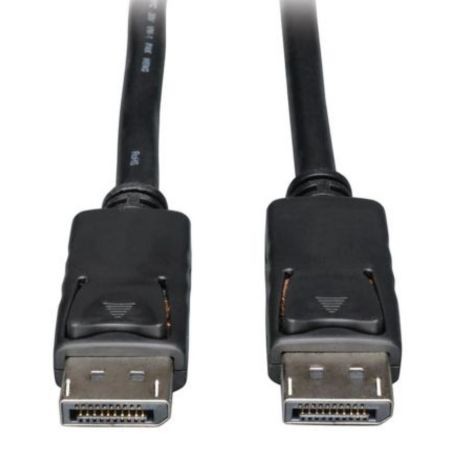

Eaton P580-025 Tripp Lite DisplayPort 1 2 Cable 25 ft 4K 60Hz M M
The Eaton P580-025 Tripp Lite DisplayPort Cable provides a 25 ft (7.62 m) connection between compatible DisplayPort-equipped computers, monitors, projectors, KVM systems, and other digital displays. This passive DisplayPort 1.2 cable supports 4K video at 60 Hz and uses male DisplayPort connectors on both ends.
The P580-025 features latching connectors that help maintain a secure connection during installation and normal equipment handling. Shielded construction helps protect the digital signal, while the black round cable is suited to longer desktop, conference-room, presentation, and commercial AV installations.
Key Features
- 25 ft (7.62 m) DisplayPort cable for extended connections
- DisplayPort 1.2 male-to-male connector configuration
- Passive and bidirectional operation
- Supports 4K resolution at 60 Hz
- Latching connectors and shielded cable construction
Extended DisplayPort Connectivity
The P580-025 is designed for longer DisplayPort connections where a short patch cable does not provide sufficient reach. Its 25 ft length can help connect computers and displays positioned farther apart in conference rooms, classrooms, offices, presentation areas, and equipment installations.
4K Video and Digital Audio
The DisplayPort 1.2 interface supports digital video and audio transmission, with the P580-025 specified for 4K at 60 Hz. HDCP support allows the cable to be used with compatible protected digital content.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-025 |
| Product Type | DisplayPort Cable |
| Cable Type | Passive |
| DisplayPort Specification | DisplayPort 1.2 |
| Cable Length | 25 ft (7.62 m) |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Signal Transmission | Bidirectional |
| Maximum Supported Resolution | 4K at 60 Hz |
| HDCP | Supported |
| Connector Type | 20-Pin DisplayPort |
| Connector Feature | Latching |
| Shielding | Shielded |
| Cable Construction | Round |
| Conductor | Copper |
| Color | Black |
| Compliance | DisplayPort 1.2, RoHS |
| UPC | 037332176554 |
| Warranty | Limited Lifetime |
Compatible Applications
- Desktop computers and workstations with DisplayPort output
- 4K DisplayPort monitors and displays
- DisplayPort projectors and presentation systems
- Conference-room and classroom AV installations
- DisplayPort KVM and equipment-room connections
- Digital signage and multimedia installations
Package Contents
1 x Eaton Tripp Lite P580-025 DisplayPort Cable, 25 ft (7.62 m).
Frequently Asked Questions
What is the Eaton P580-025?
The P580-025 is a 25 ft passive DisplayPort 1.2 male-to-male cable designed for digital video and audio connections.
What resolution does the P580-025 support?
Eaton specifies support for 4K resolution at 60 Hz.
Is the P580-025 bidirectional?
Yes. Eaton identifies the P580-025 as a passive, bidirectional DisplayPort cable.
Does the P580-025 have latching connectors?
Yes. Both DisplayPort connectors use latching mechanisms to help maintain a secure connection.
Is the P580-025 an active cable?
No. It is a passive DisplayPort cable and does not require an external power supply.
Is the P580-025 suitable for 25 ft installations?
Yes. The cable is specifically manufactured at 25 ft (7.62 m), providing additional reach for compatible DisplayPort source and display equipment.
