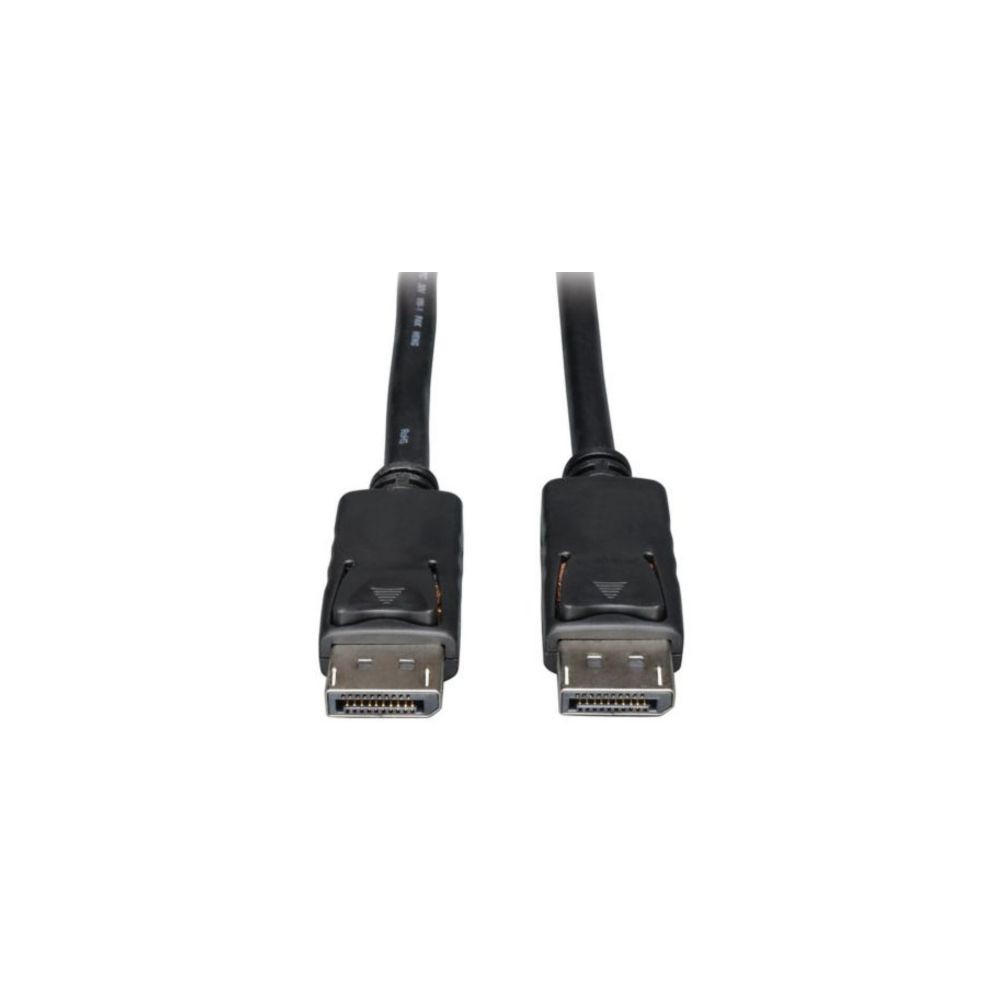

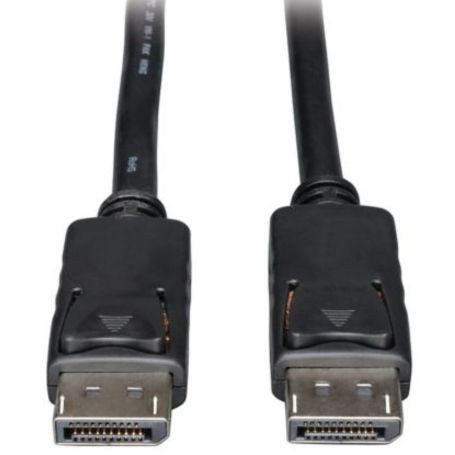

Eaton P580-001 Tripp Lite DisplayPort 1 2 Cable 1 ft M M 4K 60Hz
The Eaton P580-001 Tripp Lite DisplayPort Cable provides a short male-to-male connection for compatible computers, monitors, projectors, KVM switches, and other DisplayPort-equipped devices. The passive 1 ft (0.31 m) cable supports DisplayPort 1.2 and resolutions up to 3840 x 2160 at 60 Hz.
Both DisplayPort connectors feature latching/gripping mechanisms that help keep the cable securely connected during normal installation and use. The cable also supports digital video and audio, HDCP, EDID, MST, and 3D video applications.
Key Features
- DisplayPort 1.2 male-to-male connection
- Supports 4K x 2K resolution up to 3840 x 2160 at 60 Hz
- 1 ft (0.31 m) length for short DisplayPort connections
- Latching/gripping connectors help prevent accidental cable disconnection
- Passive, bidirectional cable supporting digital video and audio
DisplayPort 4K Connectivity
The P580-001 supports Ultra High Definition video up to 3840 x 2160 at 60 Hz and is designed for DisplayPort 1.2 connections. It also supports 1080p video and digital audio through the DisplayPort interface.
Secure Latching Connectors
Both connectors use latching or gripping mechanisms to help maintain the connection between compatible DisplayPort ports. This can be useful in desktop, conference room, KVM, and equipment installations where cables may be moved or handled during setup.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P580-001 |
| Product Type | DisplayPort Cable |
| Cable Type | Passive |
| Technology | DisplayPort |
| DisplayPort Specification | DisplayPort 1.2 |
| Cable Length | 1 ft (0.31 m) |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Signal Transmission | Bidirectional |
| Maximum Resolution | 3840 x 2160 (4K) at 60 Hz |
| HDCP | 2.2 |
| Color Depth | 24-bit True Color |
| Chroma Subsampling | 4:2:0 / 4:2:2 |
| EDID Support | Yes |
| MST Support | Yes |
| 3D Video Support | Yes |
| Connector Style | Straight, latching/gripping |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Cable Jacket | Black PVC, VW-1 |
| Minimum Bend Radius | 60 mm |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 10% to 85% RH, Non-Condensing |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
| Color | Black |
| UPC | 037332186188 |
Compatible Applications
- Desktop computers and DisplayPort monitors
- DisplayPort-equipped laptops and workstations
- Conference room presentation systems
- Projectors and digital displays with DisplayPort input
- DisplayPort KVM switch installations
- Multi-monitor and MST-capable DisplayPort systems
Package Contents
1 x Eaton Tripp Lite P580-001 DisplayPort Monitor Cable, 1 ft.
Frequently Asked Questions
What type of cable is the Eaton P580-001?
The P580-001 is a passive DisplayPort 1.2 male-to-male cable.
What resolution does the P580-001 support?
It supports resolutions up to 3840 x 2160 at 60 Hz, including 4K UHD and 1080p.
Is the P580-001 bidirectional?
Yes. Eaton specifies bidirectional signal transmission for this passive DisplayPort cable.
Does the P580-001 carry audio?
Yes. DisplayPort supports digital video and audio, and this cable is designed for both.
Are the DisplayPort connectors latching?
Yes. Eaton specifies latching or gripping connectors designed to help maintain a secure connection.
Is P580-001 the same as P580-001-V4?
No. P580-001 is a DisplayPort 1.2 cable supporting 4K at 60 Hz. P580-001-V4 is a different DisplayPort 1.4 model designed for higher-resolution 8K applications.
