Detailed Specifications
Eaton P580-009-8K6 DisplayPort 1.4 8K 60Hz Cable Tripp Lite
Overview :

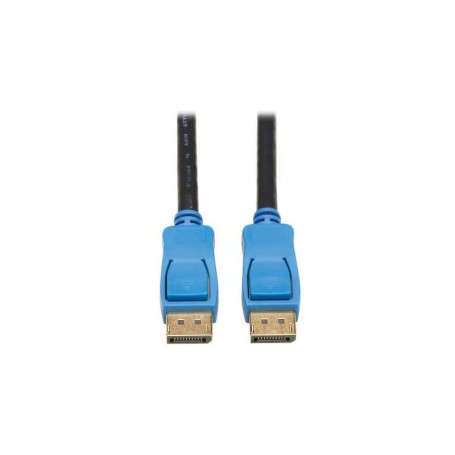

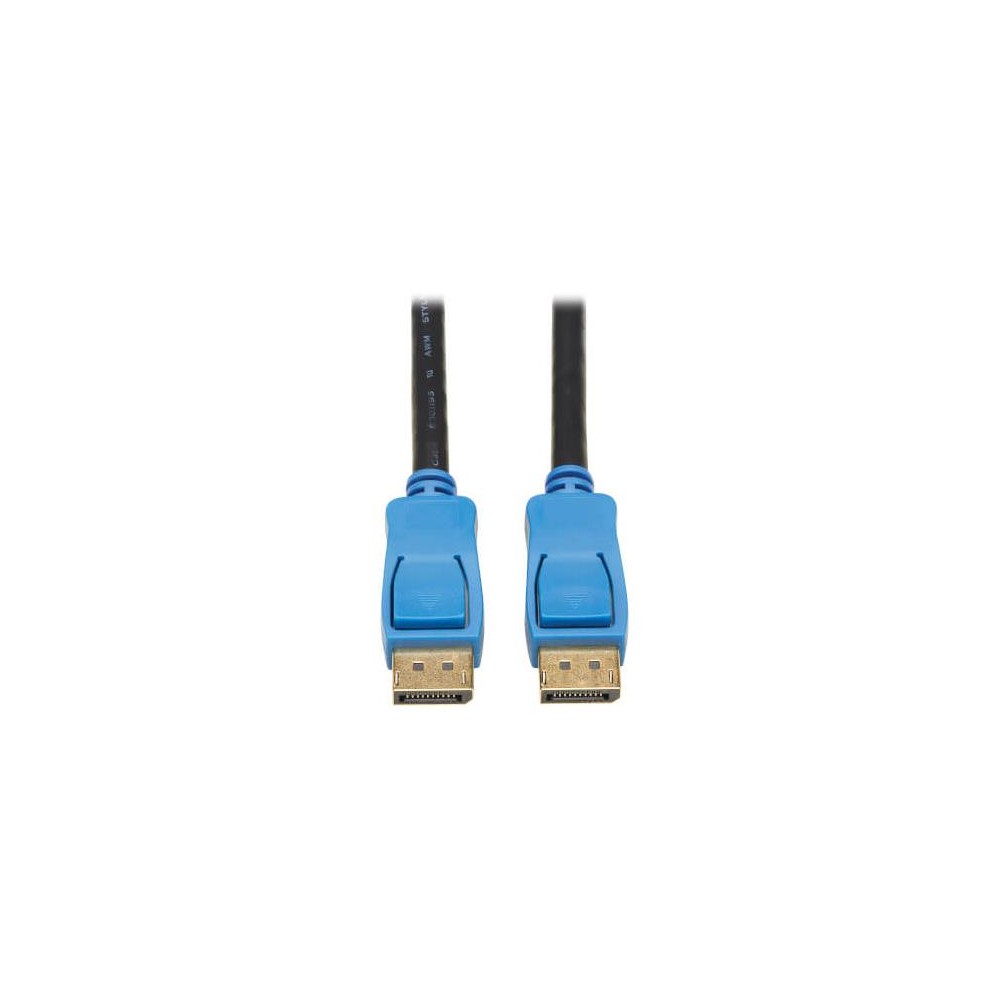

The Eaton P580-009-8K6 is a 9 ft (2.74 m) DisplayPort 1.4 male-to-male cable designed for high-resolution professional AV, digital signage, gaming, workstation, and home-theater applications. It supports resolutions up to 8K UHD (7680 × 4320) at 60 Hz with 4:4:4 chroma.
The passive, bidirectional cable supports HDR, HBR3, HDCP 2.2, EDID and 3D video, providing high-bandwidth DisplayPort connectivity without requiring external power or software. Latching DisplayPort connectors help maintain a secure connection during deployment.
Key Features :
- DisplayPort 1.4 male-to-male
- Supports up to 8K @ 60 Hz
- 4:4:4 chroma subsampling
- HDR support
- HBR3 high-bandwidth support
- HDCP 2.2 compliant
- Bidirectional passive transmission
- Latching connectors
- Gold-plated contacts
- 9 ft / 2.74 m length
- Double-shielded construction
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P580-009-8K6 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.4 |
| Connector 1 | DisplayPort Male |
| Connector 2 | DisplayPort Male |
| Cable Length | 9 ft / 2.74 m |
| Maximum Resolution | 7680 × 4320 @ 60 Hz |
| Chroma | 4:4:4 |
| HDR | Yes |
| HDCP | 2.2 |
| Signal Type | Passive, Bidirectional |
| Cable Diameter | 6.8 mm |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Connector Plating | Gold |
| Operating Temperature | -10°C to 50°C |
| Compliance | RoHS, REACH, CE |
