Eaton P580-010-2PK 10 4K ft. DisplayPort Cable 2-Pack Compatible Tripp Lite
Overview :

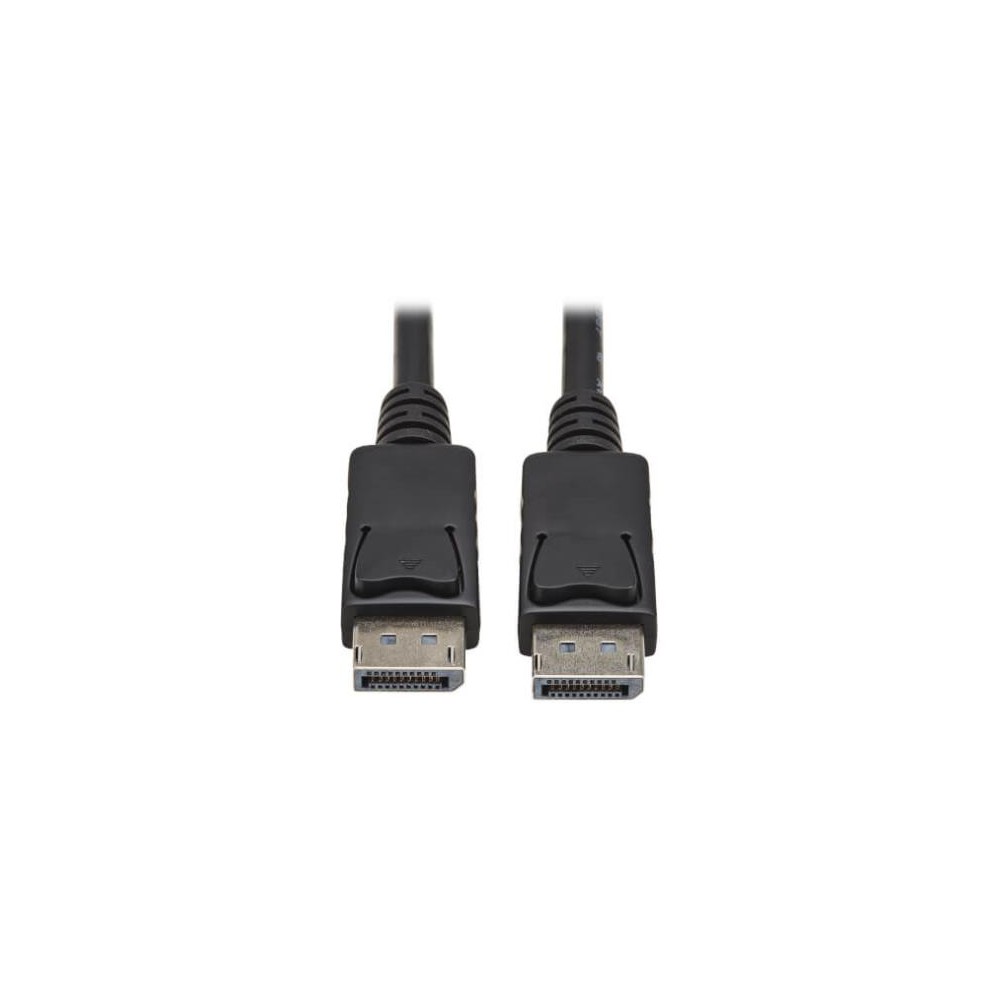

The Eaton P580-010-2PK is a 2-pack of 10-foot DisplayPort-to-DisplayPort cables from the TRIPP LITE by Eaton series. Each cable features male DisplayPort connectors with latching mechanisms designed to maintain a secure connection between compatible computers, monitors, projectors and other DisplayPort equipment.
The cables use DisplayPort 1.2 technology and support resolutions up to 3840 × 2160 (4K) at 60 Hz. They provide bidirectional signal transmission and support digital audio and video applications.
Key Features :
- 2 DisplayPort-to-DisplayPort cables
- 10 ft. (3.05 m) cable length per cable
- DisplayPort 1.2
- Supports 4K × 2K resolution up to 3840 × 2160 at 60 Hz
- Male DisplayPort connectors on both ends
- Latching connectors help prevent accidental disconnection
- Bidirectional signal transmission
- Supports digital audio and video
- HDCP 2.2 support
- 10.8 Gbps maximum bandwidth
- Black PVC cable jacket
- Gold-plated contacts and nickel-plated connectors
- Passive cable design
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Product Series | TRIPP LITE by Eaton |
| Part Number | P580-010-2PK |
| Product Type | DisplayPort Cable 2-Pack |
| Quantity | 2 cables |
| Cable Type | DisplayPort |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| DisplayPort Version | 1.2 |
| Cable Length | 10 ft. (3.05 m) |
| Maximum Resolution | 3840 × 2160 (4K) @ 60 Hz |
| Maximum Bandwidth | 10.8 Gbps |
| Signal Transmission | Bidirectional |
| HDCP | 2.2 |
| DPCP | Supported |
| 3D Video | Supported |
| Color Depth | 24-bit True Color |
| Chroma Subsampling | 4:2:0, 4:2:2 |
| Connector Style | Straight |
| Connector Feature | Latching |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter | 6.0 mm |
| Wire Gauge | 30 AWG |
| Cable Type | Passive |
