Detailed Specifications

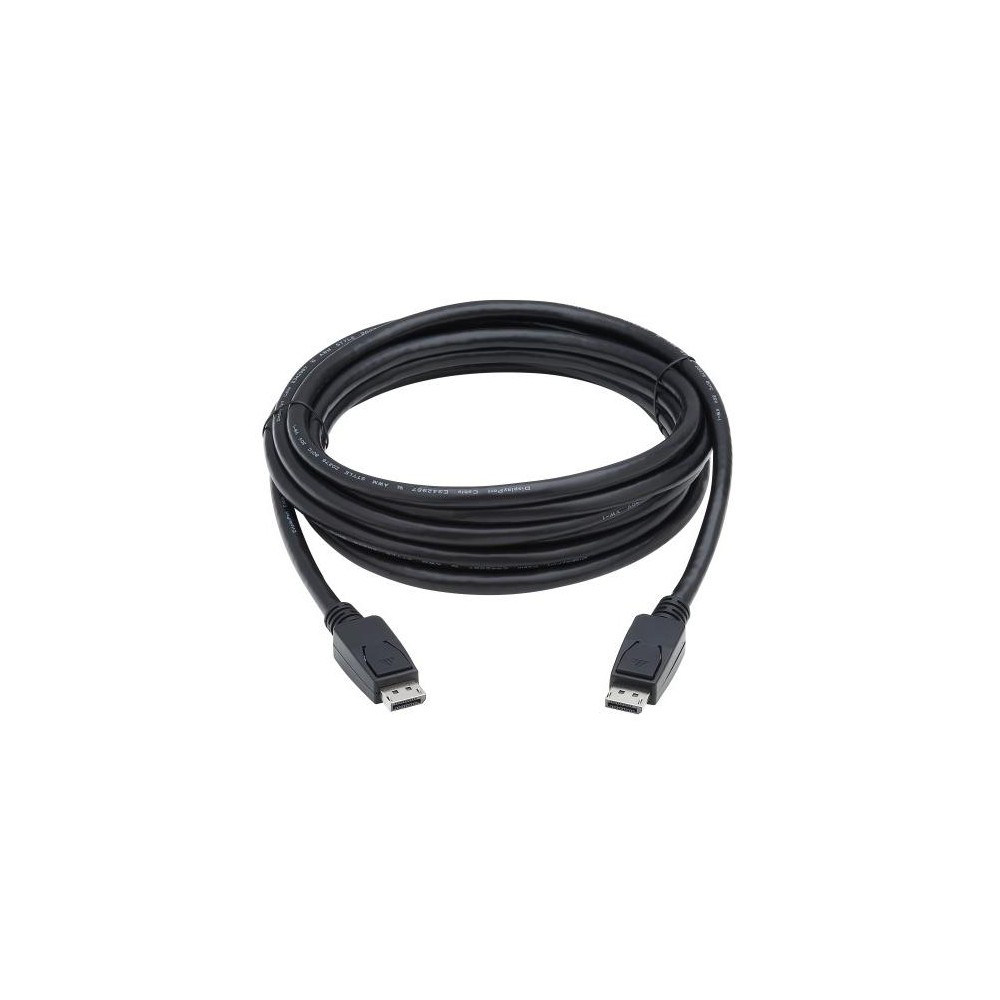

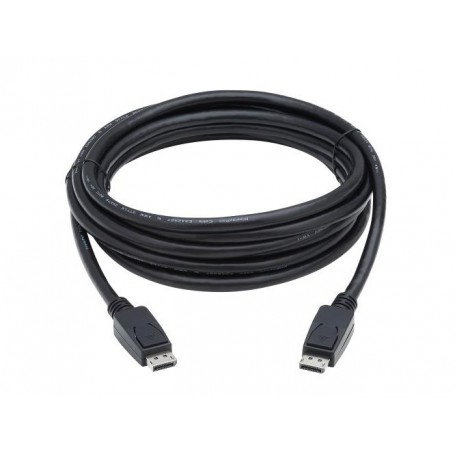

Eaton P580-015-V4 DisplayPort 1.4 Cable with Latching Connectors Compatible Tripp Lite
Overview :
The Eaton P580-015-V4 is a TRIPP LITE by Eaton DisplayPort 1.4 cable with male-to-male connectors and integrated latching mechanisms. It is designed for connecting DisplayPort-compatible computers, workstations, monitors, displays, digital signage systems, and other A/V equipment. Eaton's catalog identifies it as a passive, bidirectional DisplayPort 1.4 cable.
The cable is 15 ft (4.57 m) long and supports data rates up to 32 Gbps. It supports 8K UHD resolution up to 7680 × 4320 at 30 Hz with 4:2:0 chroma subsampling, along with HDR and HDCP 2.2.
Key Features :
- DisplayPort 1.4 cable
- DisplayPort male-to-male configuration
- 15 ft (4.57 m) length
- Supports up to 32 Gbps data transfer
- Supports 8K UHD up to 7680 × 4320 at 30 Hz
- Supports HDR
- Supports HDCP 2.2
- Supports 4:2:0 chroma subsampling
- Latching connectors help prevent accidental disconnection
- Passive, bidirectional design
- Backward compatible with earlier DisplayPort devices
- Black finish
- Plug-and-play operation
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | TRIPP LITE by Eaton |
| Part Number | P580-015-V4 |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.4 |
| Connector 1 | DisplayPort Male |
| Connector 2 | DisplayPort Male |
| Cable Length | 15 ft / 4.57 m |
| Maximum Data Rate | 32 Gbps |
| Maximum Resolution | 7680 × 4320 @ 30 Hz |
| Chroma Subsampling | 4:2:0 |
| HDR Support | Yes |
| HDCP | 2.2 |
| 3D Video | Yes |
| EDID Compatible | Yes |
| Color Depth | Up to 36-bit Deep Color |
| Cable Type | Passive / Bidirectional |
| Connector Type | Latching |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Wire Gauge | 26 AWG |
| Cable Outer Diameter | 4.8 mm |
| Jacket / Construction | PVC + ABS |
| Color | Black |
| Operating Temperature | 32-113°F / 0-45°C |
| Storage Temperature | 14-158°F / -10-70°C |
| Compliance | RoHS, REACH |
