Detailed Specifications

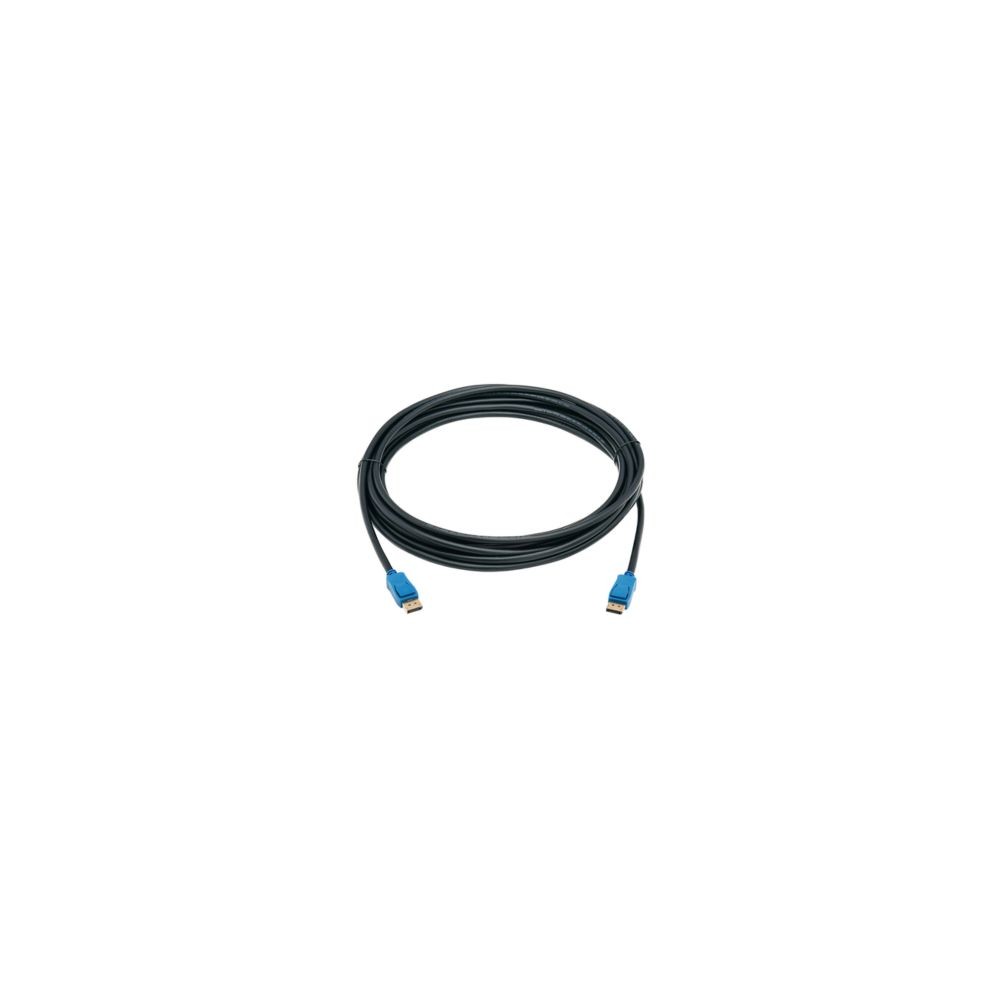

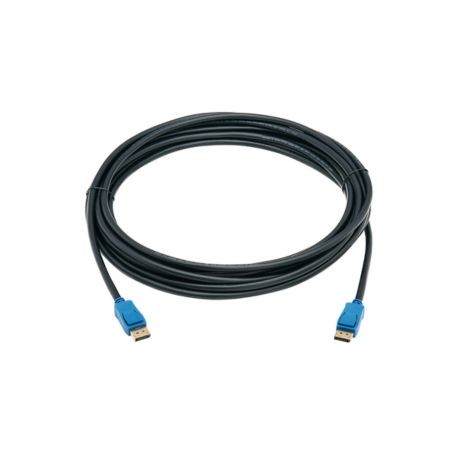

Eaton P580-020-8K6 Tripp Lite 8K DisplayPort Cable
Overview
The Eaton P580-020-8K6 is a Tripp Lite DisplayPort 1.4 male-to-male cable designed for high-resolution digital video and audio connections. It supports resolutions up to 8K at 60 Hz, HDR, 4:4:4 chroma, HBR3 and HDCP 2.2. The 20 ft (6.1 m) passive cable is suitable for connecting compatible computers, workstations, monitors, digital signage systems and other DisplayPort-equipped A/V equipment.
Both DisplayPort connectors feature latching mechanisms to help prevent accidental disconnection. Gold-plated contacts and double shielding help maintain signal integrity and reduce EMI/RFI interference. The cable uses a black PVC jacket and 26 AWG construction with a 7.3 mm cable diameter.
Key Features
- Supports 8K (7680 × 4320) at 60 Hz with 4:4:4 chroma
- DisplayPort 1.4 male-to-male connection with HBR3
- Supports HDR and HDCP 2.2
- Latching DisplayPort connectors help prevent accidental disconnection
- 20 ft (6.1 m) passive cable with double shielding and gold-plated contacts
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | Tripp Lite |
| Part Number | P580-020-8K6 |
| Product Type | DisplayPort Cable |
| Cable Type | DisplayPort 1.4 |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Connector Design | Latching |
| Cable Length | 20 ft (6.1 m) |
| Signal Type | Digital Audio/Video |
| Maximum Resolution | 7680 × 4320 |
| Maximum Refresh Rate | 60 Hz |
| Chroma Subsampling | 4:4:4 |
| HDR | Yes |
| High Bit Rate | HBR3 |
| HDCP | 2.2 |
| Data Rate | Up to 32.4 Gbps |
| Cable Gauge | 26 AWG |
| Cable Diameter | 7.3 mm |
| Shielding | Double Shielded |
| Connector Contacts | Gold-Plated |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Cable Color | Black |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -15 to 60°C |
| Operating Humidity | 0-90% RH |
| Storage Humidity | 0-90% RH |
| Package Type | Polybag |
| Quantity | 1 |
| UPC/EAN | 037332290953 |
| Warranty | Lifetime Limited Manufacturer Warranty |
