Detailed Specifications

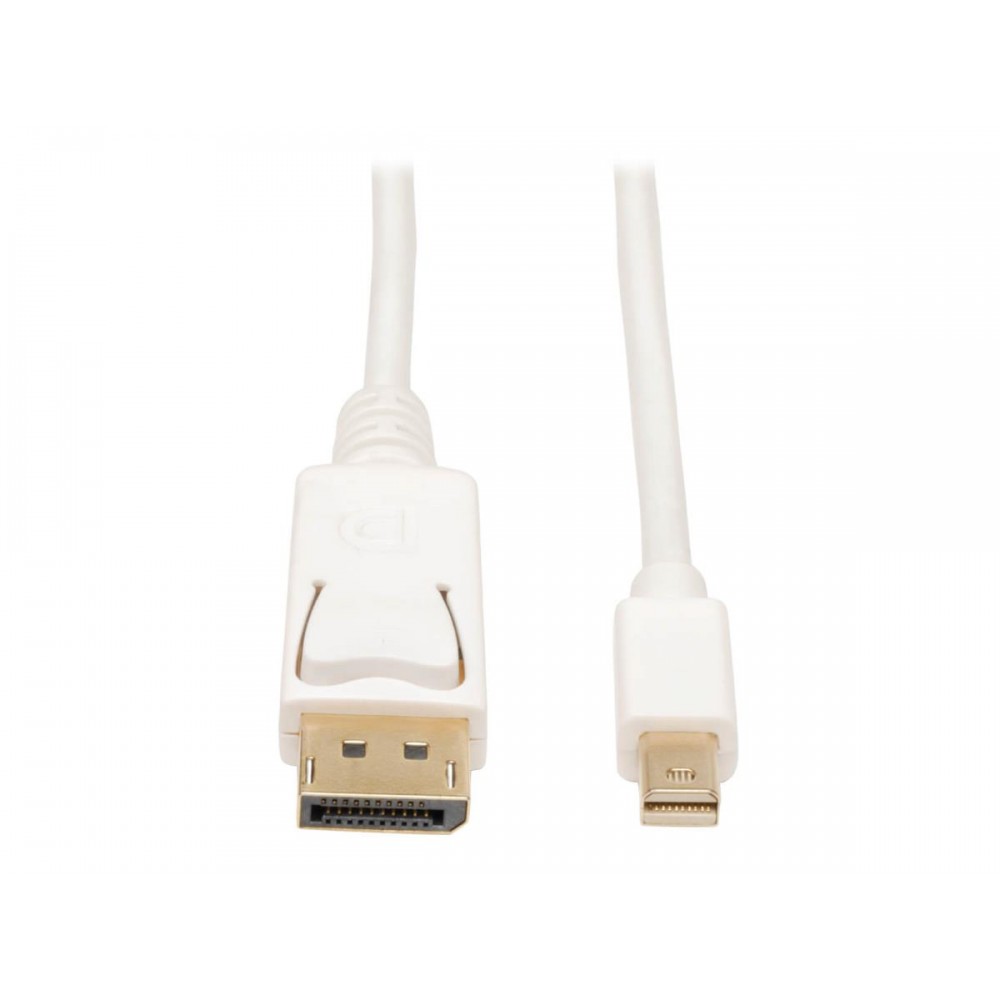

Eaton P583-003 3 ft Mini DisplayPort to DisplayPort Cable Compatible Brand Tripp Lite
Overview :
The Eaton P583-003 is a 3-foot (0.91 m) passive Mini DisplayPort-to-DisplayPort adapter cable with male connectors on both ends. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. The cable is designed to connect a computer or other source with a Mini DisplayPort or Thunderbolt video output to a DisplayPort monitor, TV or projector.
The cable supports DisplayPort 1.2 and Ultra HD video resolutions up to 3840 × 2160 at 60Hz. Eaton also specifies support for resolutions up to 4096 × 2160 at 60Hz in the product highlights. It is a passive, bidirectional cable with a latching DisplayPort connector for a secure connection.
The P583-003 uses a white PVC jacket with VW-1 flame rating and nickel/gold-plated connector specifications. It is suitable for workstation, office, conference-room, digital-signage and monitor connectivity applications where a Mini DisplayPort source must connect to a DisplayPort display.
Key Features :
- 3 ft. (0.91 m) cable length
- Mini DisplayPort male to DisplayPort male
- Passive DisplayPort cable
- DisplayPort 1.2 support
- Supports 4K video at 60Hz
- Maximum specified video resolution up to 4096 × 2160 @ 60Hz
- Bidirectional signal transmission
- Latching DisplayPort connector
- HDCP 2.2 support
- 24-bit True Color support
- Supports 3D video
- White PVC jacket
- VW-1 cable jacket rating
- RoHS, REACH and WEEE compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P583-003 |
| Product Type | Mini DisplayPort to DisplayPort cable |
| Cable Type | Passive |
| Cable Length | 3 ft. (0.91 m) |
| Connector A | DisplayPort Male |
| Connector B | Mini DisplayPort Male |
| Signal Transmission | Bidirectional |
| DisplayPort Version | 1.2 |
| Maximum Video Resolution | 3840 × 2160 @ 60Hz |
| Maximum Highlighted Resolution | 4096 × 2160 @ 60Hz |
| Maximum Color Depth | 24-bit True Color |
| HDCP | 2.2 |
| 3D Video | Yes |
| HDR | No |
| Chroma Subsampling | 4:2:0 / 4:2:2 |
| Connector Style | Straight / latching DisplayPort |
| Cable Jacket Material | PVC |
| Cable Jacket Color | White |
| Cable Jacket Rating | VW-1 |
| Connector Plating | Nickel / gold contact plating |
| Minimum Bend Radius | 48 mm |
| Operating Temperature | 32°-113°F (0°-45°C) |
| Cable Technology | DisplayPort |
| Compliance | RoHS, REACH, WEEE |
