Detailed Specifications

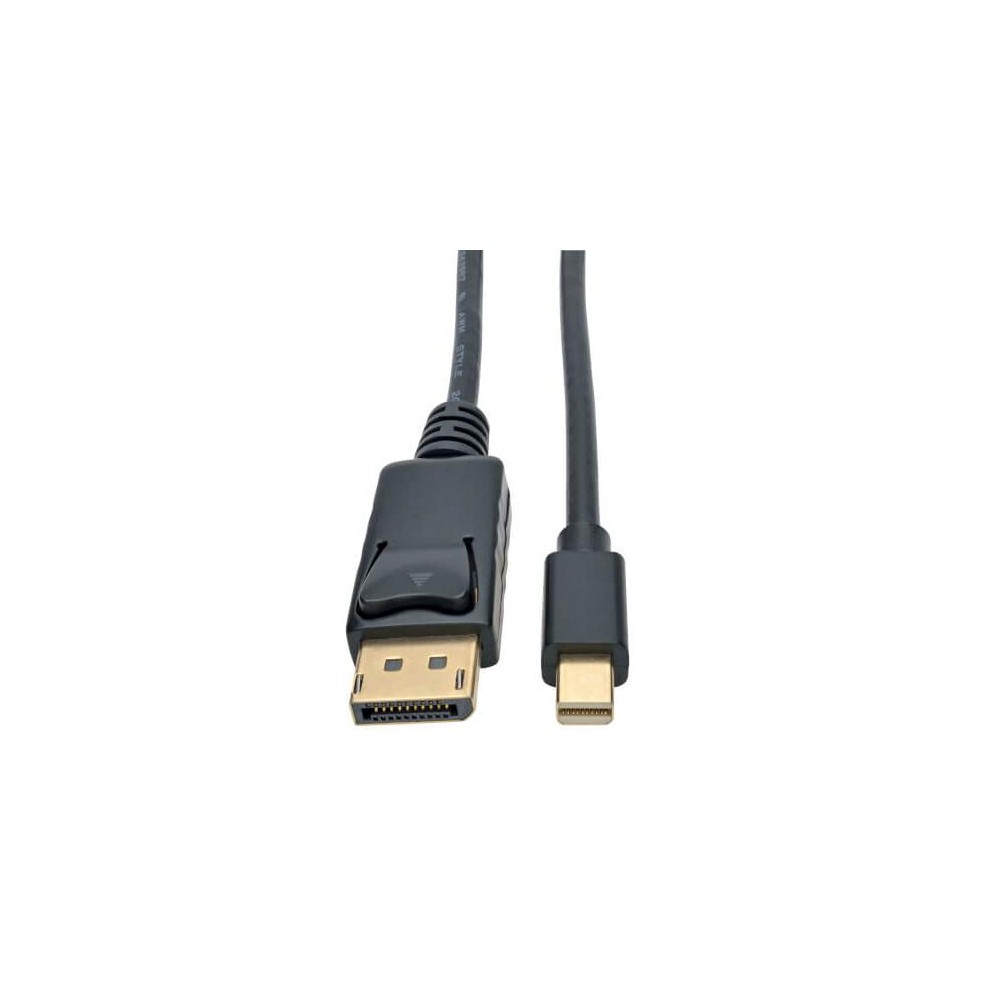

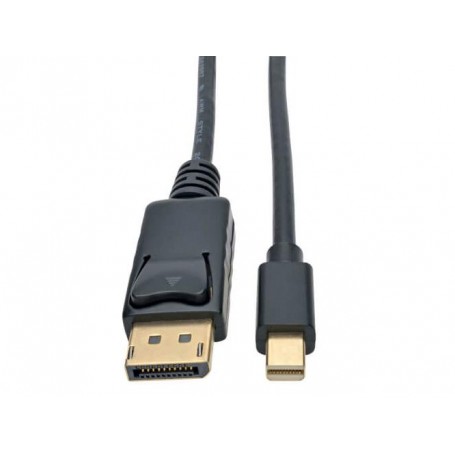

Eaton P583-003-BK 3 ft Mini DisplayPort Adapter Cable Compatible Tripp Lite
Overview :
The Eaton P583-003-BK is a Tripp Lite series 3-foot Mini DisplayPort to DisplayPort adapter cable designed to connect compatible computers, laptops and other Mini DisplayPort or Thunderbolt sources to DisplayPort-enabled monitors, TVs and projectors. The cable features DisplayPort male and Mini DisplayPort male connectors and supports passive bidirectional transmission with video resolutions up to 4K at 60Hz.
The cable measures 91 cm (3 ft) and uses a black PVC jacket with VW-1 rating. Its DisplayPort connector features a locking/latching design for a secure connection. The cable supports DisplayPort 1.2 and up to 21.6 Gbps HBR2 bandwidth.
Key Features :
- Mini DisplayPort male to DisplayPort male
- 3 ft / 91 cm cable length
- Supports 4K @ 60Hz video
- Passive bidirectional transmission
- Supports DisplayPort 1.2
- Locking/latching DisplayPort connector
- Black PVC cable jacket
- VW-1 cable jacket rating
- Supports up to 4096 × 2160 resolution
- Supports up to 21.6 Gbps HBR2 bandwidth
- Gold-plated connectors and contacts
- Suitable for computers, laptops, monitors, TVs and projectors
- No separate power adapter required
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P583-003-BK |
| Product Type | Mini DisplayPort to DisplayPort Adapter Cable |
| Connector A | DisplayPort Male |
| Connector B | Mini DisplayPort Male |
| Cable Length | 3 ft / 91 cm |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| DisplayPort Version | 1.2 |
| Maximum Resolution | 4096 × 2160 @ 60Hz |
| Supported Video Resolution | 4K @ 60Hz |
| Data Rate | Up to 21.6 Gbps |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Color | Black |
| Connector Type | Latching |
| Connector Plating | Gold |
| Shielding | Unshielded |
| HDR Support | No |
| 3D Video Support | Yes |
| HDCP | 2.2 |
