Detailed Specifications

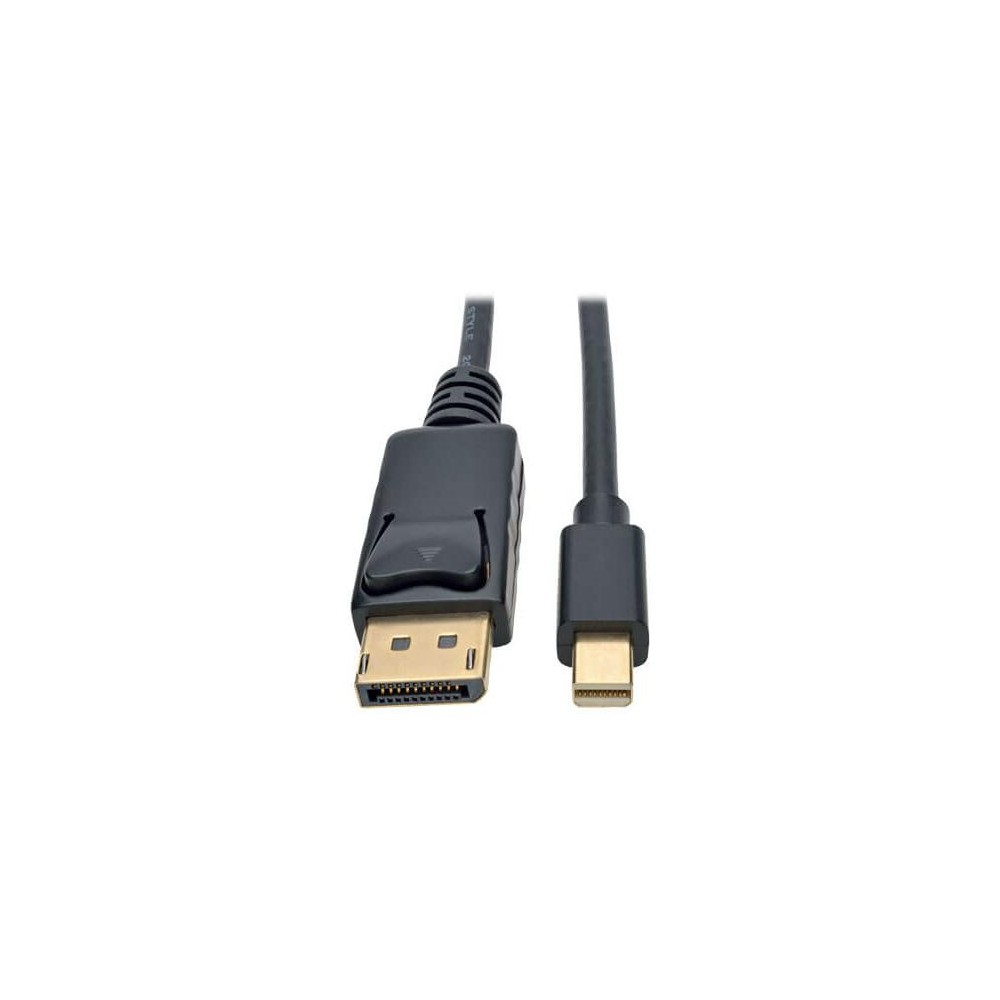

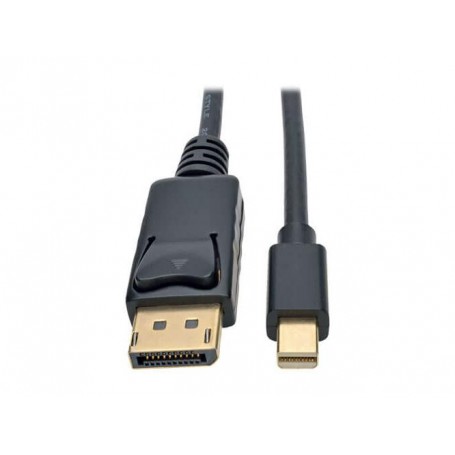

Eaton P583-006-BK 6 ft Mini DisplayPort 4K Cable Compatible Tripp Lite
Overview
The P583-006-BK provides a direct connection between a Mini DisplayPort source and a DisplayPort display without requiring a separate power adapter. It supports HBR2 bandwidth up to 21.6 Gbps, EDID compatibility and bidirectional signal transmission. Gold-plated connectors and a latching DisplayPort connector help provide reliable connectivity.
Key Features
- 6 ft (1.8 m) cable length
- Mini DisplayPort Male to DisplayPort Male
- Passive and bidirectional design
- Supports up to 4K × 2K @ 60Hz
- DisplayPort 1.2 compliant
- Supports HBR2 bandwidth up to 21.6 Gbps
- Gold-plated connectors and contacts
- Latching/locking DisplayPort connector
- Supports EDID and MST
- Supports digital video and audio
- No separate power adapter required
- Black PVC cable jacket
- VW-1 cable jacket rating
- 24-bit true color
- HDCP 2.2 support
- Lifetime limited worldwide warranty
Specifications
| Specification | Details |
|---|
| Brand / Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | P583-006-BK |
| Product Type | Mini DisplayPort to DisplayPort Adapter Cable |
| Cable Length | 6 ft (1.8 m) |
| Connector A | DisplayPort Male |
| Connector B | Mini DisplayPort Male |
| Cable Type | Passive |
| Signal Transmission | Bidirectional |
| DisplayPort Standard | DisplayPort 1.2 |
| Maximum Resolution | 3840 × 2160 (4K) @ 60Hz |
| Maximum Resolution Capability | Up to 4096 × 2160 (4K × 2K) @ 60Hz |
| Bandwidth | HBR2, up to 21.6 Gbps |
| HDCP | 2.2 |
| Color Depth | 24-bit True Color |
| Connector Plating | Gold |
| Cable Jacket | PVC |
| Cable Jacket Rating | VW-1 |
| Color | Black |
| EDID Compatible | Yes |
| MST Support | Yes |
