Detailed Specifications

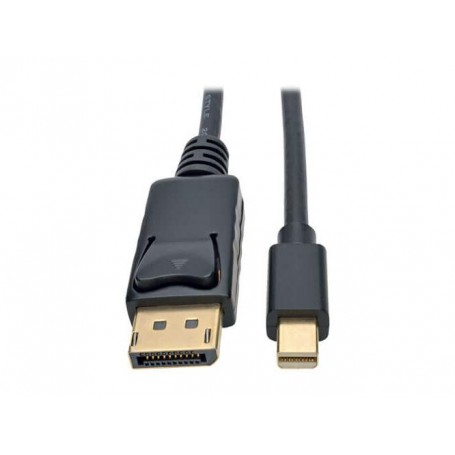

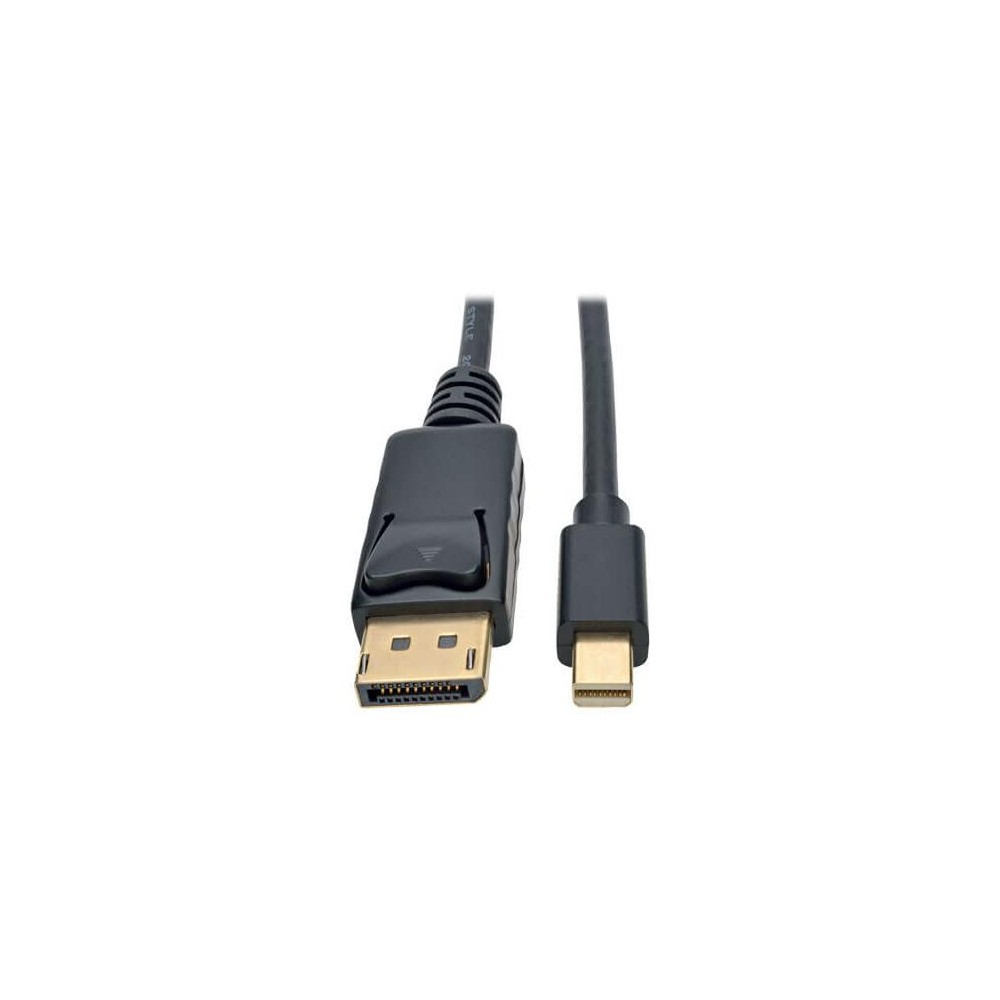

Eaton P583-010-BK 10 ft Mini DisplayPort to DisplayPort 4K Cable Compatible Tripp Lite
Overview
The P583-010-BK provides a direct connection between a Mini DisplayPort-equipped computer or laptop and a DisplayPort monitor, TV, projector, or digital signage display. It meets DisplayPort 1.2 standards and supports HBR2 bandwidth up to 21.6 Gbps. The cable is black, passive, and bidirectional according to Eaton's catalog classification.
Key Features
- 10 ft (3.05 m) cable length
- Mini DisplayPort Male to DisplayPort Male
- Supports resolutions up to 4096 × 2160 (4K × 2K) @ 60Hz
- Passive cable design
- DisplayPort 1.2 compliant
- Supports HBR2 bandwidth up to 21.6 Gbps
- Locking DisplayPort connector helps prevent accidental disconnection
- Gold-plated connectors and contacts
- Supports digital video and audio
- No separate power adapter required
- PVC cable jacket
- VW-1 flame rating
- Black finish
- Backward compatible with previous DisplayPort versions
- Lifetime limited warranty
Specifications
| Specification | Details |
|---|
| Brand / Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Model / Part Number | P583-010-BK |
| Product Type | Mini DisplayPort to DisplayPort Adapter Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector A | DisplayPort Male |
| Connector B | Mini DisplayPort Male |
| Cable Type | Passive, Bidirectional |
| Maximum Resolution | 4096 × 2160 (4K × 2K) @ 60Hz |
| DisplayPort Standard | DisplayPort 1.2 |
| Bandwidth | HBR2, up to 21.6 Gbps |
| Cable Jacket | PVC |
| Flame Rating | VW-1 |
| Color | Black |
| Connector Finish | Gold-Plated |
| Locking Connector | Yes, DisplayPort connector |
| Power Requirement | No separate power adapter |
