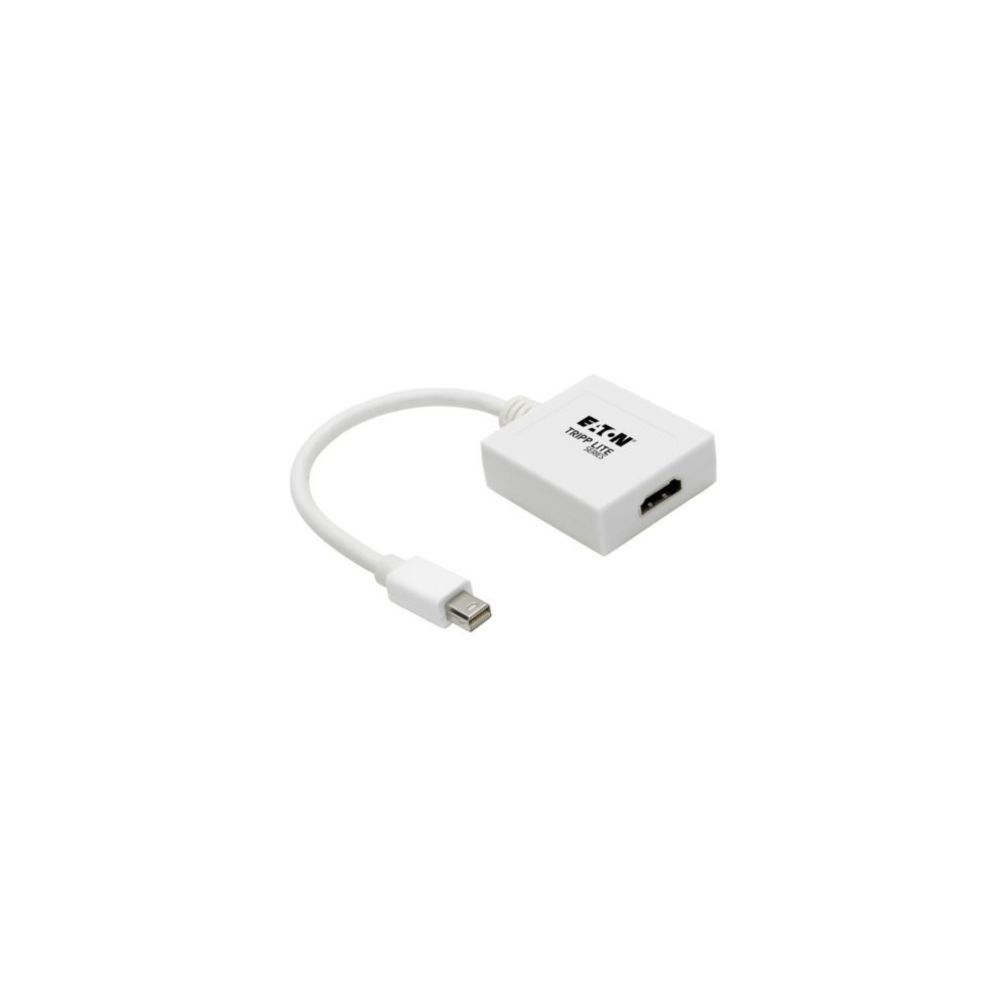

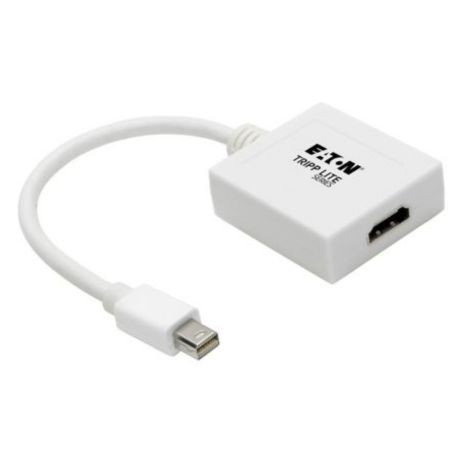

Eaton P137-06N-HDMI Tripp Lite Mini DisplayPort to HDMI Adapter 6 in
The Eaton Tripp Lite P137-06N-HDMI is a 6-inch passive Mini DisplayPort-to-HDMI adapter designed to connect a Mac or PC with a Mini DisplayPort output to an HDMI monitor or HDTV. Its compact pigtail design provides a Mini DisplayPort male connector and an HDMI female connector for use with a separate HDMI cable.
The adapter supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p). It can also transmit audio when the connected Mini DisplayPort source supports audio output.
Key Features
- Passive Mini DisplayPort-to-HDMI adapter for connecting an mDP source to an HDMI display
- Supports computer resolutions up to 1920 x 1200 and HD video up to 1080p
- Mini DisplayPort male to HDMI female configuration
- Compatible with Thunderbolt 1 and Thunderbolt 2 ports on supported Mac computers
- Plug-and-play operation without drivers or software
DC Supplies Product Note
The P137-06N-HDMI is a passive adapter, so the connected Mini DisplayPort source must support DP++ Dual-Mode output. This is the key compatibility check before ordering; an active Mini DisplayPort-to-HDMI adapter is needed when the source cannot pass HDMI through its mDP port.
Applications
- Connect a Mini DisplayPort Mac or PC to an HDMI monitor
- Connect a compatible Mac with Thunderbolt 1 or 2 to an HDMI display
- Connect Mini DisplayPort-equipped computers to HDMI HDTVs
- Use existing HDMI displays with compatible Mini DisplayPort systems
- Support office, classroom, presentation, and home AV connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite Keyspan |
| Part Number / MPN | P137-06N-HDMI |
| Product Type | Mini DisplayPort to HDMI Adapter Cable |
| Adapter Type | Passive |
| Mini DisplayPort Connector | Male |
| HDMI Connector | Female |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Resolution | 1920 x 1080 (1080p) |
| DisplayPort Requirement | DP++ / Dual-Mode |
| Audio | Supported when supported by the Mini DisplayPort source |
| HDCP | Compliant |
| Thunderbolt Compatibility | Thunderbolt 1 and 2 on compatible Mac computers |
| Cable Length | 6 in (15.2 cm) |
| Cable Type | Passive |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | White |
| Compliance | TAA Compliant |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Operating Humidity | 0–85% RH, non-condensing |
| Warranty | 3-year limited worldwide warranty |
| UPC | 037332171115 |
Package Contents
One Eaton Tripp Lite P137-06N-HDMI Mini DisplayPort-to-HDMI adapter cable, 6 inches.
Compatibility
The P137-06N-HDMI is intended for Mac or PC computers with a Mini DisplayPort output and HDMI-equipped displays. It is also compatible with Thunderbolt 1 and Thunderbolt 2 ports on supported Mac computers.
Because this is a passive adapter, the Mini DisplayPort source must support DP++ Dual-Mode output. The HDMI side is female, so a separate HDMI cable is required to connect the adapter to the display.
Frequently Asked Questions
Is the P137-06N-HDMI active or passive?
The P137-06N-HDMI is a passive Mini DisplayPort-to-HDMI adapter.
Does it require DP++?
Yes. The connected Mini DisplayPort source must support DP++ Dual-Mode operation to pass the HDMI signal through this passive adapter.
What resolution does the P137-06N-HDMI support?
It supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p).
Does it support audio?
Yes. Audio transmission is supported when the connected Mini DisplayPort source provides audio.
Does it work with Thunderbolt?
Yes. Eaton specifies compatibility with Thunderbolt 1 and Thunderbolt 2 ports on supported Mac computers.
Does it include an HDMI cable?
No. The adapter has an HDMI female connector, so a separate HDMI cable is required for connection to the display.
Does it require drivers or external power?
No. It is designed for plug-and-play operation without software or drivers, and no external power supply is required.
