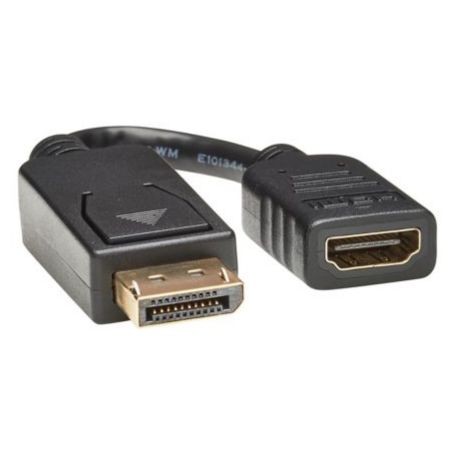

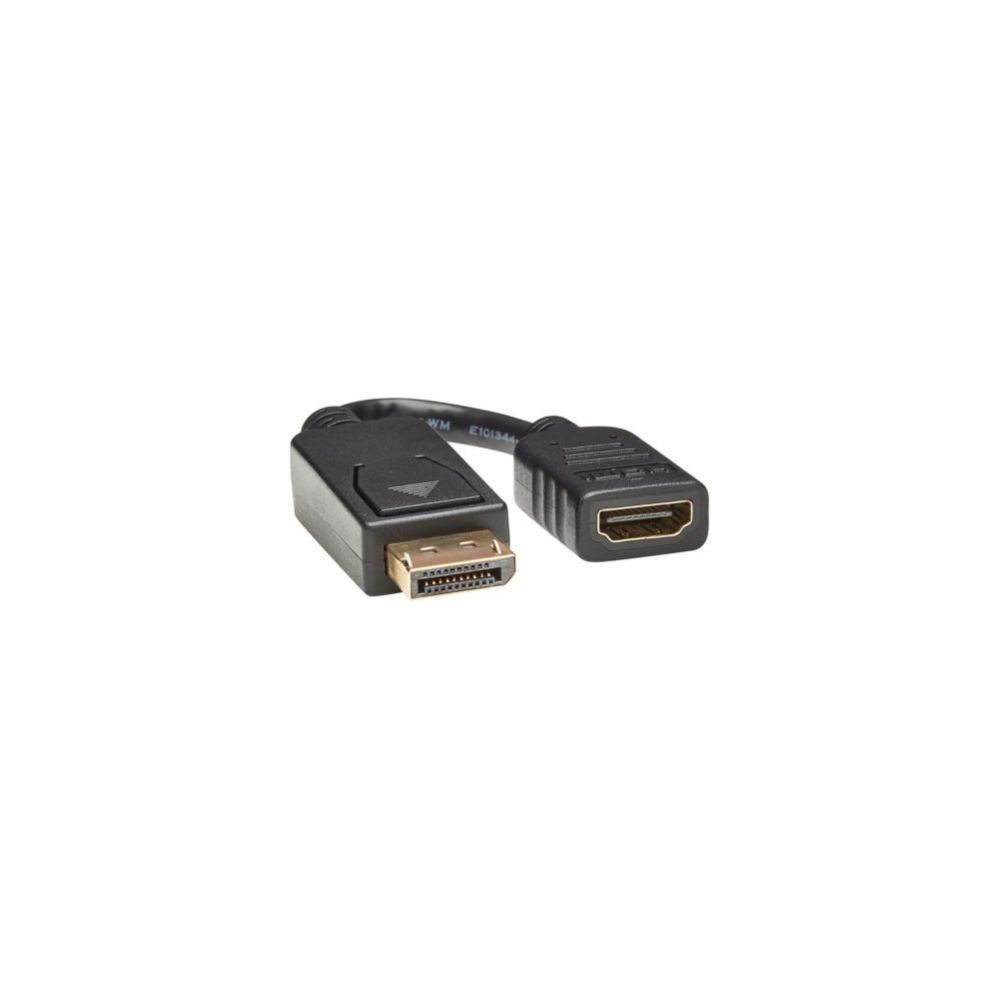

Eaton P136-000 Tripp Lite DisplayPort to HDMI Adapter Cable 6 in
The Eaton Tripp Lite P136-000 is a 6-inch passive DisplayPort-to-HDMI adapter cable designed to connect a computer with a DisplayPort output to an HDMI monitor, HDTV, or other compatible display. The compact pigtail design provides a DisplayPort male connector and an HDMI female receptacle for connection to a standard HDMI cable.
The adapter supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p). Because the P136-000 is passive, the connected DisplayPort source must support DP++ (DisplayPort Dual-Mode) to pass HDMI signals.
Key Features
- Passive DisplayPort-to-HDMI adapter for connecting a DP source to an HDMI display
- Supports computer resolutions up to 1920 x 1200 and HD video up to 1080p
- DisplayPort male connector to HDMI female receptacle
- Compact 6-inch pigtail design for short adapter connections
- Plug-and-play operation with no software required
DC Supplies Product Note
The P136-000 is the standard passive model in Eaton's DisplayPort-to-HDMI adapter family, so the DP++ requirement is important when selecting it. If the computer's DisplayPort output does not support Dual-Mode operation, an active DisplayPort-to-HDMI adapter is required instead.
Applications
- Connect a DisplayPort computer to an HDMI monitor
- Connect a DisplayPort workstation to an HDMI HDTV
- Reuse an existing HDMI display with a compatible DisplayPort computer
- Connect DisplayPort-equipped laptops or desktops to HDMI presentation displays
- Support office, classroom, conference-room, and home AV installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P136-000 |
| Product Type | DisplayPort to HDMI Adapter |
| Adapter Type | Passive |
| DisplayPort Connector | Male |
| HDMI Connector | Female |
| DisplayPort Specification | DisplayPort 1.1 |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Resolution | 1920 x 1080 (1080p) |
| DisplayPort Requirement | DP++ / Dual-Mode |
| Audio | 7.1-channel surround sound |
| Cable Length | 6 in (15.24 cm) |
| Cable Length | 0.5 ft |
| Cable Type | Round |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Connector Plating | Gold |
| Color | Black |
| Installation | Plug and play |
| Drivers Required | No |
| Warranty | 3-year limited worldwide warranty |
| Compliance | RoHS |
| UPC | 037332148056 |
Package Contents
One Eaton Tripp Lite P136-000 DisplayPort-to-HDMI adapter cable, 6 inches.
Compatibility
The P136-000 is intended for computers, workstations, laptops, and other compatible devices with a DisplayPort output and HDMI-equipped displays. The DisplayPort source must support DP++ Dual-Mode operation because this is a passive adapter.
The HDMI side is female, so a separate HDMI cable with a male HDMI connector is required to connect the adapter to the display.
Frequently Asked Questions
Is the P136-000 active or passive?
The P136-000 is a passive DisplayPort-to-HDMI adapter. It relies on the source's DP++ Dual-Mode capability to pass the HDMI signal.
What resolution does the P136-000 support?
It supports computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p).
Does the P136-000 require DP++?
Yes. Because it is passive, the connected DisplayPort output must support DP++ Dual-Mode operation.
Does it support audio?
Yes. Eaton specifies support for 7.1-channel surround sound.
Does it include an HDMI cable?
No. The adapter has an HDMI female receptacle, so a separate HDMI cable is required for connection to the display.
Does it require drivers or external power?
No. The P136-000 is designed for plug-and-play operation without software or drivers.
