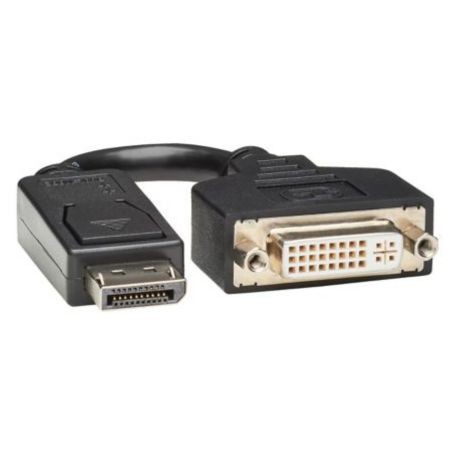

Eaton P134-000 Tripp Lite DisplayPort to DVI I Adapter Cable 6 in

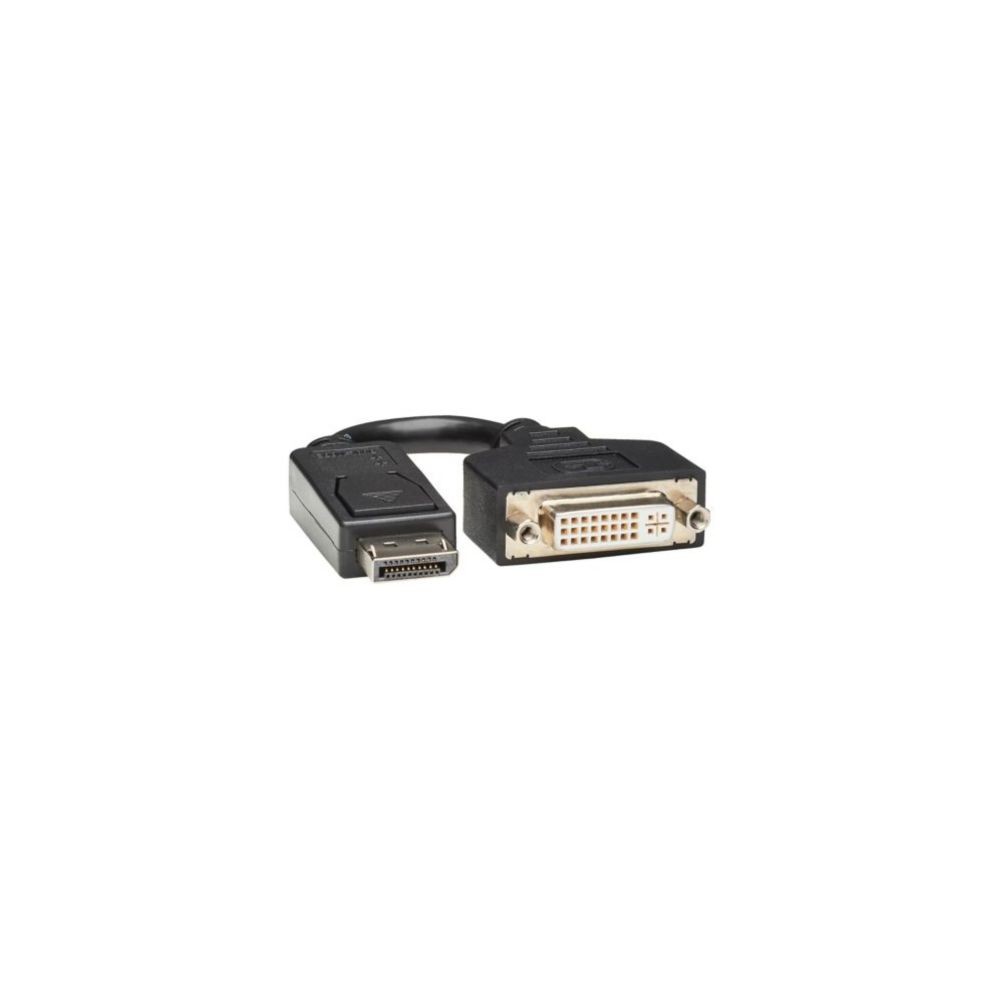

The Eaton Tripp Lite P134-000 is a 6-inch passive DisplayPort-to-DVI-I adapter cable designed to connect a computer with a DisplayPort output to a DVI monitor. The compact pigtail design provides a DisplayPort male connector on one end and a DVI-I female connector on the other.
The adapter supports DVI-D single-link computer video resolutions up to 1920 x 1200 and HD resolutions up to 1080p. Because the P134-000 is passive, the connected DisplayPort source must provide a DP++ (DisplayPort Dual-Mode) output capable of passing DVI signals.
Key Features
- Passive DisplayPort-to-DVI-I adapter for connecting a DisplayPort computer to a DVI display
- Supports DVI-D single-link resolutions up to 1920 x 1200 and HD resolutions up to 1080p
- DisplayPort male to DVI-I dual-link female connector, wired for DVI-D single-link operation
- 6-inch compact pigtail design for short source-to-adapter connections
- Plug-and-play operation with no drivers or software required
DC Supplies Product Note
The most important installation detail with the P134-000 is that it is passive and therefore requires a DP++ DisplayPort output. Check the computer or graphics card specifications before ordering; an active DisplayPort-to-DVI adapter is needed when the source does not provide Dual-Mode DP++ output.
Applications
- Connect a DisplayPort desktop computer to a DVI monitor
- Connect a DisplayPort workstation to a DVI-equipped display
- Reuse existing DVI monitors with compatible DisplayPort computers
- Support office, classroom, conference-room, and workstation display connections
- Connect compatible DisplayPort graphics cards to DVI displays
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P134-000 |
| Product Type | DisplayPort to DVI-I Adapter Cable |
| Adapter Type | Passive |
| DisplayPort Connector | Male |
| DVI Connector | DVI-I Dual-Link Female, wired to DVI-D Single-Link |
| DisplayPort Version | 1.1 / 1.2 / 1.4 / 2.1 source compatibility with DP++ |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Resolution | 1920 x 1080 (1080p) |
| DisplayPort Requirement | DP++ Dual-Mode |
| Cable Length | 6 in (15.24 cm) |
| Cable Type | Passive, round |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| HDCP / DDC | Pass-through |
| Installation | Plug and play |
| Drivers Required | No |
| TAA Compliant | Yes |
| Warranty | 3-year limited worldwide warranty |
| UPC | 037332148292 |
Package Contents
One Eaton Tripp Lite P134-000 DisplayPort-to-DVI-I adapter cable, 6 inches.
Compatibility
The P134-000 is designed for a computer, workstation, laptop, server, or other compatible source with a DP++ DisplayPort output and a DVI-equipped monitor or HDTV. The adapter's DVI-I female connector is wired for DVI-D single-link operation.
A separate DVI cable may be required between the adapter and display depending on the display's connector and cable arrangement. The P134-000 does not perform active signal conversion and does not require external power.
Frequently Asked Questions
Is the P134-000 an active or passive adapter?
The P134-000 is a passive DisplayPort-to-DVI adapter. It relies on a DP++ Dual-Mode DisplayPort output from the connected computer or graphics card.
What resolution does the P134-000 support?
It supports DVI-D single-link computer video resolutions up to 1920 x 1200 and HD resolutions up to 1920 x 1080 (1080p).
What type of DVI connector does it have?
The adapter has a DVI-I dual-link female connector that is wired to DVI-D single-link operation.
Does the P134-000 require DP++?
Yes. Eaton specifies that the passive adapter requires a DP++ Dual-Mode DisplayPort port capable of passing DVI signals.
Does it require drivers or external power?
No. The P134-000 is plug-and-play and does not require software, drivers, or an external power supply.
Is the P134-000 the same as an active DisplayPort-to-DVI adapter?
No. The P134-000 is passive. If the source does not provide DP++ output, an active DisplayPort-to-DVI adapter is required instead.
