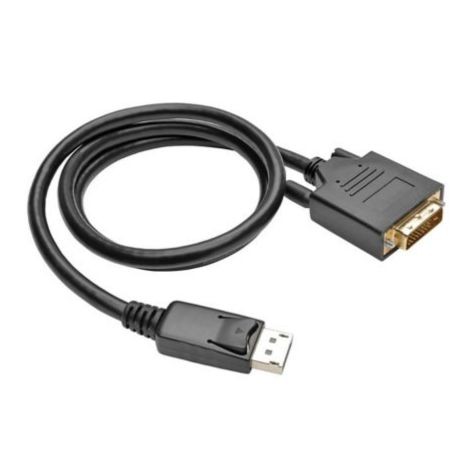

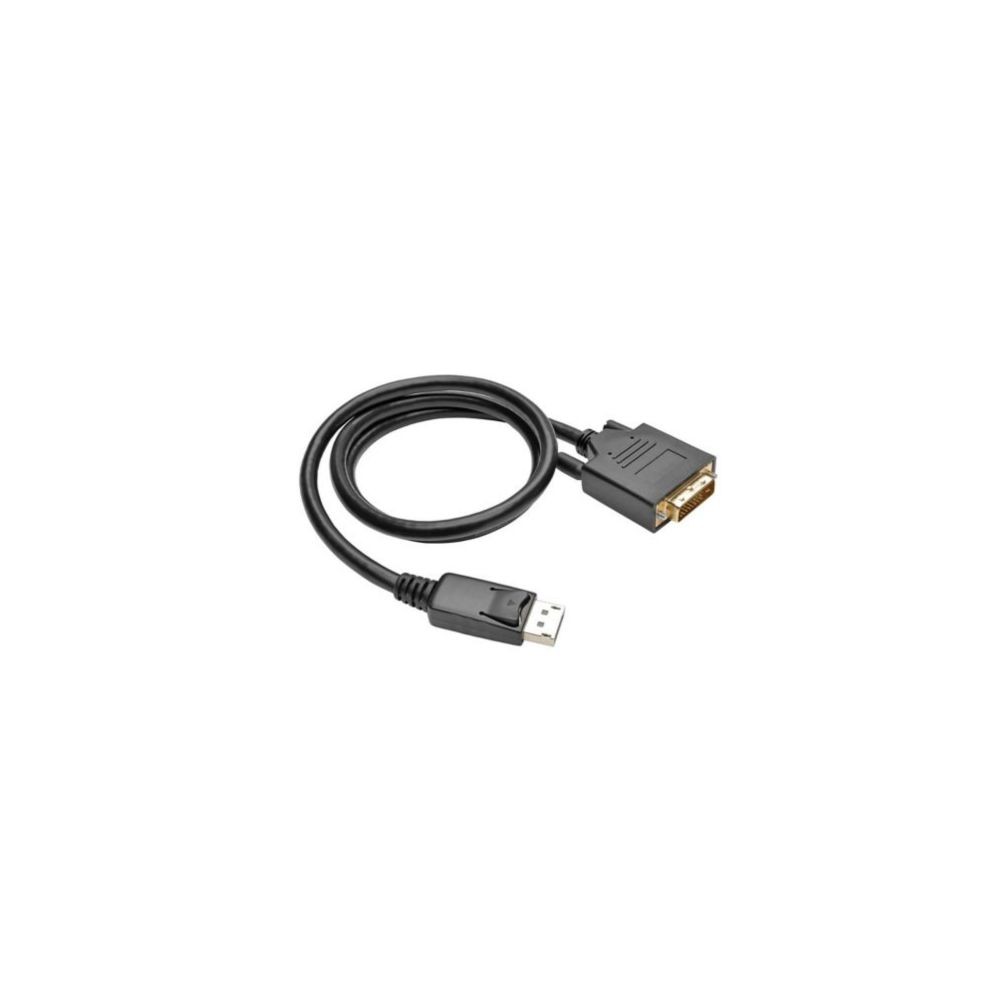

Eaton P581-003-V2 Tripp Lite DisplayPort 1 2 to DVI D Active Adapter Cable 3 ft
The Eaton Tripp Lite P581-003-V2 is a 3 ft active adapter cable that connects a DisplayPort-equipped computer to a DVI-D display, projector, or television. It uses a DisplayPort 1.2 male connector with a latching mechanism and a DVI-D Dual Link male connector wired for DVI-D Single Link operation.
As an active adapter, the P581-003-V2 converts the DisplayPort signal and can be used with DisplayPort sources including systems that do not provide a DP++ dual-mode output. It supports computer resolutions up to 1920 x 1200 and HD video up to 1920 x 1080 (1080p).
Key Features
- Active DisplayPort 1.2 to DVI-D adapter cable
- 3 ft (0.9 m) cable length
- DisplayPort male connector with latching mechanism
- DVI-D Dual Link male connector wired to DVI-D Single Link
- Supports up to 1920 x 1200 computer resolution and 1080p HD video
DisplayPort to DVI Connectivity
The P581-003-V2 provides a direct cable connection between a DisplayPort source and a compatible DVI-D display. Its active design is intended for DisplayPort outputs regardless of whether the source provides DP++ dual-mode signaling, making it suitable for connecting newer DisplayPort computers to compatible DVI monitors, projectors, and televisions.
Construction
The cable has a black PVC, VW-1 rated jacket and uses foil and braid shielding. Eaton specifies gold-plated connectors and contacts, 24-bit True Color, molded construction, and a latching or gripping DisplayPort connector. The cable is round and 3 ft long.
Applications
- DisplayPort computers to DVI-D monitors
- DisplayPort graphics cards to DVI displays
- Computers to DVI projectors
- Digital signage using compatible DVI displays
- DisplayPort systems requiring active DVI conversion
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P581-003-V2 |
| Product Type | DisplayPort to DVI-D Active Adapter Cable |
| Cable Type | Active |
| Cable Length | 3 ft (0.9 m) |
| Connector A | DisplayPort Male |
| Connector B | DVI-D Dual Link Male, wired to DVI-D Single Link |
| DisplayPort Specification | 1.2 |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Video Resolution | 1920 x 1080 (1080p) |
| Color Depth | 24-bit True Color |
| DisplayPort Connector | Latching / gripping |
| Connector Plating | Gold-plated |
| Contact Plating | Gold-plated |
| Shielding | Foil and braid |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Operating Humidity | 10–85% RH, non-condensing |
| Storage Humidity | 5–90% RH, non-condensing |
| Compliance | RoHS |
| UPC | 037332191960 |
| Warranty | 3-year limited warranty |
Package Contents
1 x Eaton Tripp Lite P581-003-V2 DisplayPort 1.2 to DVI Active Adapter Cable, 3 ft.
Frequently Asked Questions
Is the P581-003-V2 an active adapter cable?
Yes. It contains active signal-conversion circuitry and is designed for DisplayPort-to-DVI connections without requiring a separate adapter.
What resolution does the P581-003-V2 support?
Eaton specifies computer video resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p).
What connectors does it have?
One end has a DisplayPort male connector with a latching mechanism. The other has a DVI-D Dual Link male connector wired to DVI-D Single Link.
Does it require a DP++ DisplayPort output?
No. Eaton specifies the P581-003-V2 as an active adapter for use with any DisplayPort port, including sources that do not output DP++ signals.
Can it connect a DisplayPort computer to a DVI monitor?
Yes. It is designed to connect a DisplayPort-equipped computer or graphics source to a compatible DVI display, projector, or television.
