Detailed Specifications

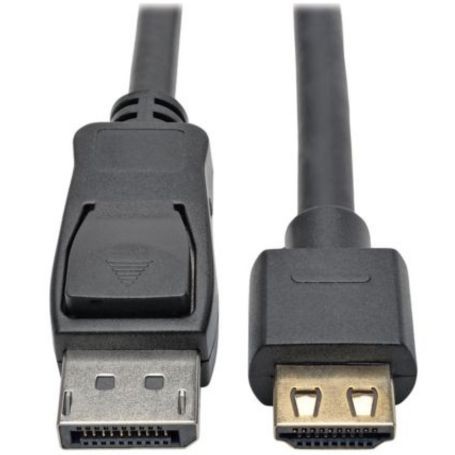

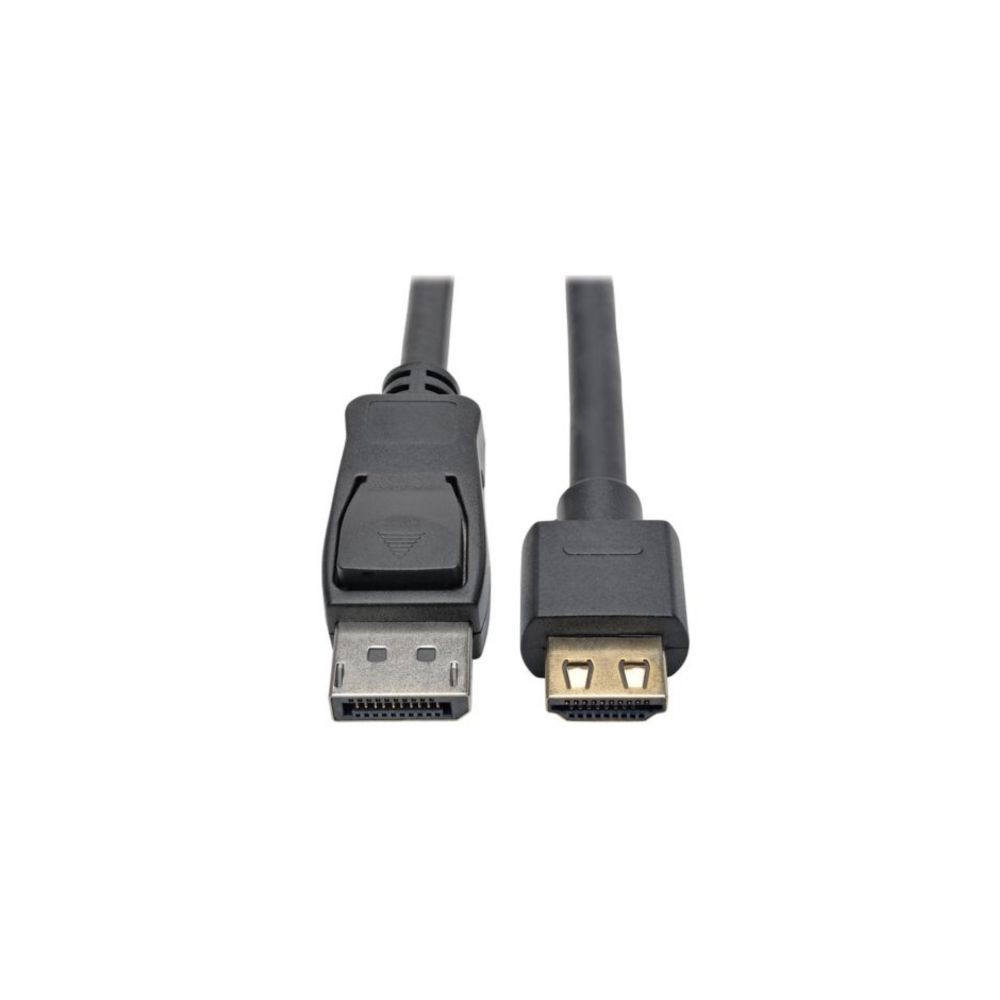

Eaton P582-006-HD-V4A Tripp Lite DisplayPort 1.4 HDMI Active Adapter Cable (M/M), 4K 60 Hz, 4:4:4, HDR, HDCP 2.2, 6 ft. (1.8 m)
Overview
The Eaton P582-006-HD-V4A is a 6-foot active DisplayPort 1.4-to-HDMI adapter cable with male DisplayPort and male HDMI connectors. It connects a DisplayPort-equipped computer or graphics source to an HDMI monitor, projector, television, or compatible display. Eaton specifies a 1.83 m cable length and 4K 60 Hz capability.
The cable supports 3840 × 2160 at 60 Hz with 4:4:4 chroma, HDR, HDCP 2.2, DSC, EDID, and digital audio including 8-channel LPCM. Its active conversion supports both single-mode and dual-mode DisplayPort outputs.
It is suited to workstations, digital-signage players, conference rooms, classrooms, and professional AV installations. It should not be used for the reverse HDMI-source-to-DisplayPort direction because this cable is designed for DisplayPort output to HDMI input.
Key Features
- Supports 4K resolution at 60 Hz with 4:4:4 chroma
- Active DisplayPort 1.4 to HDMI signal conversion
- Supports HDR and HDCP 2.2 protected video content
- DSC enables high-resolution video transmission
- Latching and gripping connectors improve connection security
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P582-006-HD-V4A |
| Product Type | Active DisplayPort to HDMI Adapter Cable |
| Cable Length | 6 ft (1.83 m) |
| Connector A | DisplayPort Male |
| Connector B | HDMI Male |
| DisplayPort Version | 1.4 |
| Adapter Type | Active |
| Maximum Resolution | 3840 × 2160 |
| Maximum Refresh Rate | 60 Hz |
| Chroma Sampling | 4:4:4 |
| HDR Support | Yes |
| HDCP | HDCP 2.2 |
| DSC | Supported |
| Cable Gauge | 30 AWG |
| Cable Diameter | 7.3 mm |
| Cable Jacket | PVC |
| Jacket Rating | VW-1 |
| Shielding | Unshielded |
| Color | Black |
| Compliance | TAA |
