Detailed Specifications

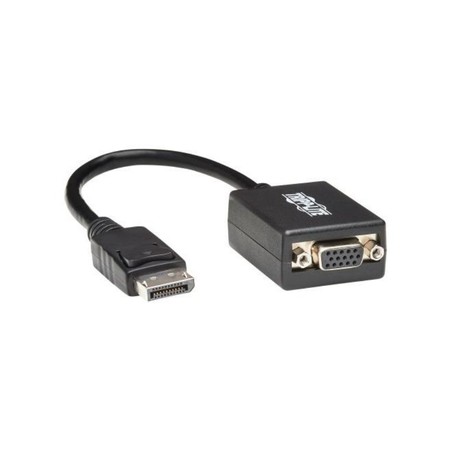

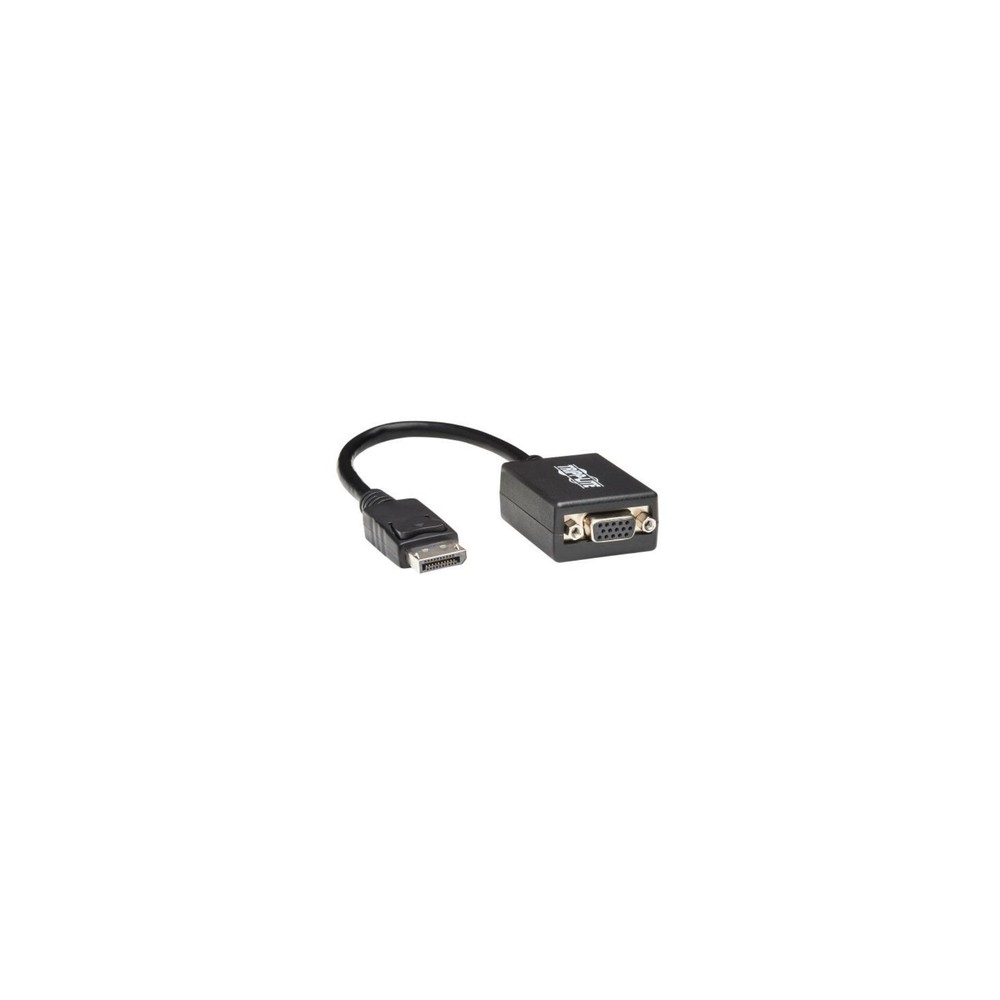

Eaton P134-06N-VGA-BP 50-Pack DisplayPort to VGA Active Adapter Compatible Tripp Lite
Overview :
The Eaton P134-06N-VGA-BP is a 50-pack of active DisplayPort-to-VGA video adapters designed to connect computers and graphics cards with DisplayPort outputs to monitors or projectors with VGA inputs. The adapter supports both Single-Mode and Dual-Mode (DP++) DisplayPort output.
It supports computer resolutions up to 1920 × 1200 and HD video up to 1080p, making it suitable for offices, classrooms, conference rooms, presentations and enterprise deployments where existing VGA displays need to remain in service. The plug-and-play design requires no additional drivers or software.
Key Features :
- 50-piece bulk pack
- Active DisplayPort-to-VGA conversion
- DisplayPort male to HD15 VGA female
- Supports Single-Mode and Dual-Mode (DP++) output
- Supports resolutions up to 1920 × 1200
- Supports HD video up to 1080p
- 6-inch (15.24 cm) adapter cable
- Plug-and-play operation
- No drivers or software required
- Black ABS/PVC construction
- Gold-plated contacts
- Suitable for VGA monitors and projectors
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P134-06N-VGA-BP |
| Product Type | DisplayPort to VGA Active Adapter |
| Package Quantity | 50 |
| Connector 1 | DisplayPort Male |
| Connector 2 | HD15 / VGA Female |
| DisplayPort Specification | 1.1a |
| Technology | DisplayPort, VGA/SVGA |
| Maximum Video Resolution | 1920 × 1200 / 1080p |
| Cable Length | 6 in. (15.24 cm) |
| Cable Jacket | PVC |
| Cable Jacket Rating | VW-1 |
| Material | ABS, PVC |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Color | Black |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Compliance | RoHS, REACH, FCC, CE |
