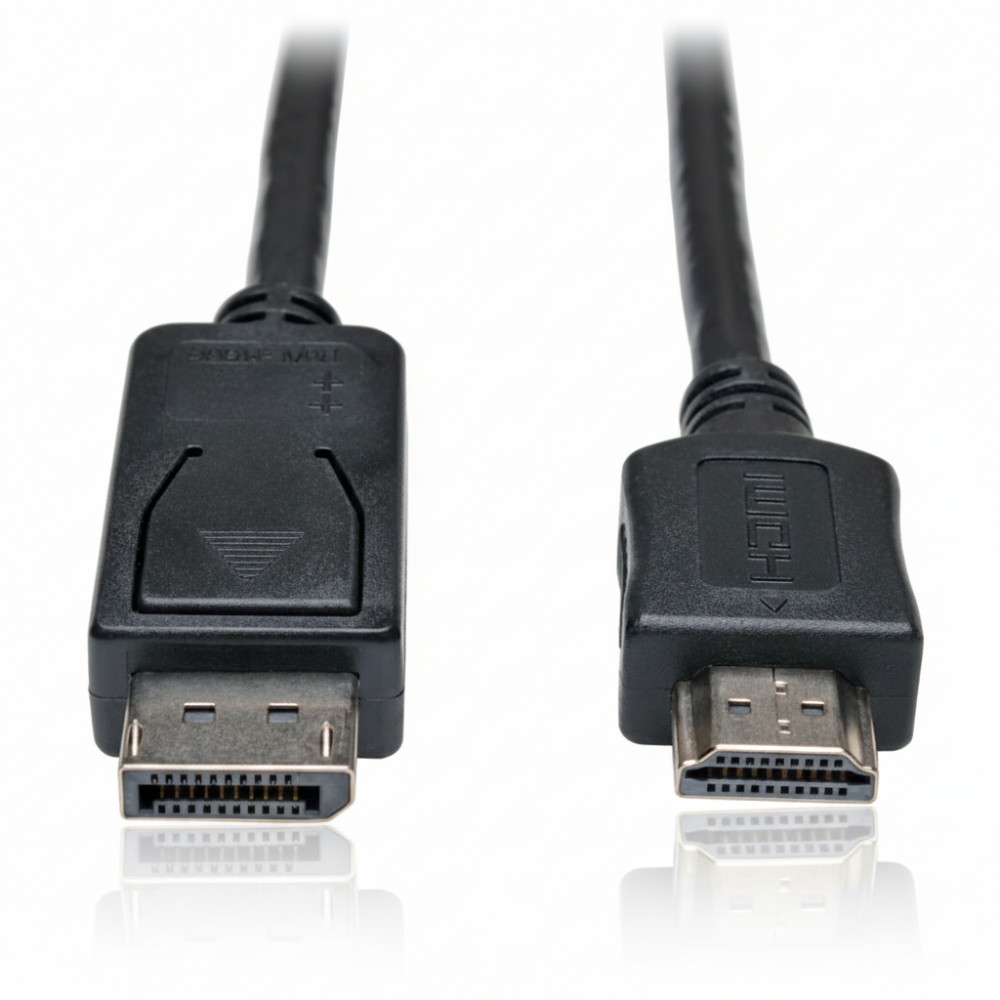

Eaton P582-003 DisplayPort to HDMI Cable 1080p

Overview :

The Eaton P582-003 is a passive DisplayPort to HDMI adapter cable designed to connect DisplayPort-equipped source devices directly to HDMI displays. It is deployed by IT engineers, AV technicians, and workstation administrators who need to interface modern DisplayPort outputs with HDMI-based monitors, projectors, or TVs without introducing active conversion hardware. The cable enables continuity in mixed-interface environments without replacing installed display infrastructure.

From a technical deployment standpoint, the cable supports digital video and audio transmission over a single link, with resolutions up to 1920 × 1080 (1080p). It operates as a passive inline adapter and requires a dual-mode DisplayPort (DP++) source for signal conversion. This design minimizes latency and eliminates the need for external power or chip-based signal processing while maintaining compatibility with standard HDMI display devices.

This cable is typically deployed at the edge layer in workstation environments, conference rooms, classrooms, and light AV installations. It is commonly used to connect desktop GPUs, laptops, or docking stations with DisplayPort outputs to HDMI monitors or projectors. The 0.91 m (3 ft) cable length aligns with short-range endpoint connectivity, particularly in deskside and rack-adjacent deployments.

Integration is straightforward within DisplayPort and HDMI ecosystems, supporting plug-and-play operation with no driver or software requirements. The cable supports HDCP for protected content playback and transmits audio when supported by the DisplayPort source. Its male-to-male configuration eliminates the need for separate adapters, reducing connection points and potential failure interfaces.

In a practical deployment scenario, the cable is used to connect a workstation or server GPU with DisplayPort output to an HDMI-based monitor in a lab, staging area, or KVM environment. It is also used in temporary setups where rapid deployment and minimal hardware footprint are required.

This device should not be used in environments where the DisplayPort source does not support DP++ output, as passive conversion will not function. It is also not suitable for 4K or high-refresh-rate display requirements, or for long-distance structured cabling where active adapters or extenders are necessary.

Key Features

• DisplayPort male to HDMI male cable
• Supports 1080p video and audio transmission
• Passive design requiring DP++ source port
• Inline adapter eliminates separate converter
• 0.91 m cable for short-range connections

Technical Specifications
