Detailed Specifications
Eaton U444-006-DP-BE USB-C to DisplayPort 4K60 HDR Adapter Cable
Overview :
The Eaton U444-006-DP-BE is a passive USB-C to DisplayPort adapter cable designed for audio/video signal extension from a USB-C source to a DisplayPort monitor or display. It is used by IT engineers, AV integrators, and facilities technicians to connect modern laptops, tablets, or mobile devices with USB-C outputs directly to DisplayPort-equipped screens without additional converters. This adapter solves the challenge of connecting USB-C devices to DisplayPort displays in conference rooms, labs, and production environments.
This cable supports DisplayPort Alternate Mode over USB-C and passes 4K UHD video at 3840 × 2160 resolution @ 60 Hz with HDR support, ensuring high-quality imagery for presentations, signage, or workstation displays. The DisplayPort 1.2 specification underpins the video link, and the adapter carries HDCP 2.2 compliance for protected content playback.

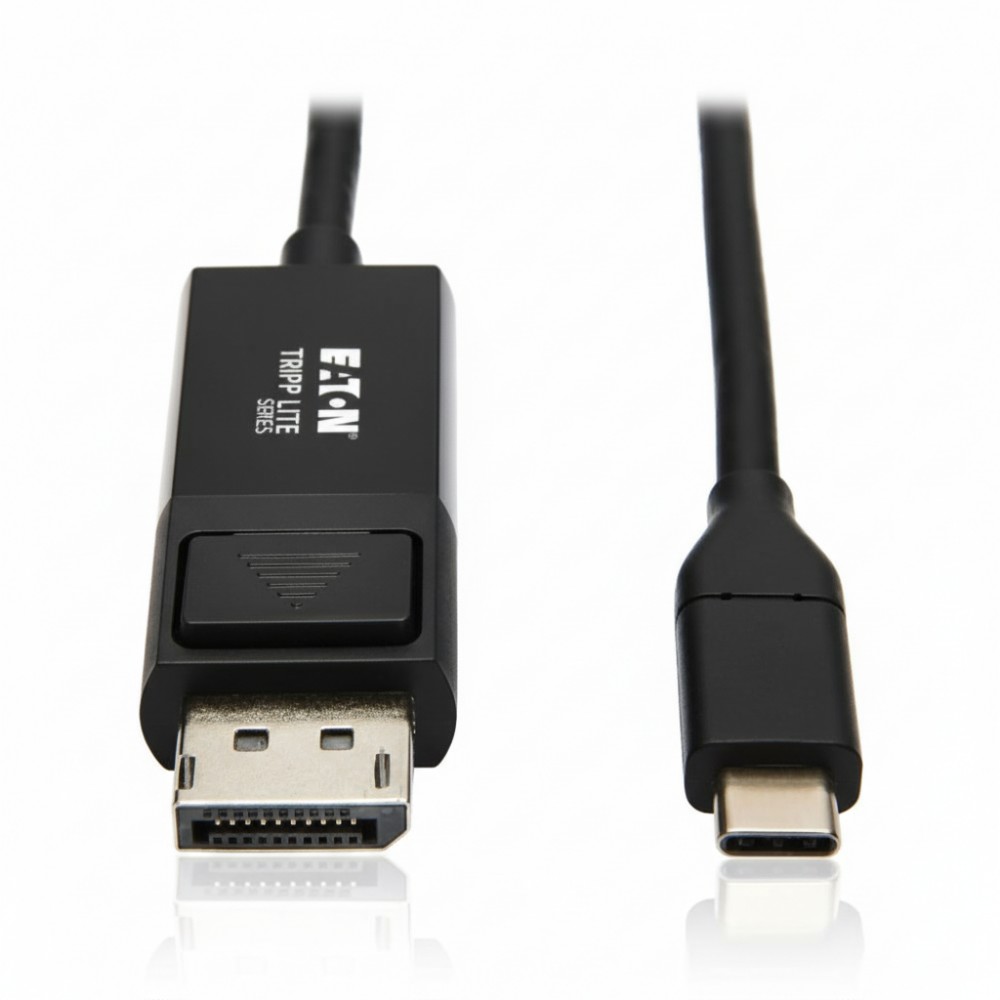

Mechanically, the U444-006-DP-BE is a 6 ft (1.83 m) cabling solution with a reversible USB-C male connector on the source end and a locking DisplayPort male connector on the display end to reduce accidental disconnects in rack-mounted or desktop cabling runs. The cable's jacket meets standard flammability ratings and is built for typical indoor AV infrastructure use.
Integration is plug-and-play with no drivers or external power required; it functions as a passive extension constrained by the source's implementation of DisplayPort Alt Mode and the display's support for DisplayPort inputs. The adapter is not suitable for video extensions requiring active signal boost, Ethernet over DP, or conversion to HDMI without a separate converter.
Typical deployments include USB-C laptop connection to high-resolution DisplayPort monitors in meeting rooms, classrooms, or digital signage systems. It is not intended for mission-critical managed AV systems needing remote diagnostics or power delivery beyond standard USB Alt Mode capabilities.
Key Features
- 6 ft passive USB-C to DisplayPort adapter cable
- Supports up to 4K UHD @ 60 Hz with HDR video
- Reversible USB-C male plug for easy source connection
- Locking DisplayPort male plug prevents accidental disconnects
- HDCP 2.2 compliant for protected content playback
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | U444-006-DP-BE |
| Product Type | USB-C to DisplayPort Adapter Cable |
| USB Standard | USB 3.1 Gen 1 (up to 5 Gbps) |
| Video Interface | DisplayPort 1.2 |
| Maximum Resolution | 3840 × 2160 @ 60 Hz |
| HDR Support | Yes |
| HDCP Support | HDCP 2.2 |
| Connector A | USB-C Male |
| Connector B | DisplayPort Male (locking) |
| Cable Length | 6 ft (1.83 m) |
| Cable Jacket | VW-1 rated PVC |
| Contact Plating | Gold |
| Cable Color | Black |
| Operating Temp | 0 °C to 45 °C |
| Humidity (Operating) | 10 %-85 % non-condensing |
| Storage Temp | -10 °C to 70 °C |
| Compliance | CE, FCC, RoHS, REACH |
