Overview

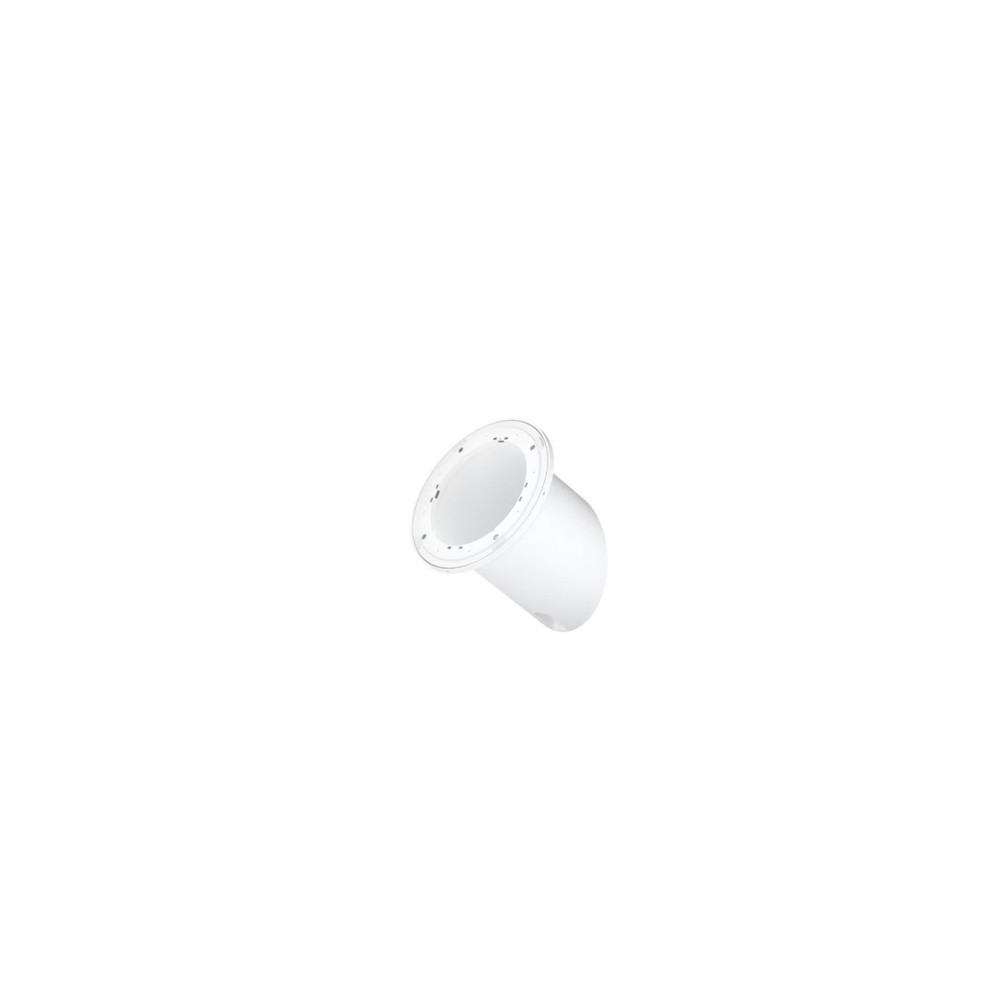

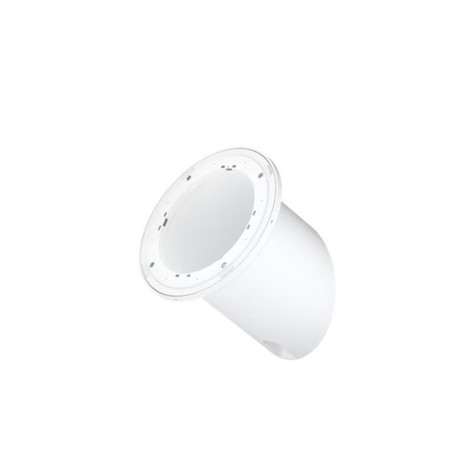

The Ubiquiti UACC-DISPLAY-SM is a surface mounting accessory for the UniFi Connect Display. It secures the display to a wall while positioning the screen at a fixed 60° presentation angle.
The mount supports both landscape and portrait display orientation and uses magnetic connectors for snap-on installation. An included security screw kit provides the hardware needed for secure wall mounting.
Compatibility and Installation
The UACC-DISPLAY-SM is designed specifically for the UniFi Connect Display, model UC-Display. It is a dedicated display mount rather than a universal monitor bracket.
The mount attaches to the wall using its mounting hardware, after which the Connect Display can be attached through the integrated magnetic connectors. The fixed 60° presentation angle cannot be adjusted.
Key Features
- Designed for the Ubiquiti UniFi Connect Display
- Fixed 60° presentation angle
- Supports landscape and portrait orientations
- Magnetic connectors enable snap-on display installation
- Aluminum construction with included security screw kit
Applications
The UACC-DISPLAY-SM is intended for wall-mounted UniFi Connect Display installations in locations such as offices, reception areas, meeting spaces, retail environments, and other areas where a fixed angled presentation is suitable.
DC Supplies Product Note
Because the presentation angle is fixed at 60°, confirm the intended viewing position and wall location before installation. The mount can accommodate either landscape or portrait orientation, providing flexibility without changing the mounting hardware.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-DISPLAY-SM |
|---|
| Product Type | Display surface mount |
|---|
| Product Family | UniFi Connect |
|---|
| Compatible Display | UC-Display |
|---|
| Mounting Type | Surface / wall mount |
|---|
| Orientation | Landscape or portrait |
|---|
| Presentation Angle | Fixed 60° |
|---|
| Connector Type | Magnetic connectors |
|---|
| Security Hardware | Security screw kit included |
|---|
| Enclosure Material | Aluminum |
|---|
| Dimensions | Ø9.17 × 9.22 in |
|---|
| Weight | 4.6 lb |
|---|
| Compliance | RoHS, REACH |
|---|
FAQs
What display is the UACC-DISPLAY-SM compatible with?
The mount is designed for the Ubiquiti UniFi Connect Display, model UC-Display.
Can the display be installed in portrait orientation?
Yes. The mount supports both landscape and portrait positioning.
Is the viewing angle adjustable?
No. The UACC-DISPLAY-SM provides a fixed 60° presentation angle.
How does the display attach to the mount?
The mount uses magnetic connectors for snap-on installation of the compatible Connect Display.
Is the security mounting hardware included?
Yes. Ubiquiti specifies an included security screw kit for wall mounting.
