Overview

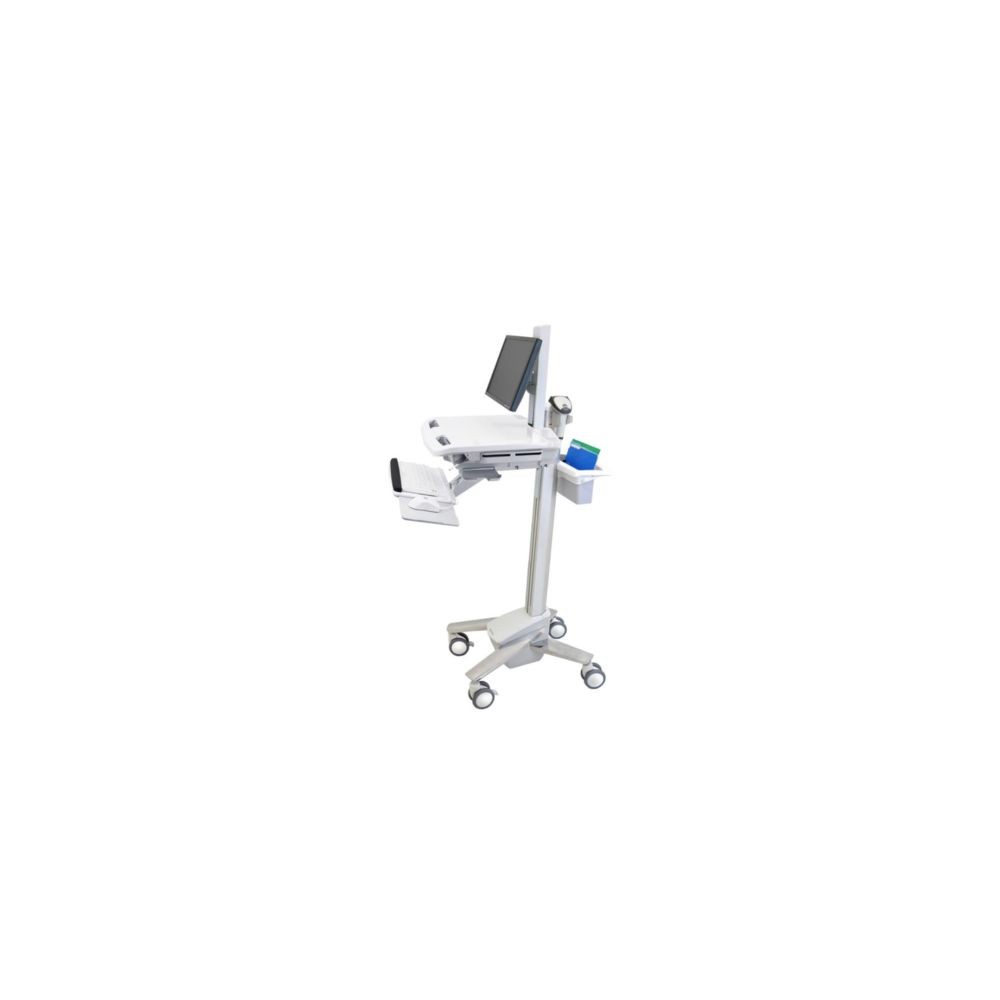

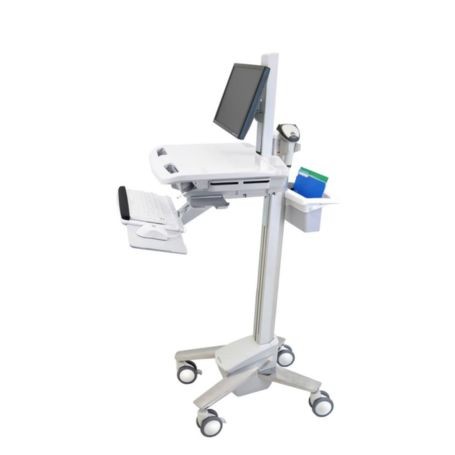

The Ergotron SV41-6300-0 StyleView LCD Pivot Cart is a mobile workstation designed for healthcare facilities and professional clinical environments. Its height-adjustable structure, pivoting monitor mount, ergonomic keyboard tray, and mobile base help users access computer systems from different working positions.
Sit-Stand Height Adjustment
The workstation provides 25 inches (63.5 cm) of height adjustment, allowing the work surface and monitor to move together to accommodate seated and standing users. Ergotron Constant Force technology supports smooth positioning and convenient adjustment throughout the workday.
Adjustable LCD Pivot Mount
The integrated LCD pivot mount supports compatible displays up to 24 inches, subject to weight and mounting requirements. The monitor offers up to 25 degrees of tilt, 24 degrees of pan, and 90 degrees of rotation to help users adjust screen positioning for different tasks and viewing preferences.
The mount supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm. Confirm the monitor's mounting pattern, weight, and dimensions before installation.
Ergonomic Keyboard and Mouse Workspace
The workstation includes an adjustable back-tilt keyboard tray with a wrist rest and a mouse tray that can be configured for left- or right-handed use. Side-to-side keyboard movement helps users reposition the work area without moving the entire cart.
Mobility and Storage
Four 4-inch (10.2 cm) casters provide mobility around clinical and office environments, with two front casters that lock to help secure the cart when stationary. A rear storage basket keeps frequently used items nearby, while the column's T-slot interface supports compatible accessories.
Key Features
- 25 inches (63.5 cm) of sit-stand height adjustment.
- LCD pivot mount with tilt, pan, and rotation adjustment.
- Supports compatible monitors up to 24 inches and 35 lb (15.9 kg) maximum cart load.
- Ergonomic keyboard tray with wrist rest and reversible mouse-tray positioning.
- Four 4-inch casters, two front locking casters, and a rear storage basket.
Cable Management and Expandability
The cart includes cable-management features to help organize connected equipment. Its T-slot column can accommodate compatible storage and mounting accessories. Optional drawers, bins, trays, and power systems may be available separately; check the exact configuration before ordering.
Typical Applications
- Hospital wards and patient-care areas
- Electronic medical record access stations
- Clinical documentation and point-of-care computing
- Healthcare facilities requiring mobile computer workstations
DC Supplies Product Note
The Ergotron SV41-6300-0 is the white StyleView SV41 configuration with an LCD pivot mount. It is a non-powered cart configuration. The monitor, computer, keyboard, mouse, and optional accessories should not be assumed to be included unless explicitly specified in the seller's package details.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | SV41-6300-0 |
|---|
| Product Type | Mobile LCD pivot workstation cart |
|---|
| Product Series | StyleView SV41 |
|---|
| Configuration | LCD Pivot |
|---|
| Colour | White, grey, and polished aluminium |
|---|
| Recommended Display Size | Up to 24 inches |
|---|
| Maximum Cart Load Capacity | 35 lb (15.9 kg) |
|---|
| Height Adjustment | 25 inches (63.5 cm) |
|---|
| Monitor Tilt | 25 degrees |
|---|
| Monitor Pan | 24 degrees |
|---|
| Monitor Rotation | 90 degrees |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Work Surface Dimensions | 22.4 x 19.75 inches (56.7 x 50.2 cm) |
|---|
| Base Dimensions | 17 x 21 inches (43 x 53.3 cm), wheel-to-wheel |
|---|
| Cart Weight | 59 lb (26.8 kg) |
|---|
| Casters | Four 4-inch (10.2 cm) casters; two front casters lock |
|---|
| Materials | Plastic, aluminium, and zinc-plated steel |
|---|
| Power Configuration | Non-powered; compatible power accessories may be available separately |
|---|
| Included Components | StyleView cart, LCD pivot mount, keyboard tray, wrist rest, mouse holder, scanner holder, handle, rear storage basket, and cable-management components |
|---|
| Warranty | 5 years for mechanical components; 1 year for electrical components where applicable |
|---|
| GTIN / UPC | 698833022599 |
|---|
Frequently Asked Questions
1. What is the Ergotron SV41-6300-0 used for?
It is a mobile workstation designed for clinical and healthcare environments, providing an adjustable monitor, keyboard workspace, and mobile base.
2. What monitor size does this cart support?
The recommended display size is up to 24 inches. Actual compatibility depends on the monitor's weight and VESA mounting pattern.
3. How much height adjustment is available?
The cart provides 25 inches (63.5 cm) of vertical adjustment for seated and standing use.
4. Can the monitor be rotated?
Yes. The LCD pivot mount supports up to 25 degrees of tilt, 24 degrees of pan, and 90 degrees of rotation.
5. Does this model include a power system?
No. The SV41-6300-0 is a non-powered configuration. Compatible power accessories may be available separately.
6. Are additional drawers and storage accessories included?
The cart includes its specified rear storage basket and integrated components. Optional drawers, bins, trays, and other accessories are sold separately unless explicitly listed as included.
