Overview

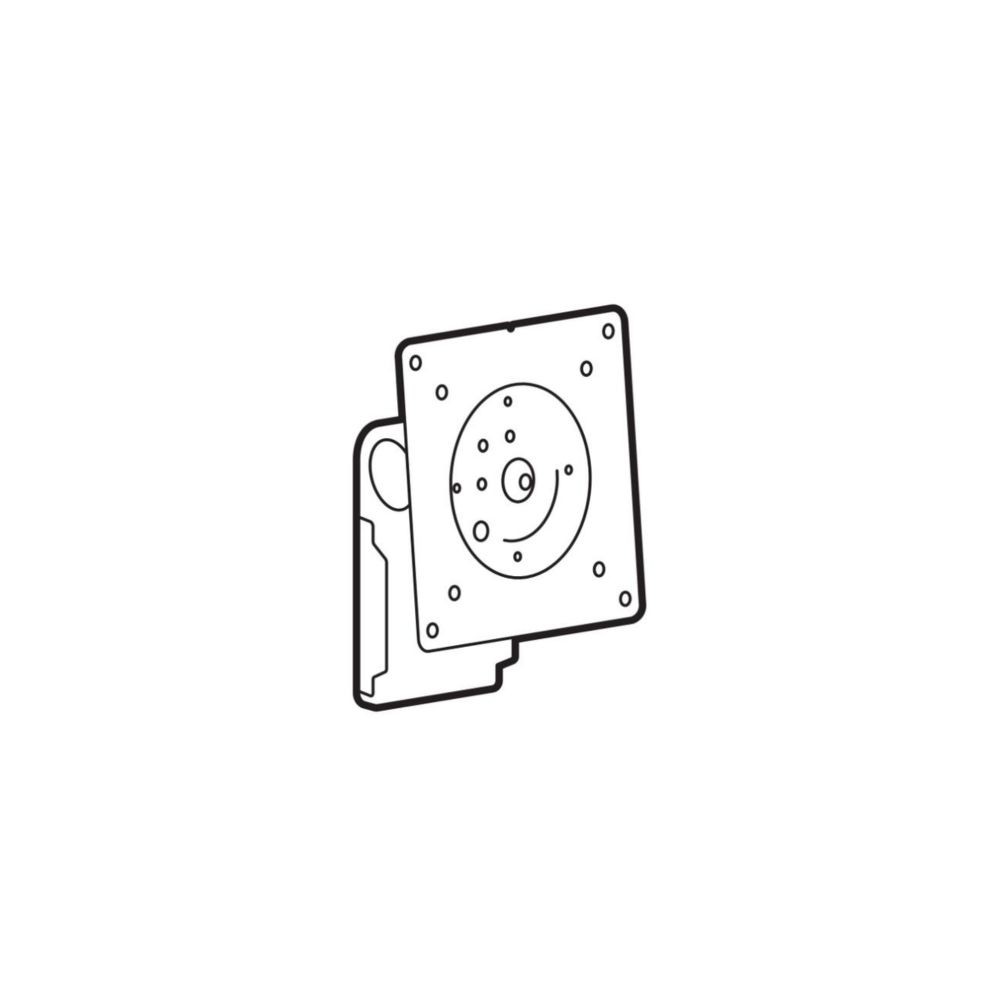

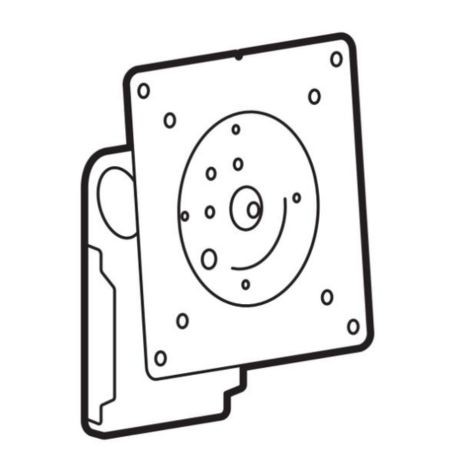

The Ergotron 98-738-632 LX Pro Dual Direct Display Pivot is a black replacement mounting component designed for the Ergotron LX Pro Dual Direct Arm. It provides the connection between a compatible monitor and the mounting arm, allowing the display to be attached, tilted, and rotated.
This replacement kit is intended for servicing an existing dual-monitor installation or preparing a compatible display for quicker replacement. It is a display pivot accessory, not a complete monitor arm.
Display Mounting and Adjustment
The pivot supports monitors with VESA 75 x 75 mm or 100 x 100 mm mounting patterns. Each display can be tilted individually, allowing the viewing angle of one monitor to be adjusted without requiring the same adjustment to the other display.
The pivot supports 360-degree display rotation. For a dual-monitor installation, each monitor must remain within the individual pivot's weight limit and the mounting arm's combined load capacity.
Key Features
- Replacement pivot: Replaces a compatible display pivot on the Ergotron LX Pro Dual Direct Arm.
- VESA compatibility: Supports 75 x 75 mm and 100 x 100 mm monitor mounting patterns.
- Individual tilt adjustment: Allows each mounted display to be tilted independently.
- 360-degree rotation: Supports display rotation for flexible screen orientation.
- Display replacement: Additional pivots can support a prepared-monitor replacement workflow when used with compatible mounting equipment.
Compatibility
The 98-738-632 is designed for the Ergotron LX Pro Dual Direct Arm. Ergotron distinguishes the LX Pro mounting system from its legacy LX products and other product families.
Before ordering, verify the exact model of the installed arm, the monitor's VESA mounting pattern, and the display's weight. The pivot's individual monitor capacity and the complete arm's combined capacity must both be respected.
Monitor dimensions also matter. A display that meets the weight limit may still be unsuitable if its width or thickness interferes with the adjacent monitor or the arm's range of movement.
Applications
- Replacing a damaged or faulty pivot on a compatible LX Pro Dual Direct Arm.
- Preparing a spare monitor for faster replacement in multi-monitor workstations.
- Restoring tilt and rotation adjustment on an existing compatible monitor mount.
- Maintaining dual-display workstations in offices and professional computing environments.
DC Supplies Product Note
Check both individual and combined monitor loads before installation. The pivot supports an individual display weighing up to 4.25 kg, while the LX Pro Dual Direct Arm has a combined capacity of up to 8.5 kg. The monitor's physical dimensions must also fit the available space in the dual-display arrangement.
Specifications
| Brand | Ergotron |
|---|---|
| Part Number / MPN | 98-738-632 |
| Product Type | Display mounting pivot replacement kit |
| Product Series | LX Pro |
| Product Name | LX Pro Dual Direct Pivot |
| Color | Black |
| Compatible Mounting System | Ergotron LX Pro Dual Direct Arm |
| Maximum Supported Screen Size | 27 inches |
| Individual Display Weight Capacity | 4.25 kg |
| Compatible Arm Combined Load Capacity | 8.5 kg maximum for two displays |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| VESA Standard | VESA FDMI MIS-D, 100/75, C |
| Display Tilt | 13 degrees backward and 17 degrees forward |
| Display Rotation | 360 degrees |
| Maximum Display Width | 63.8 cm for a display 4.8 cm thick; 63 cm for a display 6.6 cm thick |
| Package Contents | Display pivot and attachment hardware |
| UPC / GTIN | 0698833092998 |
| Manufacturer Warranty | 10 years, subject to applicable warranty terms |
Frequently Asked Questions
Which monitor arm is compatible with the 98-738-632?
This pivot is designed for the Ergotron LX Pro Dual Direct Arm. Do not assume compatibility with legacy LX arms or other mounting systems.
What is the maximum weight for an individual monitor?
The maximum individual display weight is 4.25 kg. The total weight of both monitors must also remain within the compatible arm's combined capacity of 8.5 kg.
Which VESA mounting patterns does the pivot support?
The pivot supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns. Check the monitor's mounting-hole spacing before ordering.
Can the display be rotated and tilted?
Yes. The pivot supports 360-degree rotation and individual tilt adjustment of 13 degrees backward and 17 degrees forward.
Does this product include the complete dual-monitor arm?
No. The package contents are identified as a display pivot and attachment hardware. The complete LX Pro Dual Direct Arm and monitors are not included as part of this replacement pivot kit.
Can this pivot be used to replace a monitor quickly?
Additional pivots can be used to prepare compatible spare monitors for a faster replacement workflow. Verify that the replacement display meets the mounting, weight, and physical clearance requirements.
