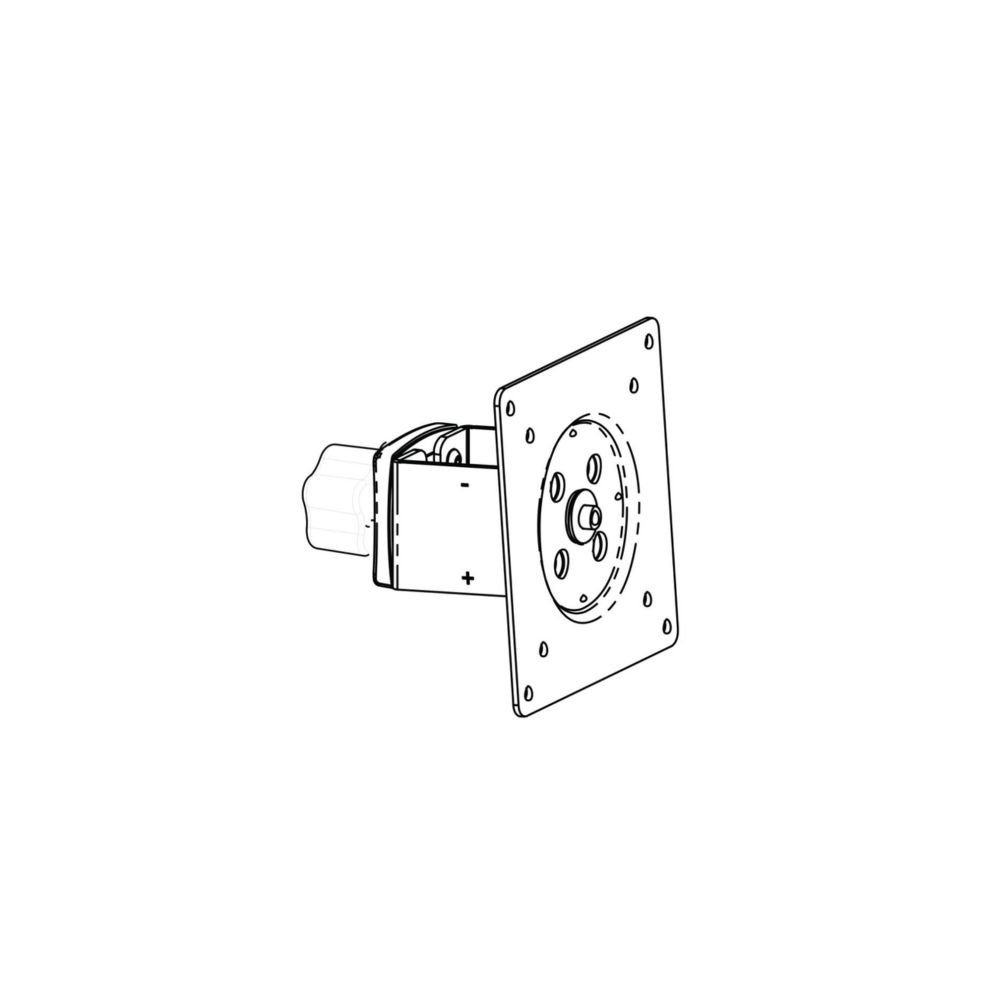

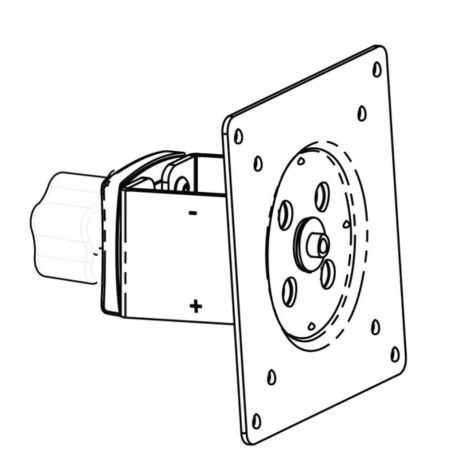

The Ergotron 47-100-009 DS100 Sliding Display Bracket is a monitor-mounting component designed for compatible Ergotron DS100 monitor support systems. It connects a display to a DS100 crossbar or crossbar extender, providing a stable mounting interface for professional workstation and multi-monitor installations.
The sliding design allows the display to be positioned along the crossbar, helping users align screen edges and configure their workspace. Its 360° rotation capability supports flexible display orientation, while compatibility with standard VESA mounting patterns makes it suitable for a range of monitors.
Key Features
- DS100 crossbar compatibility: Connects a compatible monitor to an Ergotron DS100 crossbar or crossbar extender.
- Sliding positioning: Allows the display to slide along the crossbar for convenient screen alignment.
- 360° rotation: Supports display rotation for flexible screen orientation.
- Standard VESA mounting: Compatible with 75 × 75 mm and 100 × 100 mm VESA mounting patterns.
- Durable construction: Designed to provide a stable monitor connection in compatible DS100 configurations.
Flexible Multi-Monitor Configuration
The DS100 Sliding Display Bracket helps users customize monitor placement across compatible DS100 crossbars. Sliding adjustment makes it easier to align displays side by side, while rotation supports different viewing orientations.
The bracket supports displays weighing up to 31 lb (14.1 kg), with a recommended maximum display size of 30 inches. Actual monitor size suitability depends on the complete DS100 stand configuration, screen dimensions, and system balance requirements.
Compatibility and Installation
This bracket attaches to a compatible Ergotron DS100 crossbar or crossbar extender. It is a mounting component rather than a complete monitor stand, pole, or crossbar assembly.
Before ordering, confirm that your monitor uses a supported VESA mounting pattern and falls within the bracket's weight capacity. Also verify the compatibility of the existing DS100 crossbar and the balance requirements of the complete monitor configuration.
DC Supplies Product Note
The Ergotron 47-100-009 is a standalone sliding display bracket for compatible DS100 systems. A compatible crossbar or crossbar extender and any other required mounting components must be available separately unless explicitly included with your purchase.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 47-100-009 |
|---|
| Product Type | Sliding display mounting bracket |
|---|
| Product Series | DS100 |
|---|
| Colour | Black |
|---|
| Supported Display Size | Up to 30 inches, subject to system configuration |
|---|
| Maximum Weight Capacity | 31 lb (14.1 kg) |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Rotation | 360° |
|---|
| Mounting Interface | Compatible DS100 crossbar or crossbar extender |
|---|
| Product Weight | Approximately 1 lb (0.45 kg) |
|---|
| Warranty | 5 years, subject to manufacturer terms |
|---|
Frequently Asked Questions
1. What is the Ergotron 47-100-009?
It is a DS100 Sliding Display Bracket that connects a monitor to a compatible DS100 crossbar or crossbar extender.
2. What is the maximum supported monitor weight?
The bracket supports displays weighing up to 31 lb (14.1 kg). The complete mounting system must also meet its balance and load requirements.
3. Which VESA mounting patterns are supported?
The bracket supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
4. Can the bracket slide along the crossbar?
Yes. Its sliding design allows the monitor to be repositioned along a compatible DS100 crossbar for screen alignment.
5. Does the bracket include a complete monitor stand?
No. The 47-100-009 is a mounting component. A compatible DS100 crossbar and other required support components are separate unless specifically included in the purchase.
6. Can it be used as the centre bracket in a three-monitor setup?
Ergotron specifies that this bracket cannot serve as the centre display bracket when three displays are attached to the crossbar. Check the DS100 configuration documentation when planning a multi-monitor arrangement.
