Detailed Specifications

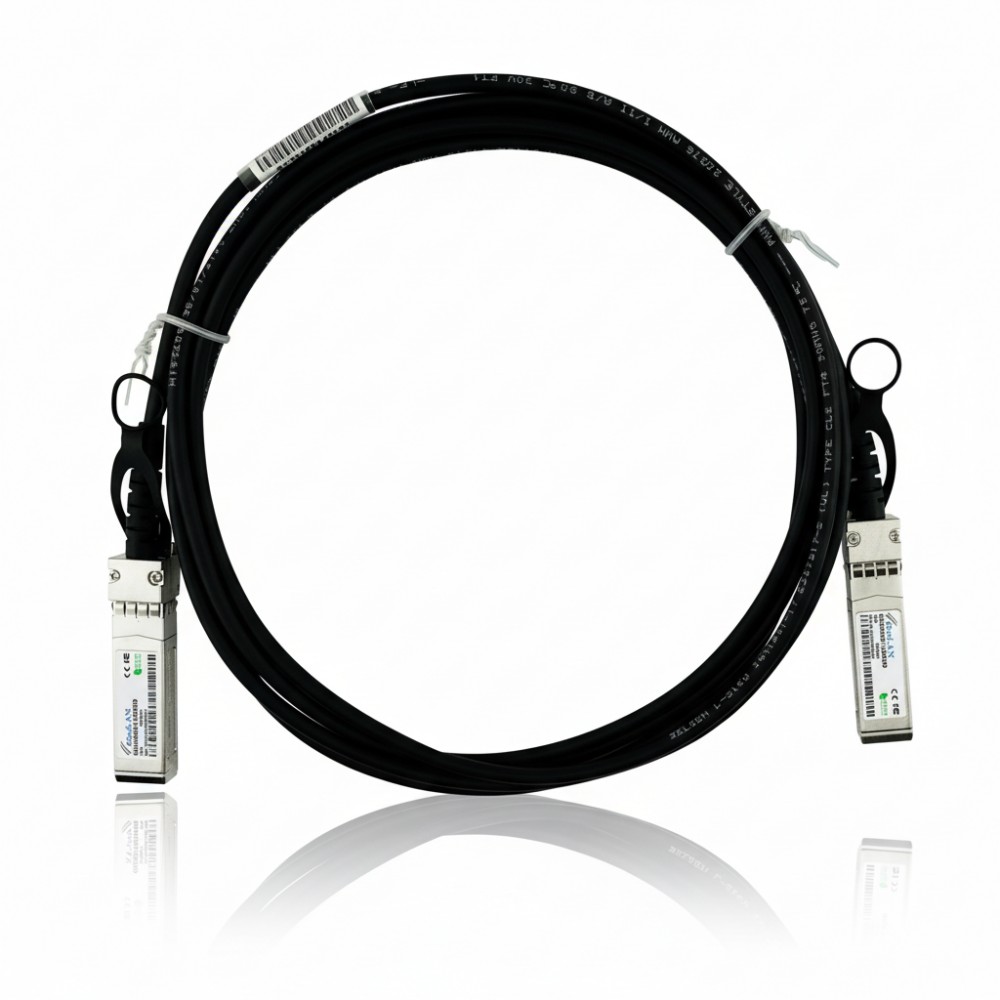

HP JD096B - Direct Attach Copper Cable SFP+ 1.2 m
Overview :
The HP JD096B is a 1.2-metre direct-attach copper (DAC) cable designed for engineers connecting two SFP+ ports at 10 Gb/s in a data-centre or switching environment. It addresses the need for low-latency, short-reach interconnects between top-of-rack switches or between a switch and a storage chassis. The cable supports 10 Gigabit Ethernet (10GBase-CU) and is intended for use in high-density server racks, aggregation layers or campus distribution where fibre might be over-engineering or cost-prohibitive. Since it is a passive twinax copper assembly, there is no active electronics in-line; this simplifies deployment and reduces power. The cable integrates seamlessly with SFP+ ports on compatible HP (now HPE) and other vendor switches that accept MSA-compliant SFP+ direct-attach cables, making it a practical choice for fixed-length short-reach links within racks or across adjacent racks.
Key Features :
10 Gb/s data rate for high-bandwidth server links
SFP+ to SFP+ twinax copper interface, 1.2 m length
Passive cable (no active components) for simplified deployment
30 AWG wire gauge with PVC (OFNR) jacket for rack use
Supports operating temperature from 0 °C to 70 °C for standard racks
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | JD096B |
| Product Type | SFP+ to SFP+ passive DAC cable |
| Data Rate | 10 Gb/s |
| Cable Length | 1.2 m (3.93 ft) |
| Wire Gauge | 30 AWG |
| Connector Type | SFP+ to SFP+ |
| Cable Jacket Material | PVC (OFNR) |
| Minimum Bend Radius | 23 mm (≈ 0.90 in) |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Compatible Protocols | 10GBase-CU, Fibre Channel, FCoE |
| Impedance | 100 Ω twinax |
| Supply Voltage | 3.3 V |
| Passive/Active | Passive cable |
| Form Factor | Twinax copper, SFP+ modules side |
