Overview

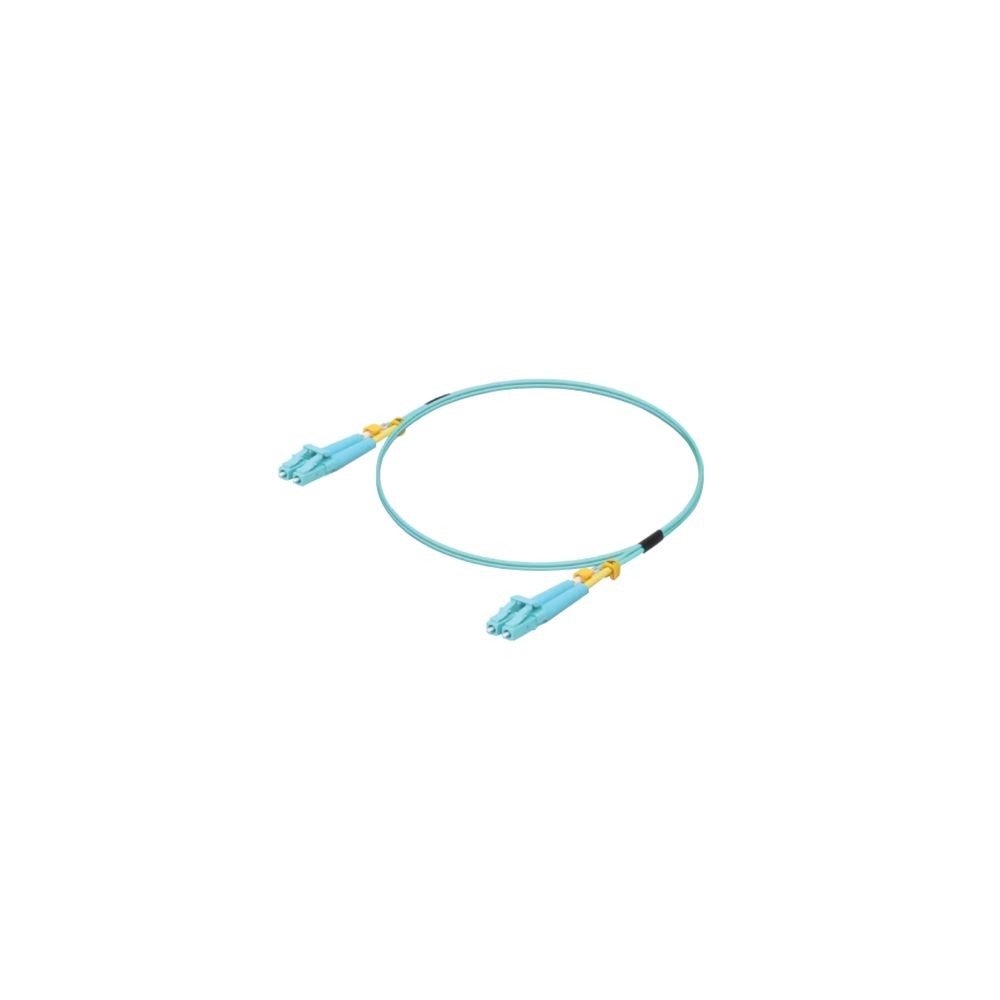

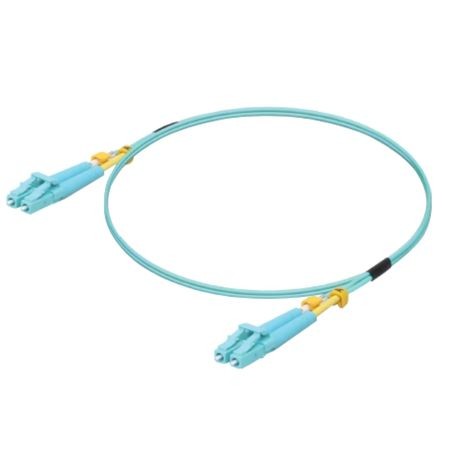

The Ubiquiti UACC-OFC-MM-1M is a 1-meter UniFi multimode fiber patch cable designed for short-distance optical network connections. It uses duplex OM3 fiber with LC/UPC connectors and supports data rates up to 10 Gbps.
Optical Construction
The cable uses 50/125 µm OM3 multimode fiber with a PVC jacket and aqua color. It is terminated with LC/UPC connectors at both ends and supports 850 nm and 1310 nm wavelengths.
Optical Performance
The UACC-OFC-MM-1M has an insertion loss of up to 0.3 dB, return loss of at least 50 dB, and repeatability of up to 0.1 dB. The cable is specified for up to 1,000 mating cycles.
Key Features
- 1-meter duplex OM3 multimode fiber cable
- LC/UPC connectors on both ends
- 50/125 µm fiber specification
- Supports data rates up to 10 Gbps
- 2.0 mm PVC jacket with aqua finish
Applications
The UACC-OFC-MM-1M is suitable for short fiber connections between switches, servers, optical transceivers, patch panels, and other network equipment using compatible LC multimode optical interfaces.
DC Supplies Product Note
This is a duplex multimode fiber cable with LC/UPC termination. Connected optical modules should support OM3 multimode fiber and compatible LC/UPC interfaces.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-MM-1M |
| Product Type | Fiber Optic Patch Cable |
| Series | UniFi |
| Cable Length | 1 m (3.28 ft) |
| Fiber Type | Multimode, Duplex |
| Fiber Category | OM3 |
| Core / Cladding | 50/125 µm |
| Connector Type | LC/UPC to LC/UPC |
| Data Rate | Up to 10 Gbps |
| Wavelengths | 850 / 1310 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | 1,000 mating cycles |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Jacket Outer Diameter | 2.0 mm |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| EAN | 8178820204358 |
FAQs
What type of fiber does the UACC-OFC-MM-1M use?
It uses duplex OM3 multimode fiber with a 50/125 µm specification.
What connectors are used?
The cable has LC/UPC connectors on both ends.
What is the cable length?
The UACC-OFC-MM-1M is 1 meter (3.28 feet) long.
Does it support 10 Gbps networking?
Yes. The cable is specified for data rates up to 10 Gbps.
What wavelengths are supported?
The cable supports 850 nm and 1310 nm wavelengths.
