Overview

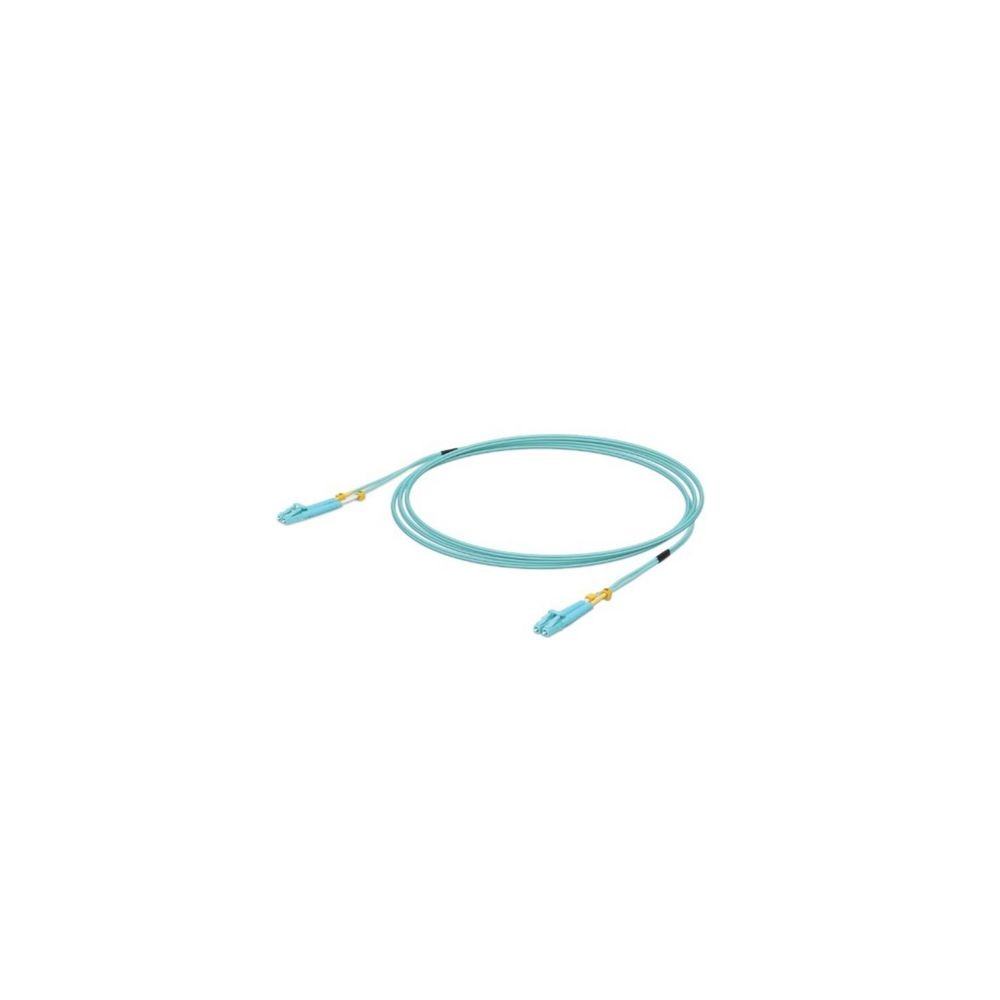

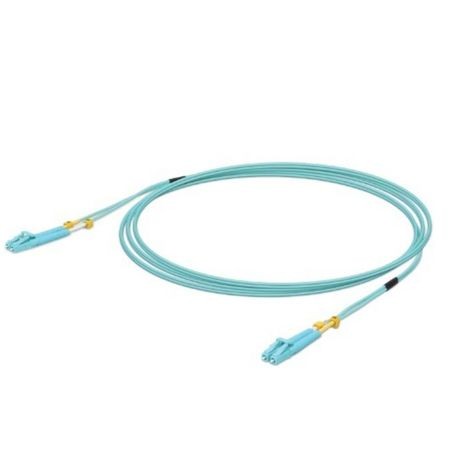

The Ubiquiti UACC-OFC-MM-3M is a 3-meter UniFi multimode fiber patch cable designed for short-distance optical network connections. It uses duplex OM3 fiber with LC/UPC connectors and supports data rates up to 10 Gbps.
Optical and Physical Construction
The cable uses 50/125 µm multimode OM3 fiber with a PVC jacket and aqua color. It supports 850 nm and 1310 nm wavelengths, with a 2.0 mm cable diameter and LC/UPC termination at both ends.
Optical Performance
UACC-OFC-MM-3M provides an insertion loss of up to 0.3 dB and return loss of at least 50 dB. The cable supports repeatability of up to 0.1 dB and durability of at least 1,000 mating cycles.
Key Features
- 3-meter duplex OM3 multimode fiber cable
- LC/UPC connectors on both ends
- 50/125 µm core/cladding specification
- Supports data rates up to 10 Gbps
- 2.0 mm PVC jacket with aqua finish
Applications
The UACC-OFC-MM-3M is suitable for short-distance fiber interconnects between SFP/SFP+ equipped switches, servers, optical transceivers, patch panels, and other compatible network equipment in racks and structured cabling environments.
DC Supplies Product Note
This cable uses duplex LC/UPC termination and OM3 multimode fiber. The connected optical modules or ports should therefore support compatible multimode fiber and LC/UPC connectivity.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-OFC-MM-3M |
| Product Type | Fiber Optic Patch Cable |
| Series | UniFi |
| Cable Length | 3 m (9.84 ft) |
| Fiber Type | Multimode, Duplex |
| Fiber Category | OM3 |
| Core / Cladding | 50/125 µm |
| Connector Type | LC/UPC to LC/UPC |
| Data Rate | Up to 10 Gbps |
| Wavelengths | 850 / 1310 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≥ 1,000 mating cycles |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Cable Diameter | 2.0 mm |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
FAQs
What type of fiber is used in the UACC-OFC-MM-3M?
It uses duplex OM3 multimode fiber with a 50/125 µm core/cladding specification.
What connectors does this cable use?
It has LC/UPC connectors on both ends.
What is the cable length?
The cable is 3 meters (9.84 feet) long.
Does it support 10 Gbps networking?
Yes. The UACC-OFC-MM-3M is specified for data rates up to 10 Gbps.
What wavelengths are supported?
The cable supports 850 nm and 1310 nm wavelengths.
