Overview

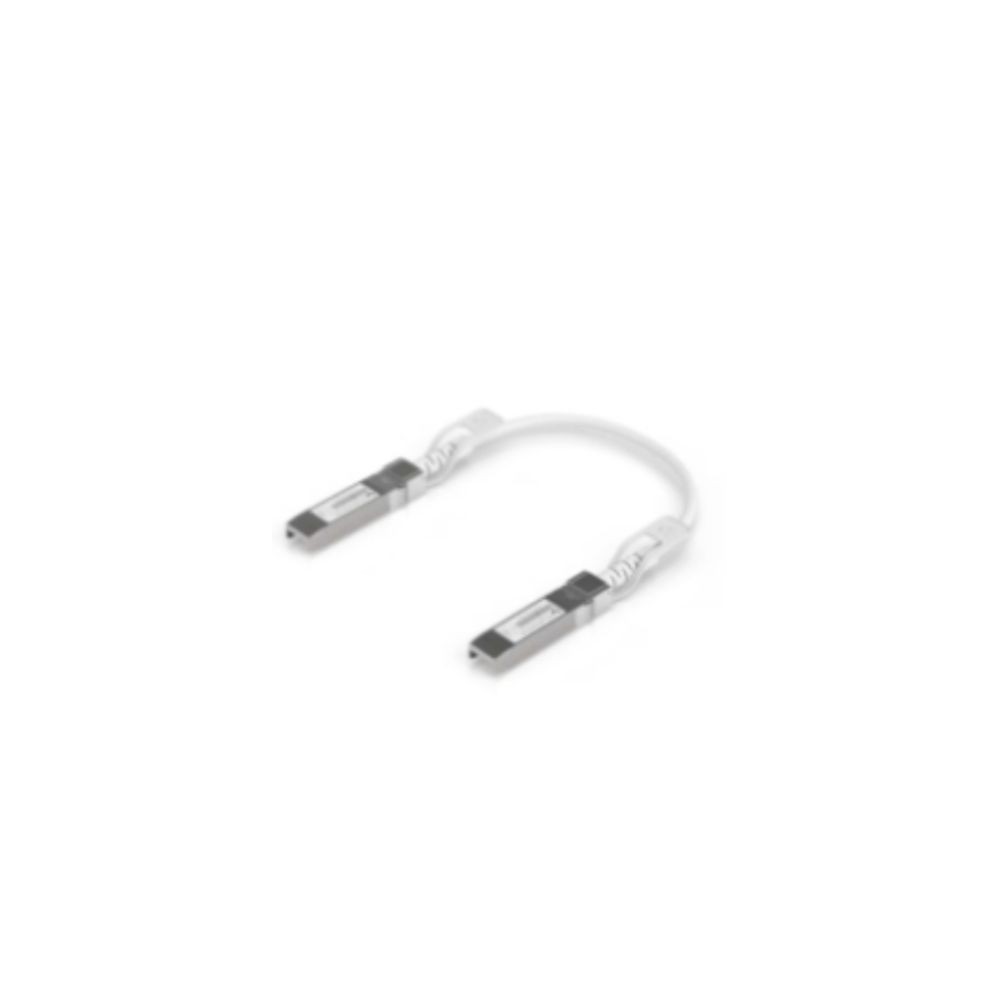

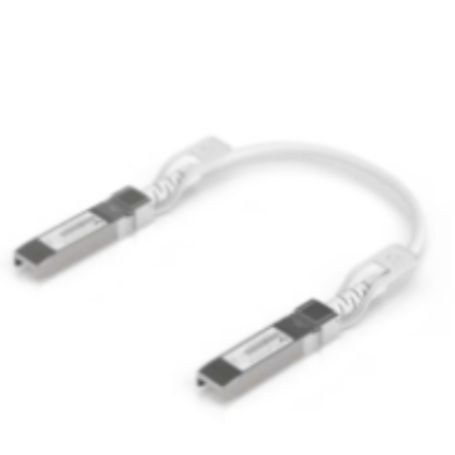

The Ubiquiti UACC-Uplink-SFP28-0.15M-10 is a 10-pack of 0.15 m UniFi Uplink Cables designed for short, high-speed interconnections between compatible networking devices. Each cable uses SFP28-to-SFP28 connectors and supports 25 Gbps, 10 Gbps, and 1 Gbps data rates.
Connectivity
The copper direct attach cable is compatible with SFP28, SFP+, and SFP interfaces. Ubiquiti's automatic link optimization is designed to optimize link speed and stability when interconnecting UniFi devices.
Cable Construction
Each 0.15 m cable uses copper conductors with a white PVC jacket. The jacket has a 4.5 mm outer diameter and a minimum bend radius of 23 mm, allowing short interconnections between adjacent rack-mounted networking equipment.
Key Features
- 10-pack of 0.15 m SFP28 uplink cables
- Supports 25, 10, and 1 Gbps data rates
- SFP28-to-SFP28 connectors
- Compatible with SFP28, SFP+, and SFP interfaces
- Automatic link optimization for compatible UniFi interconnections
Applications
The UACC-Uplink-SFP28-0.15M-10 is intended for short-distance connections between switches, aggregation equipment, servers, and other networking devices equipped with compatible SFP interfaces. The 0.15 m length is suited to closely positioned equipment where minimal cable length is preferred.
DC Supplies Product Note
This SKU contains ten 0.15 m copper uplink cables. The short length and 23 mm minimum bend radius should be considered when planning cable routing between adjacent SFP-based network ports.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-Uplink-SFP28-0.15M-10 |
| Product Type | SFP28 Direct Attach Uplink Cable |
| Product Line | UniFi Uplink Cable |
| Pack Quantity | 10 |
| Cable Length | 0.15 m (0.5 ft) |
| Supported Data Rates | 25 / 10 / 1 Gbps |
| Connector Type | SFP28 to SFP28 |
| Interface Compatibility | SFP28, SFP+, SFP |
| Cable Type | Copper |
| Auto Link Optimization | Yes |
| Jacket Color | White |
| Jacket Material | PVC |
| Jacket Outer Diameter | 4.5 mm (0.18 in) |
| Minimum Bend Radius | 23 mm (0.9 in) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
FAQs
What data rates does the UACC-Uplink-SFP28-0.15M-10 support?
The cable supports 25 Gbps, 10 Gbps, and 1 Gbps data rates.
What connectors does this cable use?
Each cable has an SFP28 connector on both ends.
Can it connect to SFP+ and SFP ports?
Yes. Ubiquiti specifies compatibility with SFP28, SFP+, and SFP interfaces.
How many cables are included?
The UACC-Uplink-SFP28-0.15M-10 is supplied as a 10-pack of 0.15 m cables.
What is the minimum bend radius?
The specified minimum bend radius for the 0.15 m copper cable is 23 mm (0.9 in).
