Overview

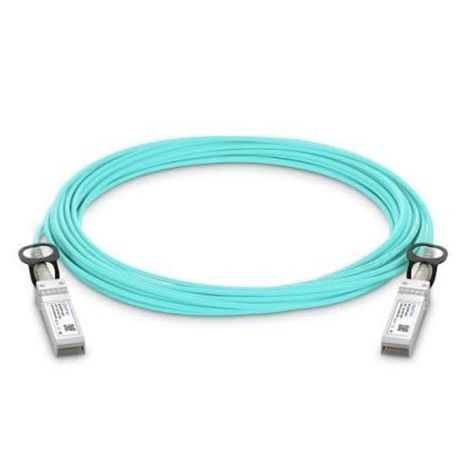

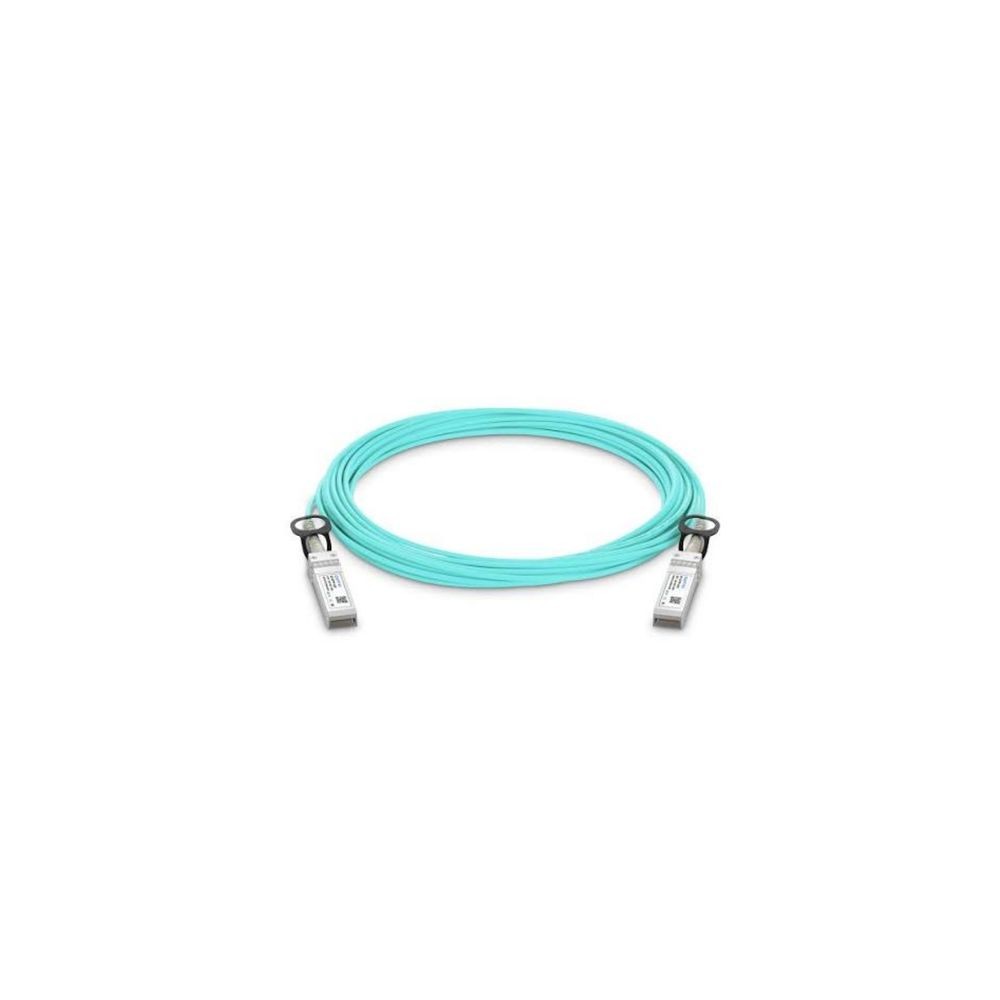

The Ubiquiti UACC-AOC-SFP10-20M is a 20-meter UniFi 10G Long-Range Direct Attach Cable designed for high-speed network connections between compatible SFP+ interfaces. It uses OM3 fiber and supports data rates up to 10Gbps.
Optical Connectivity
The cable uses SFP+ to SFP+ connectors and operates at an 850 nm wavelength. Ubiquiti specifies OM3 fiber construction and compatibility with SFP+ and SFP interfaces, supporting 10Gbps and 1Gbps data rates. :contentReference[oaicite:1]{index=1}
Cable Construction
The 20-meter cable uses an aqua PVC jacket with a 3.0 mm outer diameter. The minimum bend radius is 30 mm, providing a defined installation limit for routing the cable through network racks and structured cabling paths. :contentReference[oaicite:2]{index=2}
Key Features
- 20 m cable length
- Up to 10Gbps supported data rate
- OM3 multimode fiber construction
- SFP+ to SFP+ connectors
- 850 nm operating wavelength
Applications
The UACC-AOC-SFP10-20M is intended for 10Gbps network connections between compatible switches, aggregation equipment, servers, and other devices equipped with SFP+ or compatible SFP interfaces.
DC Supplies Product Note
The 20-meter length provides greater rack-to-rack and equipment-to-equipment reach than short direct-attach cables. Maintain the specified minimum 30 mm bend radius during installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AOC-SFP10-20M |
| Product Type | 10G Long-Range Direct Attach Cable |
| Product Line | UniFi |
| Cable Length | 20 m (65.6 ft) |
| Supported Data Rate | 10Gbps |
| Additional Supported Rate | 1Gbps |
| Fiber Type | OM3 |
| Connector Type | SFP+ to SFP+ |
| Interface Compatibility | SFP+, SFP |
| Wavelength | 850 nm |
| Jacket Color | Aqua |
| Jacket Material | PVC |
| Jacket Outer Diameter | 3.0 mm (0.12 in) |
| Minimum Bend Radius | 30 mm (1.18 in) |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Pack Quantity | Single unit |
FAQs
What is the UACC-AOC-SFP10-20M?
It is a 20-meter UniFi 10G Long-Range Direct Attach Cable with SFP+ to SFP+ connectors.
What data rate does it support?
The cable supports up to 10Gbps and is also compatible with 1Gbps connections. :contentReference[oaicite:3]{index=3}
What type of fiber does it use?
Ubiquiti specifies OM3 fiber with an 850 nm wavelength. :contentReference[oaicite:4]{index=4}
What interfaces are compatible with this cable?
It uses SFP+ connectors and is compatible with SFP+ and SFP interfaces. :contentReference[oaicite:5]{index=5}
What is the minimum bend radius?
The specified minimum bend radius is 30 mm (1.18 inches). :contentReference[oaicite:6]{index=6}
