Overview

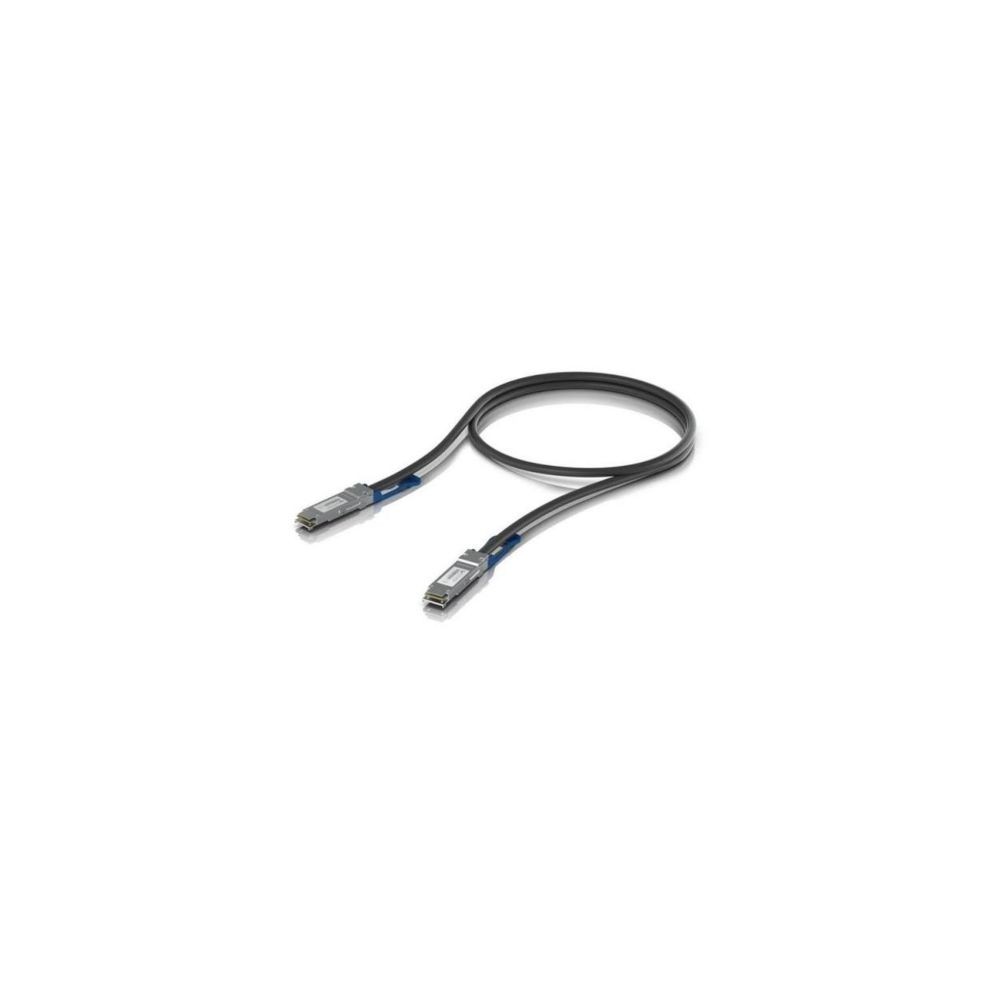

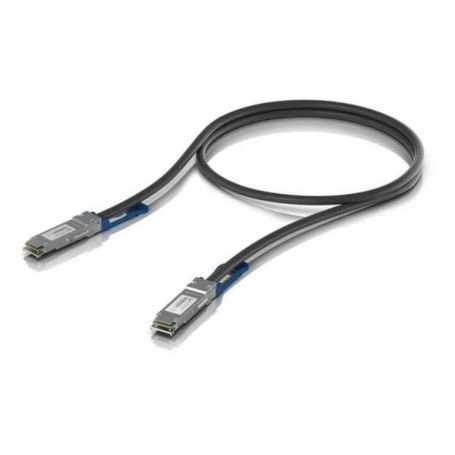

The Ubiquiti UACC-DAC-QSFP28-0.5M-10 is a 10-pack of 0.5-meter direct attach copper cables for high-speed network interconnections. Each cable uses QSFP28 connectors on both ends and supports 100 Gbps and 40 Gbps data rates.
Connectivity
Each cable provides a direct QSFP28-to-QSFP28 connection and is compatible with QSFP28 and QSFP+ interfaces. The copper construction is intended for short-distance equipment interconnections where compatible high-speed ports are located close together.
Cable Construction
Each 0.5-meter cable uses 30 AWG copper conductors and a black PVC jacket with a 7 mm outer diameter. Ubiquiti specifies a minimum bend radius of 37 mm for the 0.5-meter cable.
Key Features
- 10 individual 0.5-meter QSFP28 DAC cables
- 100 Gbps maximum supported data rate
- 40 Gbps supported data rate
- QSFP28-to-QSFP28 connector configuration
- 30 AWG copper construction with black PVC jacket
Applications
The UACC-DAC-QSFP28-0.5M-10 is suited to short high-speed links between compatible switches, aggregation equipment, servers, and other network devices equipped with QSFP28 or QSFP+ ports. The 10-pack is useful for deployments requiring multiple short interconnections.
DC Supplies Product Note
Because these are 0.5-meter copper DAC assemblies, they are intended for short equipment interconnections; verify that both connected devices support the required QSFP28 or QSFP+ interface and data rate.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-DAC-QSFP28-0.5M-10 |
|---|
| Product Type | 100G QSFP28 Direct Attach Copper Cable |
|---|
| Pack Quantity | 10 cables |
|---|
| Individual Cable Length | 0.5 m (1.6 ft) |
|---|
| Supported Data Rates | 100 / 40 Gbps |
|---|
| Maximum Data Rate | 100 Gbps |
|---|
| Connector Type | QSFP28 to QSFP28 |
|---|
| Interface Compatibility | QSFP28 and QSFP+ |
|---|
| Cable Type | Direct Attach Copper |
|---|
| Conductor | Copper |
|---|
| Wire Gauge | 30 AWG |
|---|
| Jacket Material | PVC |
|---|
| Jacket Color | Black |
|---|
| Jacket Outer Diameter | 7 mm |
|---|
| Minimum Bend Radius | 37 mm |
|---|
| Maximum Power Consumption | 2.5 W |
|---|
| Operating Temperature | 0 to 70°C (32 to 158°F) |
|---|
FAQs
How many cables are included?
This exact SKU contains 10 individual 0.5-meter QSFP28 direct attach copper cables.
What data rates does the cable support?
Ubiquiti specifies 100 Gbps and 40 Gbps supported data rates, with 100 Gbps as the maximum data rate.
What connectors does each cable have?
Each cable has a QSFP28 connector on both ends.
Is the cable compatible with QSFP+ interfaces?
Yes. Ubiquiti specifies compatibility with both QSFP28 and QSFP+ interfaces.
