Extreme Networks 10G DACA SFP3M 10G SFP DAC Cable View larger

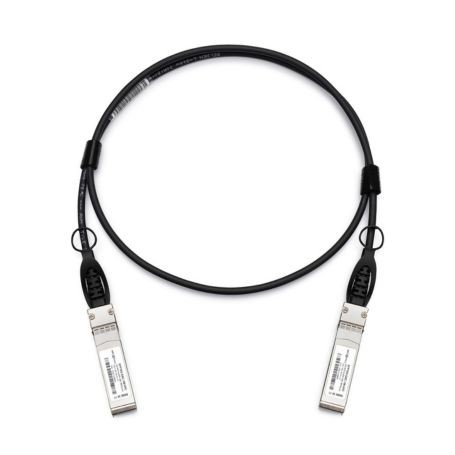

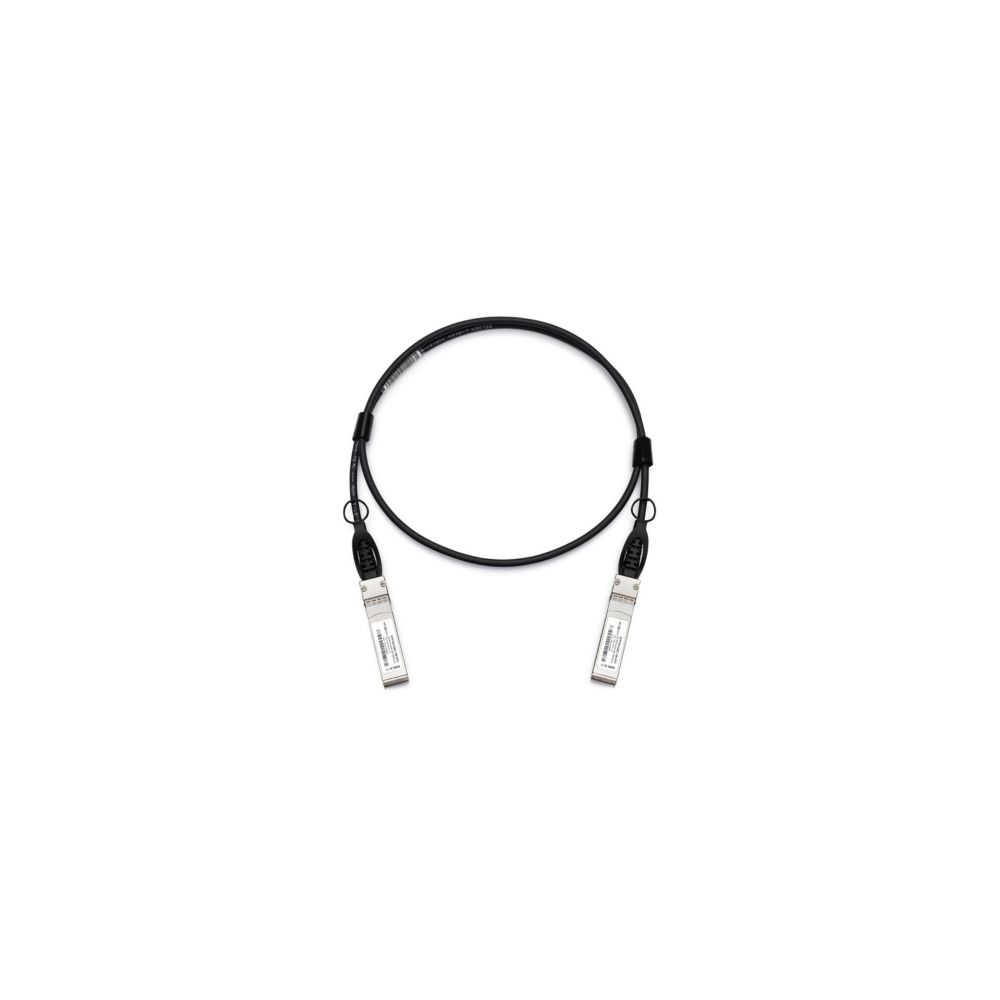

Extreme Networks 10G DACA SFP3M 10G SFP DAC Cable

10G-DACA-SFP3M

New

10G SFP+ Active Direct Attach Copper Cable (3m) for 10GbE interconnects

×




Detailed Specifications

Extreme Networks 10G-DACA-SFP3M – 10G SFP+ DAC Cable

Overview :

The 10G-DACA-SFP3M is an active 10Gbps SFP+ Direct Attach Copper (DAC) cable from Extreme Networks, designed for short-distance high-speed Ethernet connectivity inside racks and adjacent network equipment.

It provides a 3-meter (3m) SFP+ to SFP+ twinax copper link, used primarily between:

  • Switch-to-switch connections
  • Switch-to-server links
  • Top-of-rack (ToR) data center interconnects

This cable is commonly deployed in data centers and enterprise racks where optical transceivers are not required due to short reach and cost optimization.

It is NOT suitable for:

  • Long-distance runs (>10m)
  • Campus backbone fiber links
  • Outdoor or structured cabling beyond rack level

Key Features :

  • 10Gbps SFP+ to SFP+ active DAC for short-range connectivity
  • 3-meter twinax copper cable optimized for rack interconnects
  • Hot-pluggable design for live network deployment
  • Low power consumption (<0.5W typical) for energy efficiency
  • Fully compatible with Extreme Networks 10GbE SFP+ ports

Specifications :

Spec CategoryValue
BrandExtreme Networks
Part Number10G-DACA-SFP3M
Product TypeSFP+ Direct Attach Copper Cable
Data Rate10.3125 Gbps (10GbE)
Interface TypeSFP+ to SFP+
Cable TypeTwinax Copper (Active DAC)
Length3 meters (9.84 ft)
Wire Gauge30 AWG
Power Consumption< 0.5W
Voltage3.3V
Operating Temperature0°C to 70°C
ComplianceIEEE 802.3ae 10GBASE-CR, SFF-8431/8432
Connector TypeSFP+ MSA compliant connectors
Use CaseRack-level switch/server interconnect
