Detailed Specifications

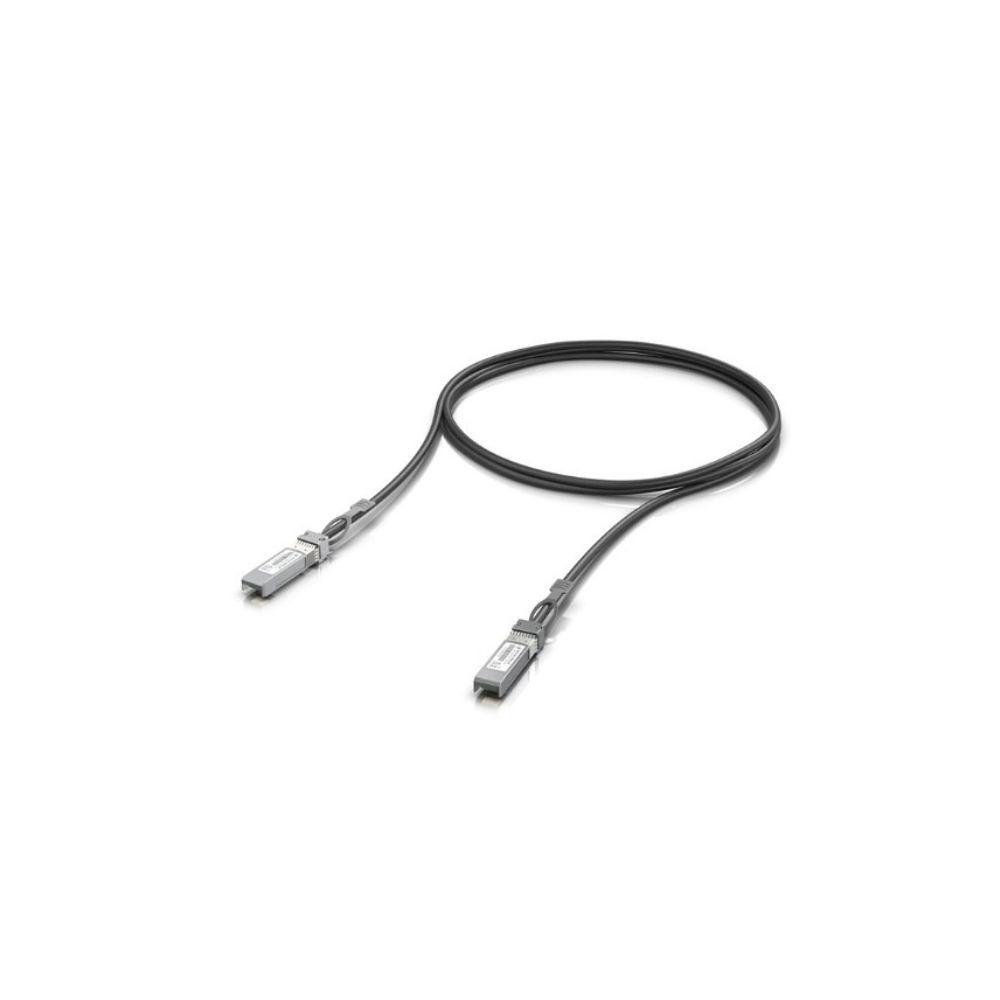

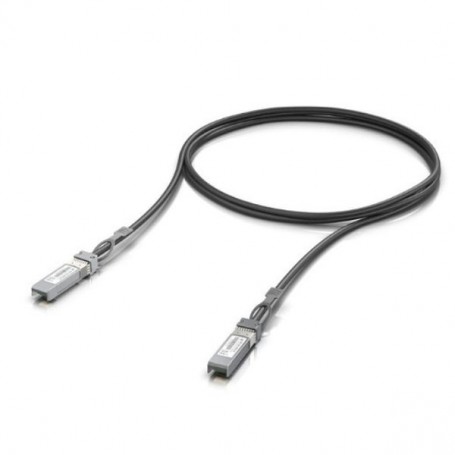

Ubiquiti UACC-DAC-SFP28-1M 25 G SFP28 Direct Attach Cable
Overview
The Ubiquiti UACC-DAC-SFP28-1M is a passive direct attach copper (DAC) cable with SFP28 connectors designed for short-range high-speed links in data center and enterprise networks. It supports multi-rate data up to 25 Gbps and is backward compatible with 10 Gbps and 1 Gbps where supported by the connected hardware. The twinax copper construction delivers low latency and minimal power draw for rack-to-rack or adjacent-rack connections between switches, routers, or servers with SFP28 interfaces. Deployment is plug-and-play with devices that accept SFP28, making it suitable for top-of-rack and short interconnects.
Key Features
Passive SFP28 to SFP28 twinax cable
Up to 25 Gbps multi-rate support
Backward compatible at 10 Gbps and 1 Gbps
1 m length for short interconnects
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-DAC-SFP28-1M |
| Product Type | Passive DAC Cable (SFP28 Direct Attach) |
| Connector Type | SFP28 male - SFP28 male |
| Supported Data Rates | 25 / 10 / 1 Gbps |
| Cable Length | 1 m (≈ 3.3 ft) |
| Cable Type | Twinax copper |
| AWG (Wire Gauge) | AWG 30 |
| Jacket Material | PVC |
| Jacket Color | Black |
| Operating Temperature | 0 °C to 70 °C |
| Minimum Bend Radius | ~24 mm |
