Detailed Specifications

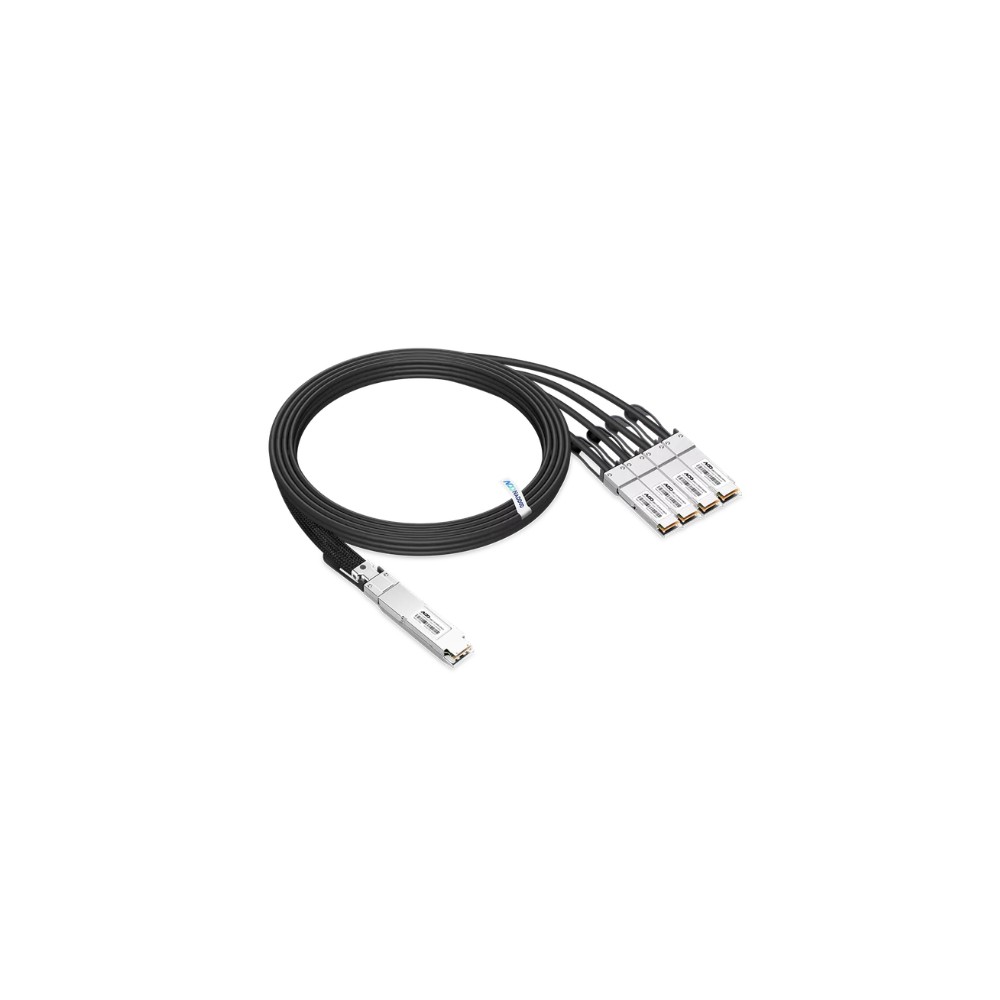

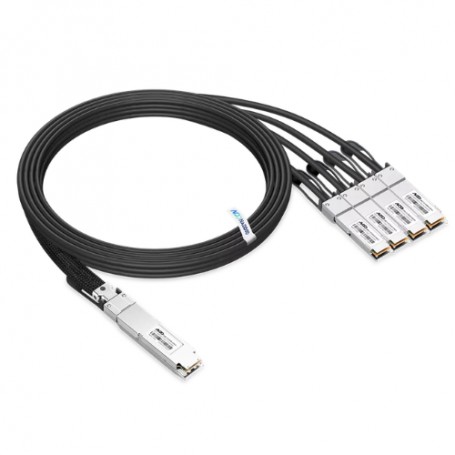

NVIDIA MCP7Y40-N001 800Gb OSFP Breakout DAC Cable
Overview :
The MCP7Y40-N001 is a passive direct-attach copper breakout cable used to split an 800 Gb/s InfiniBand NDR link into four 200 Gb/s connections. It enables high-density switch-to-adapter connectivity for Quantum-2 switches, ConnectX-7 adapters, and BlueField DPUs. The cable uses an OSFP finned-top connector on the switch side and four QSFP112 connectors on the device side for efficient airflow and thermal performance. It is deployed in high-performance computing and AI fabrics where short-reach, low-latency copper interconnects are required.
Key Features :
Splits 800Gb/s OSFP to 4×200Gb/s links
Passive DAC design for ultra-low latency
Finned-top OSFP for high-airflow cages
Designed for InfiniBand NDR fabrics
Technical Specifications :
| Specification | Details |
|---|
| Brand | NVIDIA |
| Part Number | MCP7Y40-N001 |
| Product Type | Passive DAC breakout cable |
| Aggregate Data Rate | 800 Gb/s (NDR) |
| Breakout Configuration | 1× OSFP to 4× QSFP112 |
| Per-Port Data Rate | 200 Gb/s |
| Cable Length | 1 m |
| Connector Type (Switch) | OSFP finned-top |
| Connector Type (Device) | QSFP112 flat-top |
| Cable Type | Passive copper direct attach |
| Wire Gauge | 30 AWG |
| Protocol Support | InfiniBand NDR |
| Operating Temperature | 0°C to 70°C |
| Minimum Bend Radius | 57 mm |
| Power Consumption | ≤0.1 W |
