Detailed Specifications

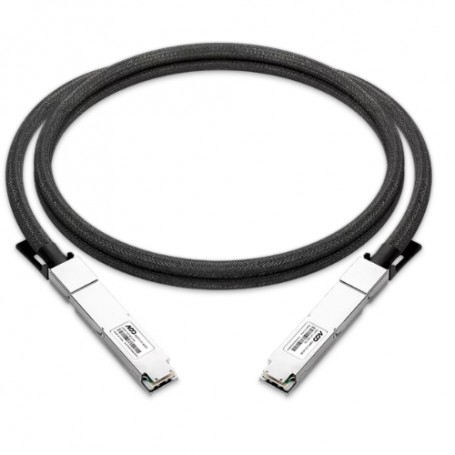

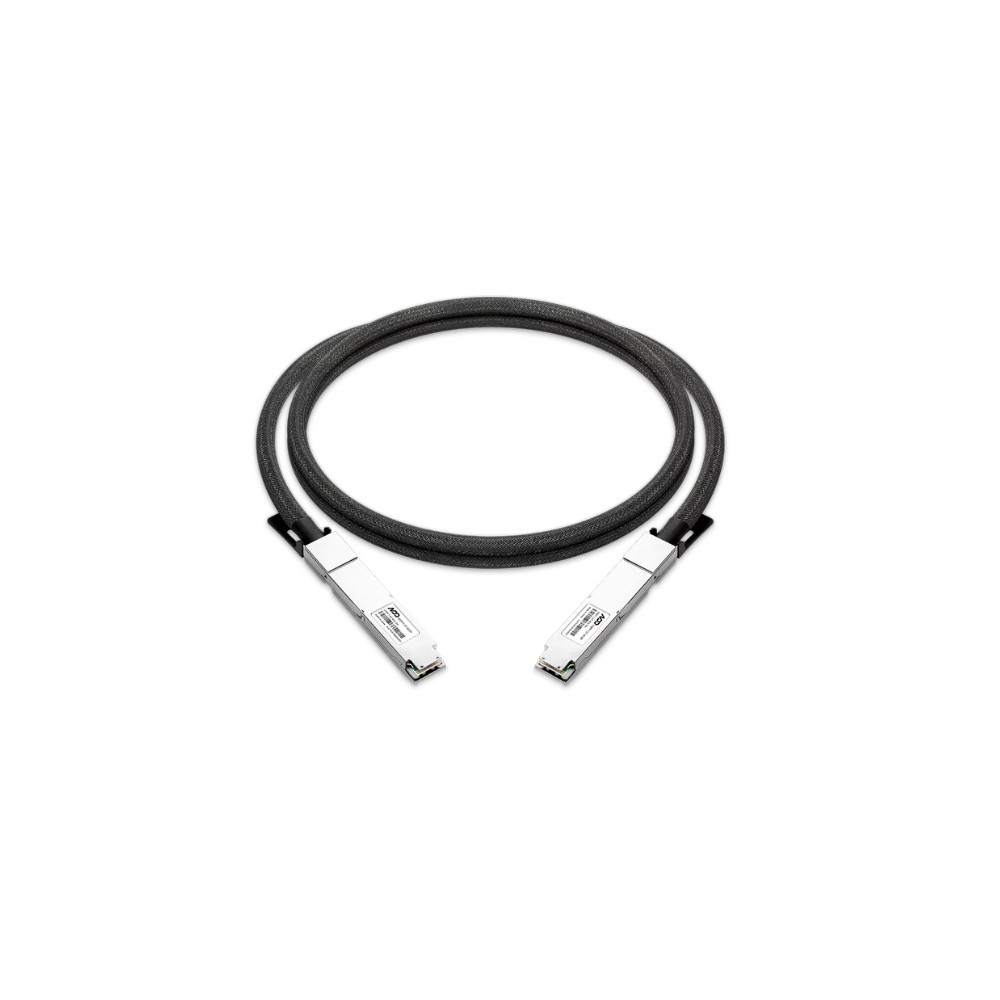

NVIDIA 980-9IAM5-00X001 Active Copper OSFP Cable
Overview :
The NVIDIA 980-9IAM5-00X001 is an active copper direct attach cable (ACC) designed for 1600 Gb/s interconnects in InfiniBand or Ethernet fabrics. It links two OSFP ports with integrated heatsinks and supports XDR-class signaling over high-speed copper pairs. The cable measures approximately 1.1 m and is suitable for connecting network switches or adapters in dense data center deployments. It's used in HPC clusters and enterprise networking to achieve low-latency, high-throughput connections without optical transceivers. Verified specifications are based on NVIDIA ordering and technical documentation.
Key Features :
Active copper OSFP-to-OSFP cable
1.1 m length with heat sinks
1600 Gb/s aggregate bandwidth
InfiniBand XDR compatible
Technical Specifications :
| Specification | Value |
|---|
| Brand | NVIDIA |
| Part Number | 980-9IAM5-00X001 |
| Product Type | Active Copper Cable |
| Cable Type | Active copper direct attach (ACC) |
| Connector Type A | OSFP224 with integrated heat sink |
| Connector Type B | OSFP224 with integrated heat sink |
| Maximum Aggregate Bandwidth | 1600 Gb/s |
| Length | 1.1 m |
| Modulation | 8×200 G-PAM4 signaling |
| Impedance | ~100 Ω |
| Cable Gauge | 26 AWG |
| Minimum Bend Radius | ~90 mm |
| Operating Temperature | 0 °C to 70 °C |
| Supported Protocols | InfiniBand XDR |
