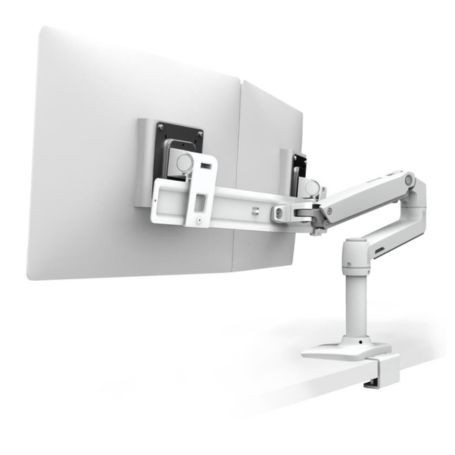

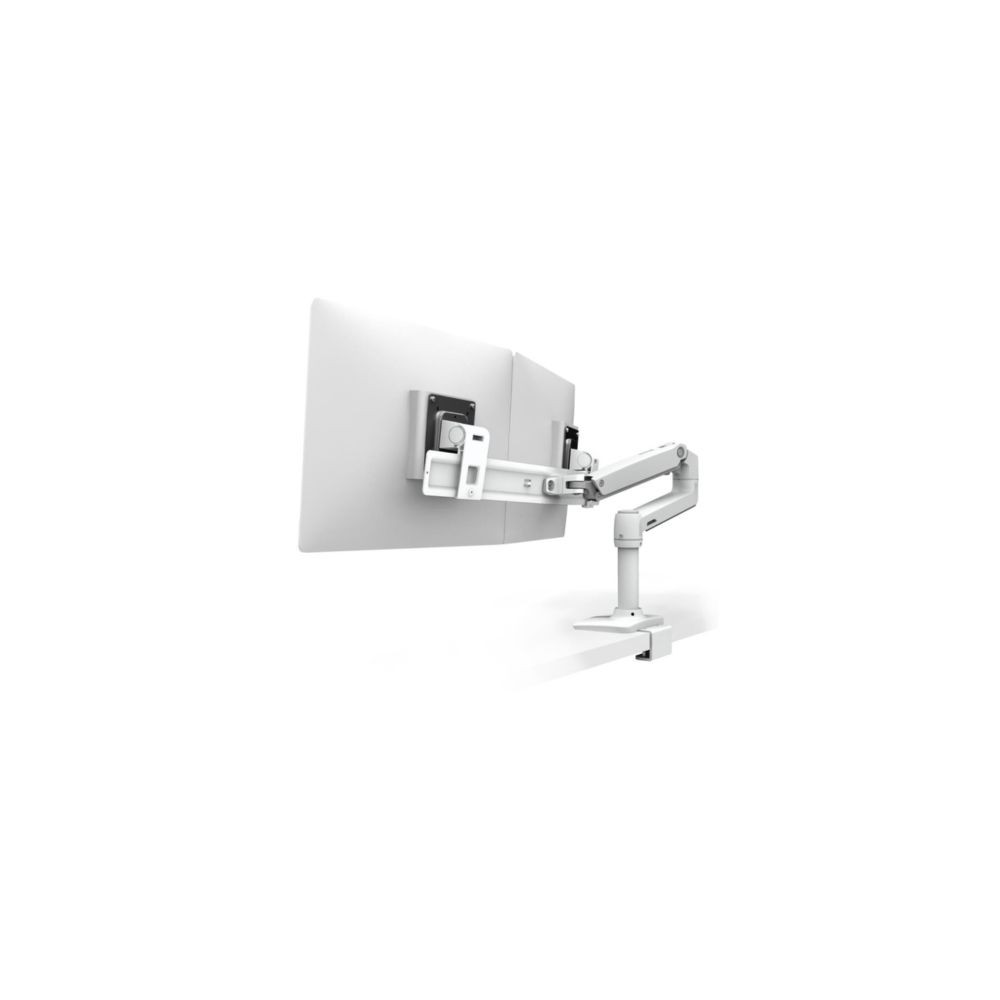

The Ergotron 45-522-216 LX Desk Dual Direct Arm is a white dual-monitor desk mount with an under-mount C-clamp designed for side-by-side displays. It supports two monitors up to 25 inches, with a maximum individual monitor weight of 11 lb (5 kg) and a combined capacity of 22 lb (10 kg).
Overview
The LX Dual Direct Arm uses a low-profile dual-monitor crossbar that allows both displays to be repositioned together while each monitor can be tilted independently. Its under-mount C-clamp attaches beneath the desk edge and requires less space than conventional mounting arrangements.
Dual-Monitor Configuration
The 45-522-216 is designed for two side-by-side monitors. Each display can weigh up to 11 lb (5 kg), provided the combined monitor weight does not exceed 22 lb (10 kg). The supported screen size is up to 25 inches per monitor.
Under-Mount C-Clamp
The included under-mount C-clamp attaches to worksurfaces from 0.5–1.26 inches (1.2–3.2 cm) thick. Its low-profile construction is designed for installations where space beneath the desk edge is limited.
Adjustability
The mount provides up to 13 inches (33 cm) of vertical lift, 30° of total tilt adjustment, 360° of pan, and 360° of monitor rotation. The arm can extend up to 24.3 inches (61.7 cm).
Key Features
- Supports two monitors up to 25 inches each.
- Supports up to 11 lb (5 kg) per monitor and 22 lb (10 kg) total.
- Includes an under-mount C-clamp for 0.5–1.26-inch worksurfaces.
- Provides up to 13 inches (33 cm) of vertical lift and 24.3 inches (61.7 cm) of extension.
- Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
VESA Compatibility
The 45-522-216 uses the VESA FDMI MIS-D, 100/75, C mounting interface and supports 100 x 100 mm and 75 x 75 mm mounting patterns.
Cable Management
Cable management routes monitor cables beneath the arm and within the extension, helping keep the cable path organized without adding unnecessary bulk around the desk edge.
Applications
The 45-522-216 is suited to dual-monitor workstations where side-by-side positioning, simultaneous monitor movement, and a compact under-desk-edge mounting arrangement are required.
DC Supplies Product Note
Check the desk-edge thickness before ordering: the exact 45-522-216 includes an under-mount C-clamp designed for 0.5–1.26-inch (1.2–3.2 cm) worksurfaces.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-522-216 |
| Product Type | LX Desk Dual Direct Arm with Under-Mount C-Clamp |
| Color | White |
| Monitor Configuration | Dual, side-by-side |
| Maximum Display Size | Up to 25 inches per monitor |
| Individual Monitor Capacity | 2–11 lb (1–5 kg) |
| Total Weight Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 30° total (15° forward / 15° backward) |
| Pan | 360° |
| Rotation | 360° |
| VESA Standard | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Maximum Extension | 24.3 inches (61.7 cm) |
| Desk Surface Thickness | 0.5–1.26 inches (1.2–3.2 cm) |
| Mounting Type | Under-mount C-clamp |
| Cable Management | Under-arm and within extension |
| Product Weight | 4.8 kg |
| Warranty | 10 years |
| GTIN | 00698833062793 |
Package Contents
The 45-522-216 includes the arm, extension, dual bow, two monitor pivots, under-mount C-clamp, and monitor attachment hardware.
Frequently Asked Questions
How many monitors can the 45-522-216 support?
The LX Dual Direct Arm supports two monitors in a side-by-side configuration.
What size monitors are supported?
Ergotron specifies displays up to 25 inches per monitor, subject to the stated weight limits.
What is the weight capacity?
Each monitor can weigh up to 11 lb (5 kg), with a combined maximum capacity of 22 lb (10 kg).
What desk thickness does the under-mount C-clamp support?
The included clamp is designed for worksurfaces from 0.5–1.26 inches (1.2–3.2 cm) thick.
Which VESA mounting patterns are supported?
The mount supports 75 x 75 mm and 100 x 100 mm VESA patterns.
Does the 45-522-216 include the under-mount clamp?
Yes. The under-mount C-clamp is part of the exact 45-522-216 configuration.
