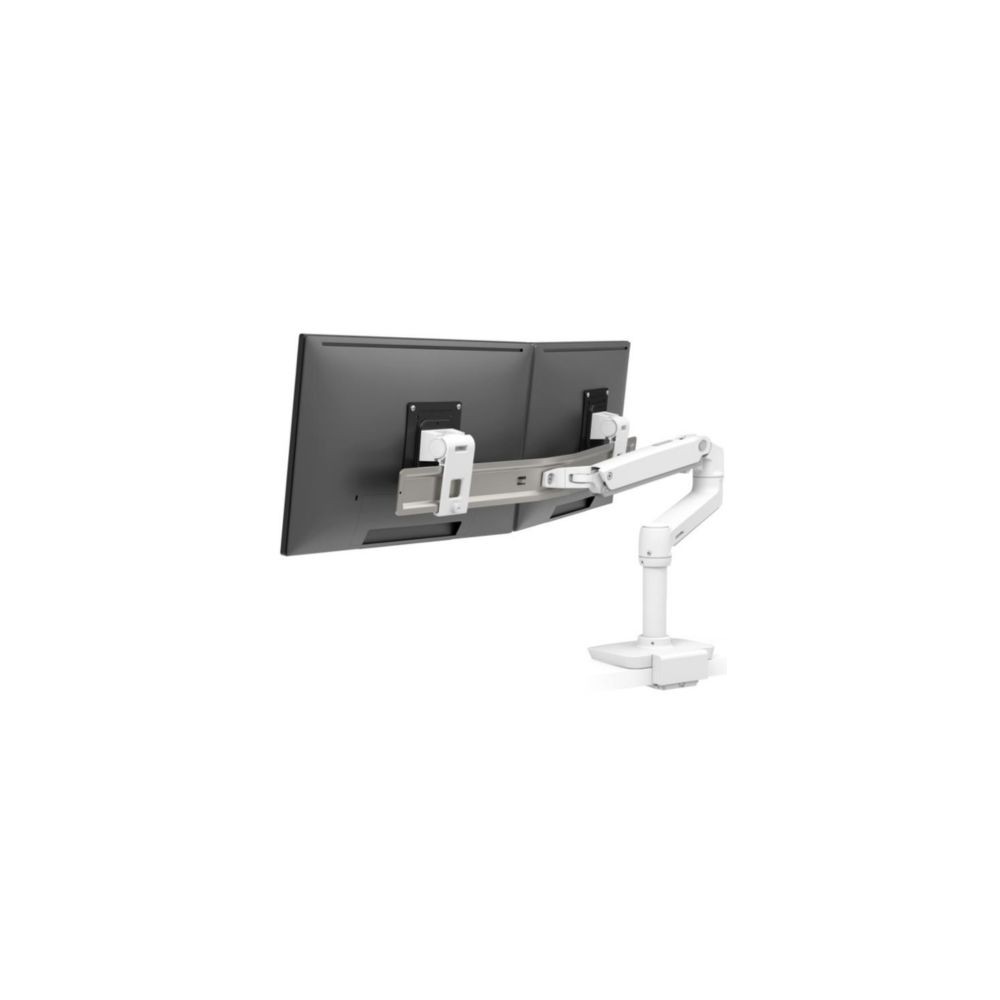

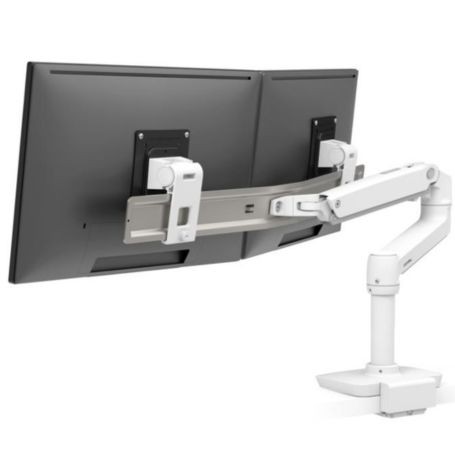

The Ergotron 45-627-216 LX Desk Dual Direct Arm is a white dual-monitor desk mount with a low-profile top-mount C-clamp designed for 25–35 mm thick worksurfaces. It supports two displays in a side-by-side configuration, with a combined capacity of up to 22 lb (10 kg).
Overview
The LX Dual Direct Arm provides coordinated positioning for two monitors while keeping the mounting hardware compact at the rear edge of the desk. Each monitor can weigh 2–11 lb (1–5 kg), subject to the overall 22 lb capacity.
Dual-Monitor Support
The mount supports two displays up to 25 inches each. The two-monitor configuration uses a direct dual-arm arrangement for side-by-side positioning and provides independent monitor adjustment for viewing alignment.
Low-Profile Desk Mount
The included low-profile top-mount C-clamp is designed for worksurfaces measuring 25–35 mm (0.98–1.38 inches) thick. The clamp configuration is part of this exact 45-627-216 model, rather than a separate standard clamp.
Adjustability
The arm provides 13 inches (33 cm) of lift, 30° of tilt adjustment, 360° of pan, and 360° of monitor rotation. The arm can extend up to 24.3 inches (61.7 cm) for positioning the displays over the workspace.
Key Features
- Supports two monitors up to 25 inches each.
- Supports 2–11 lb (1–5 kg) per monitor, with 22 lb (10 kg) total capacity.
- Includes a low-profile top-mount C-clamp for 25–35 mm worksurfaces.
- Provides 13 inches of vertical lift with 360° pan and rotation.
- Supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
VESA Compatibility
The 45-627-216 uses the VESA FDMI MIS-D, 100/75, C interface, supporting 100 x 100 mm and 75 x 75 mm mounting patterns.
Applications
This dual-monitor mount is suited to workstations requiring two side-by-side displays while retaining desk space and adjustable screen positioning. The low-profile clamp is specifically configured for 25–35 mm thick worksurfaces.
DC Supplies Product Note
Before ordering, check the desk thickness because this exact version uses a 25–35 mm low-profile top-mount C-clamp. Thinner worksurfaces require a different compatible clamp configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-627-216 |
| Product Type | LX Desk Dual Direct Arm with Low-Profile Top-Mount C-Clamp |
| Color | White |
| Monitor Configuration | Dual, side-by-side |
| Maximum Monitor Size | Up to 25 inches per display |
| Individual Monitor Capacity | 2–11 lb (1–5 kg) |
| Total Weight Capacity | 4–22 lb (1.8–10 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 30° |
| Pan | 360° |
| Rotation | 360° |
| VESA | FDMI MIS-D, 100/75, C |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Maximum Extension | 24.3 inches (61.7 cm) |
| Desk Surface Thickness | 25–35 mm (0.98–1.38 inches) |
| Mounting Type | Low-profile top-mount C-clamp |
| Product Weight | 10.9 lb (5 kg) |
| Warranty | 10 years |
| UPC | 00698833083545 |
Frequently Asked Questions
How many monitors can the Ergotron 45-627-216 support?
It supports two monitors in a side-by-side configuration.
What monitor size is supported?
Ergotron specifies displays up to 25 inches per monitor.
What is the weight capacity?
Each monitor can weigh 2–11 lb (1–5 kg), with a combined capacity of 22 lb (10 kg).
What desk thickness does the included clamp support?
The low-profile top-mount C-clamp is designed for worksurfaces 25–35 mm (0.98–1.38 inches) thick.
Which VESA patterns are supported?
The mount supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
Does the 45-627-216 include the low-profile clamp?
Yes. The exact 45-627-216 configuration is the LX Desk Dual Direct Arm with the low-profile top-mount C-clamp for 25–35 mm worksurfaces.
