Detailed Specifications

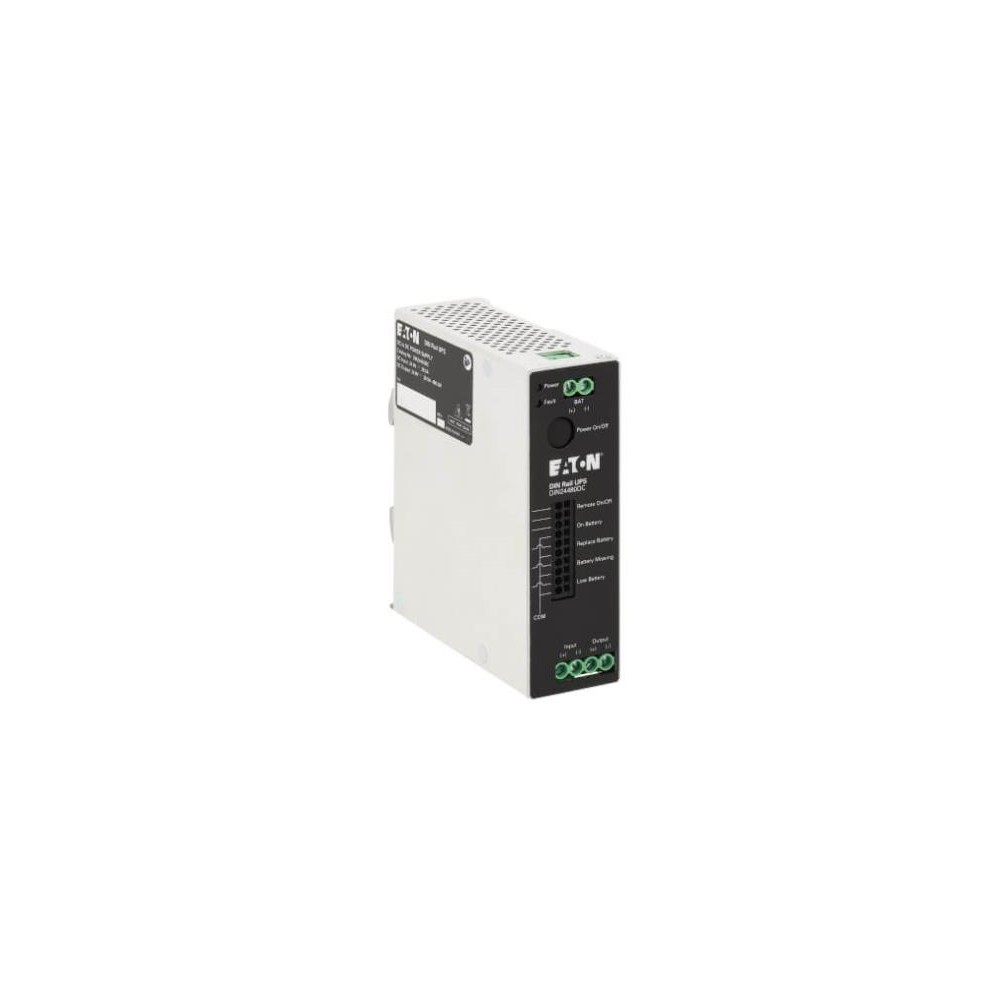

EATON DIN24480DC 480W 24V DC DIN Rail Industrial UPS Compatible Tripp Lite
Overview
The EATON DIN24480DC is a 480W, 24V DC DIN Rail Industrial UPS designed to provide battery backup and power protection for industrial control panels, automation equipment, networking, computing and other DC-powered applications. Eaton identifies it as a DIN-rail UPS with hardwired 24V DC input and output.
The unit uses a standby UPS topology, mounts directly to a 35 mm DIN rail, and requires the separately sold BPDIN24XL external battery module. Up to four BPDIN24XL modules can be used to extend runtime. With one battery module, Eaton specifies approximately 3 minutes at full 480W load and 10 minutes at half load.
Key Features
- 480W 24V DC industrial UPS
- DIN rail mounting design
- Hardwired 24V DC input and output
- Standby UPS topology
- Requires BPDIN24XL external battery module
- Up to four external battery modules supported
- 35 mm DIN rail compatible
- Operating temperature range of -15°C to 50°C
- Fanless design
- LED indicators for power and fault status
- Dry-contact communication for UPS/battery status
- Compact housing for industrial control panels and enclosures
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Part Number | DIN24480DC |
| Product Type | DIN Rail Industrial UPS |
| UPS Topology | Standby |
| Power Rating | 480W |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Input Connection | Hardwired (+, -) |
| Output Connection | Hardwired (+, -) |
| Battery Type | BPDIN24XL external battery module |
| Required Battery Module | BPDIN24XL |
| Maximum Battery Modules | 4 |
| Runtime at Full Load | 3 minutes with 1 BPDIN24XL |
| Runtime at Half Load | 10 minutes with 1 BPDIN24XL |
| Mounting | DIN Rail |
| DIN Rail Size | 35 mm |
| Operating Temperature | -15°C to 50°C / 5°F to 122°F |
| Relative Humidity | 0–95%, non-condensing |
| Noise Level | Less than 40 dB |
| Communication | 5 contact-closure connections |
| LED Indicators | Power, Fault |
| Compliance | FCC Class A, RoHS, ICES-003 |
| Certifications | CE, cURus |
