Detailed Specifications

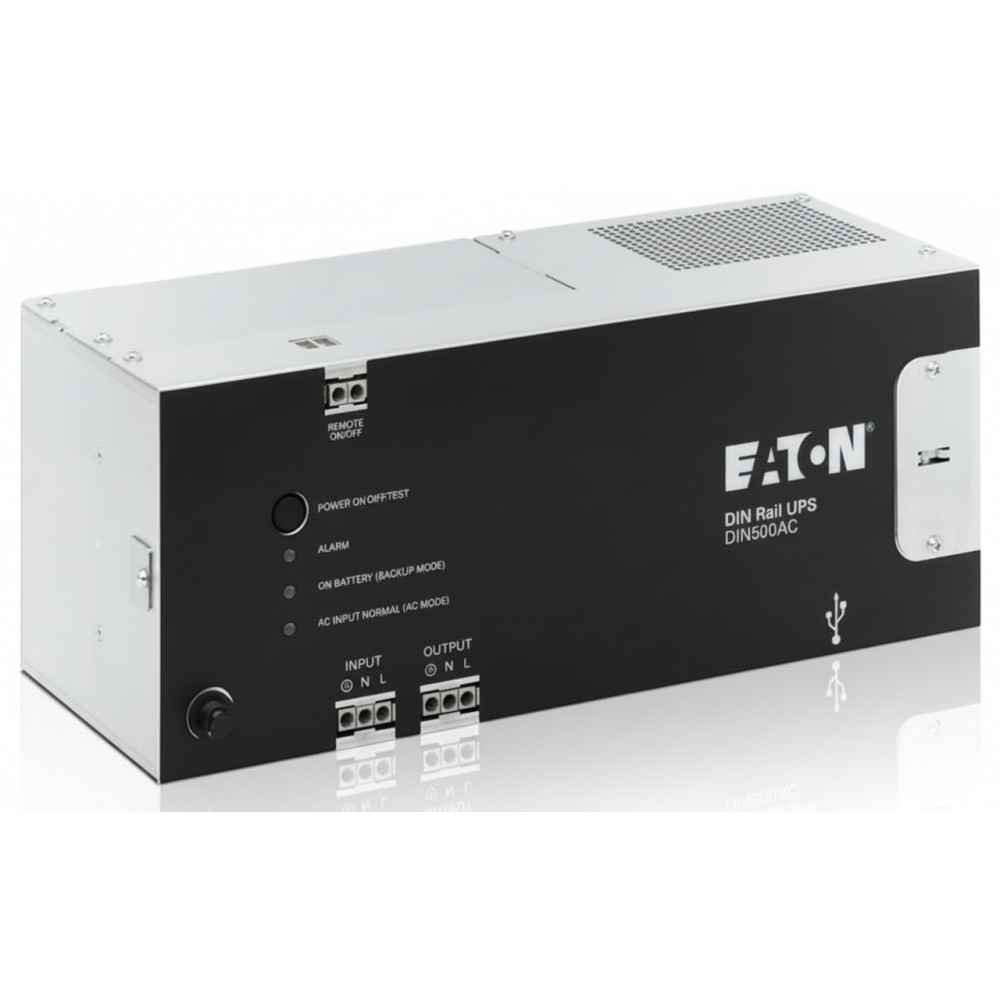

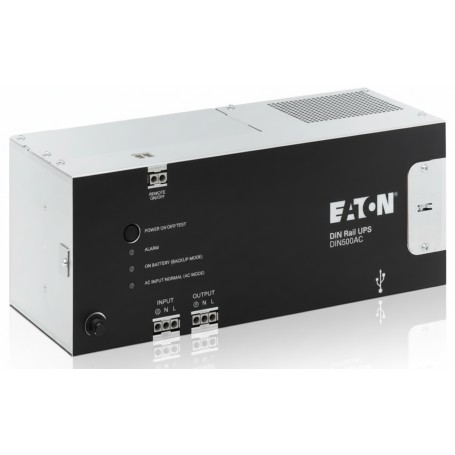

Eaton DIN500AC - DIN Rail Industrial UPS 500 VA
Overview :
The Eaton DIN500AC is a compact DIN-rail mount uninterruptible power supply (UPS) delivering 500 VA / 300 W of backup power for single-phase AC systems. It is designed for engineers and technicians tasked with securing control systems, network nodes or automation modules in industrial cabinets where mains disturbance or outages are a risk. With hardwired L, N, G inputs and outputs, the unit fits directly into 35 mm "top-hat" DIN rails and replaces or complements conventional panel-mounted protection. Its rated ambient operation of 0 °C to 50 °C ensures full capacity in many factory-floor, edge-computing, or machine-control environments. The UPS includes a USB HID communication interface for monitoring via Eaton's PowerAlert Office software and supports automatic restart upon mains recovery × a useful feature in remote or unattended enclosures.
Key Features :
500 VA / 300 W output rated at 120 V AC hardwired terminals
DIN-rail clamp mounting (35 mm) and fanless operation
Runtime of ~14 min at 150 W load, ~4 min at full 300 W load
Cold-start capability and automatic restart after mains restoration
USB-HID communications interface for monitoring and control
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | DIN500AC |
| Product Type | DIN-rail mount industrial AC UPS |
| Power Rating | 500 VA / 300 W |
| Input Voltage Range | 120 V AC (nominal) |
| Input Connection | Hardwire L, N, G |
| Output Voltage | 120 V AC nominal |
| Output Waveform | Sine wave (AC mode) / PWM sine (battery mode) |
| Runtime @ 150 W | Approx. 14 minutes |
| Runtime @ 300 W | Approx. 4 minutes |
| Dimensions (H × W × D) | 5.22 in × 12.28 in × 5.50 in |
| Weight | 11.57 lb |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Efficiency (100% load) | ~97% |
| Communication Interface | USB (HID) |
