Overview

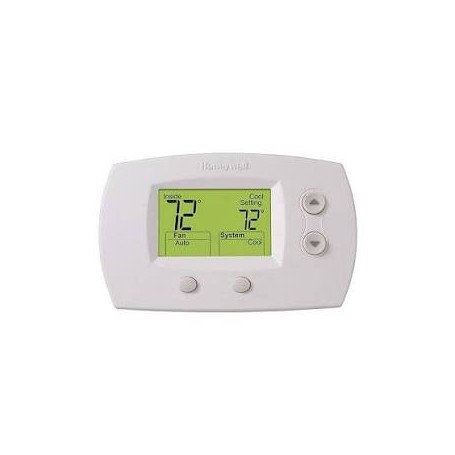

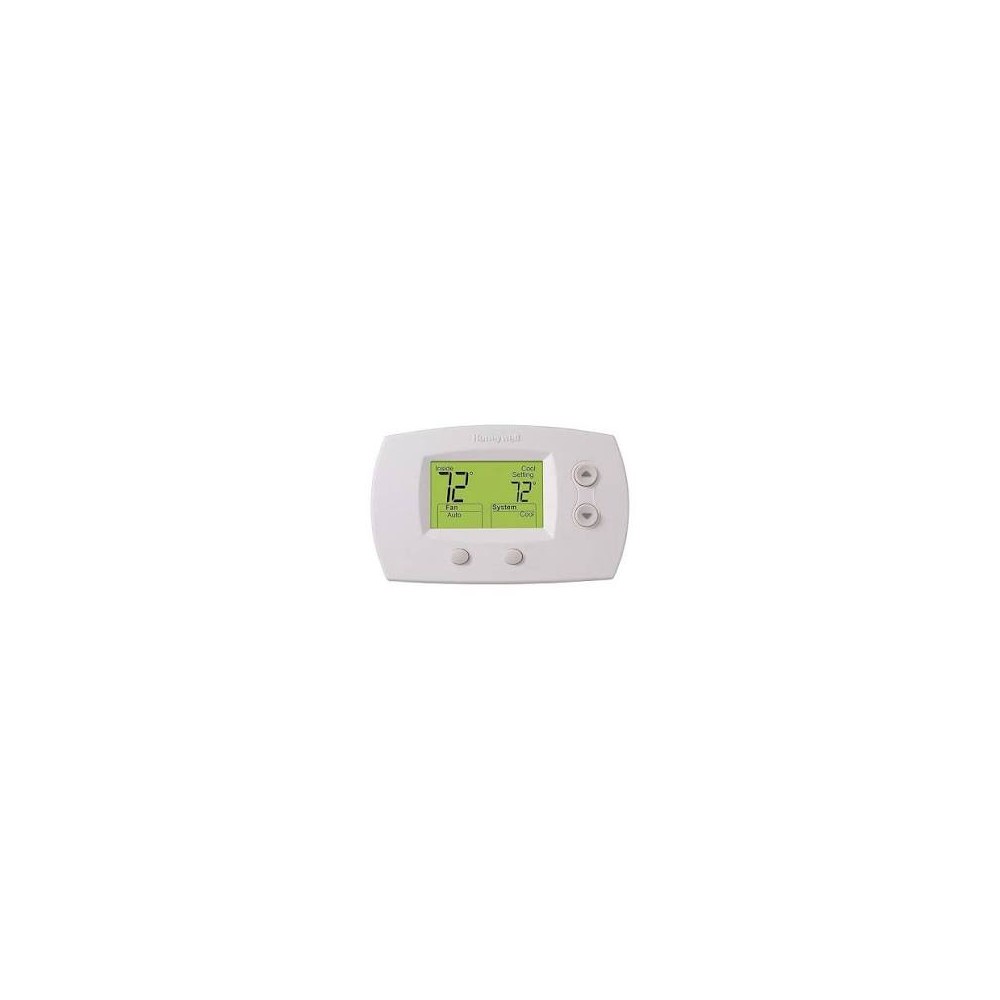

The Honeywell Home TH5220D1029 FocusPRO 5000 is a non-programmable digital thermostat for compatible residential heating and cooling systems. Its large backlit display shows room temperature and the temperature setting. Designed for wall mounting, it supports up to two heating and two cooling stages on conventional systems, and compatible heat pumps with up to two heating stages and one cooling stage.
Key Features
- Large Backlit Display: Displays room temperature and set temperature for convenient viewing.
- Non-Programmable Operation: Provides manual temperature control without scheduled heating and cooling programs.
- Multi-Stage Control: Supports up to 2 Heat/2 Cool conventional systems and up to 2 Heat/1 Cool heat pump systems.
- Dual Power Options: Can operate using batteries or compatible hardwired power.
- Temperature Accuracy: Specified control accuracy of ±1°F (±0.5°C).
- Flexible System Modes: Supports Heat, Cool, Auto, Off, and Emergency Heat modes where applicable.
- Horizontal Wall Mounting: Designed for standard wall-mounted thermostat installation.
System Compatibility
The TH5220D1029 is intended for compatible conventional heating and cooling equipment and heat pump systems. Application depends on the existing HVAC wiring, system stages, and equipment configuration. Verify terminal requirements and compatibility before installation.
Power and Electrical Specifications
The thermostat is designed for 20–30 VAC systems or compatible 750 mV heating applications. It supports battery or hardwired operation. Confirm the existing system's electrical configuration and terminal wiring against the manufacturer's installation instructions before connecting the thermostat.
Specifications
| Specification | Details |
|---|
| Brand | Honeywell Home |
| Part Number / MPN | TH5220D1029 |
| Product Type | Digital Thermostat |
| Series | FocusPRO 5000 |
| Thermostat Type | Non-programmable |
| Display | Large backlit LCD |
| Color | Premier White |
| Conventional System Support | Up to 2 Heat / 2 Cool |
| Heat Pump Support | Up to 2 Heat / 1 Cool |
| Power Options | Battery or hardwired |
| Electrical Rating | 20–30 VAC or 750 mV, depending on application |
| Temperature Accuracy | ±1°F (±0.5°C) |
| Heating Setpoint Range | 40°F to 90°F (4.5°C to 32°C) |
| Cooling Setpoint Range | 50°F to 99°F (10°C to 37°C) |
| Mounting | Horizontal wall mount |
| Connectivity | No Wi-Fi or smart-home integration |
| Product Dimensions | 5.8125 in. W × 1.5 in. D × 3.5625 in. H |
Frequently Asked Questions
Is the TH5220D1029 programmable?
No. It is a non-programmable thermostat operated through manual temperature and system-mode controls.
Does this thermostat support heat pumps?
Yes. It supports compatible heat pumps with up to two heating stages and one cooling stage. Confirm the wiring and equipment requirements before installation.
Does the TH5220D1029 connect to Wi-Fi?
No. This model does not provide built-in Wi-Fi or smart-home integration.
Can it control a two-stage heating and cooling system?
It supports up to two heating and two cooling stages on compatible conventional systems. Heat pump support has a different stage configuration.
What power does the thermostat require?
The specified electrical rating is 20–30 VAC or 750 mV for compatible applications. It can use battery power or compatible hardwired power.
DC Supplies Product Note
Confirm HVAC system type, stage count, wiring, and electrical requirements before ordering. This is a legacy model, and the manufacturer lists it as no longer available for purchase; check replacement options if a new installation is planned.
