Overview

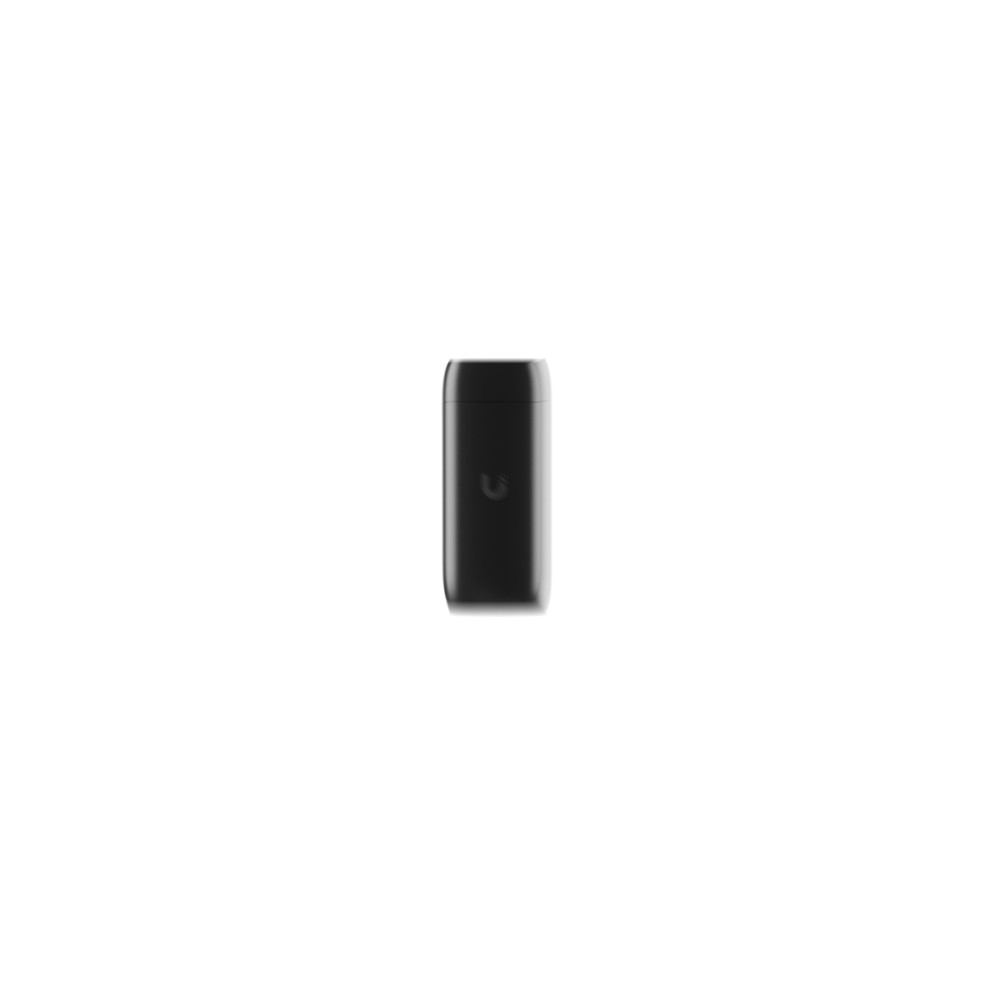

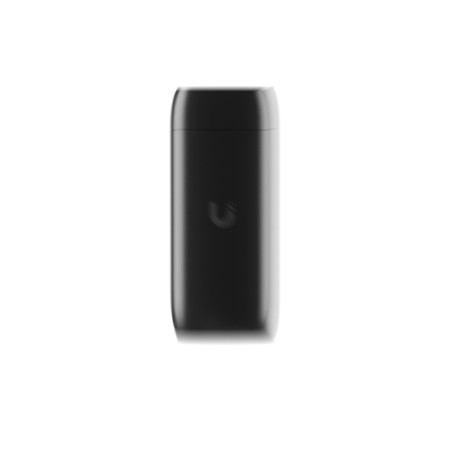

The Ubiquiti UC-Cast-Pro Display Cast Pro is a managed digital signage player designed to connect HDMI displays to UniFi Connect. It supports media content playback, web mode, USB-C peripheral support, and video output up to 4K. The device combines an octa-core processor, 8GB RAM, 32GB storage, dual-band Wi-Fi, and Gigabit Ethernet connectivity in a compact enclosure.
4K HDMI Display Output
The UC-Cast-Pro provides one HDMI output and supports video resolutions from 480p and 720p through 1080p up to 4K. This allows compatible displays to be used for digital signage and managed visual content through UniFi Connect.
Digital Signage and Web Mode
The Display Cast Pro supports managed media playback as well as Web Mode. This makes it suitable for displaying stored digital signage content and web-based visual experiences on a connected HDMI display.
Powerful Processing
The device uses an octa-core CPU consisting of two ARM Cortex-A78 cores and six ARM Cortex-A55 cores, together with an integrated Mali-G57 GPU. It provides 8GB of RAM and 32GB of internal storage for the Display Cast Pro platform.
Network Connectivity
The UC-Cast-Pro supports dual-band Wi-Fi using 802.11a/b/g/n/ac/ax standards, with 2.4GHz operation at 20/40MHz bandwidth and 5GHz operation at 20/40/80MHz bandwidth. A Gigabit Ethernet RJ45 interface is also provided and serves as the wired PoE power input.
UniFi Connect Management
The UC-Cast-Pro is managed through UniFi Connect. Ubiquiti specifies support for UniFi Connect Web and the UniFi Connect mobile applications for iOS and Android. Current listed management versions are UniFi Connect Web 3.14.6 and later and UniFi Connect mobile 2.18.1 and later.
Key Features
- 4K HDMI output for managed digital signage displays
- Web Mode and media content playback support
- Octa-core CPU with 8GB RAM and 32GB storage
- Dual-band Wi-Fi 6 and Gigabit Ethernet connectivity
- PoE or USB-C power options in a compact enclosure
DC Supplies Product Note
The UC-Cast-Pro can be powered through its Gigabit Ethernet connection using 48V DC PoE at 0.35A, or through USB-C at 5V DC and 3A. For installations using the USB-C power method, note that Ubiquiti states the USB-C power adapter is not included with the Display Cast Pro.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UC-Cast-Pro |
| Product Type | Digital Signage Player |
| Product Name | Display Cast Pro |
| Display Output | 1 × HDMI |
| Video Support | 480p, 720p, 1080p, 4K |
| Processor | Octa-core CPU: 2 × ARM Cortex-A78 + 6 × ARM Cortex-A55 |
| GPU | Integrated Mali-G57 |
| RAM | 8GB |
| Storage | 32GB |
| Ethernet | 1 × Gigabit RJ45 |
| Wi-Fi | 2.4GHz and 5GHz, 802.11a/b/g/n/ac/ax |
| Wi-Fi 2.4GHz Bandwidth | 20/40MHz |
| Wi-Fi 5GHz Bandwidth | 20/40/80MHz |
| USB | USB Type-C |
| Power Method | PoE or USB Type-C |
| PoE Power Input | 48V DC, 0.35A |
| USB-C Power Input | 5V DC, 3A |
| Management | UniFi Connect Web, iOS, Android |
| Mounting | Mount included; pole mounting supported |
| Pole Mount Diameter | 25–50mm |
| Dimensions Without Mount | 123 × 52 × 31mm |
| Dimensions With Mount | 125.1 × 56.3 × 40.8mm |
| Weight Without Mount | 240g |
| Weight With Mount | 260g |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 20–90% noncondensing |
Frequently Asked Questions
What is the Ubiquiti UC-Cast-Pro?
The UC-Cast-Pro is a managed digital signage player that connects an HDMI display to UniFi Connect for media playback and Web Mode.
Does the Display Cast Pro support 4K?
Yes. Ubiquiti specifies HDMI video support up to 4K.
How can the UC-Cast-Pro be powered?
It can be powered through PoE at 48V DC and 0.35A or through USB-C at 5V DC and 3A.
Does the UC-Cast-Pro include a USB-C power adapter?
No. Ubiquiti specifically states that the USB-C power adapter is not included.
Does the Display Cast Pro include an HDMI cable?
No. Ubiquiti states that the HDMI cable is not included.
